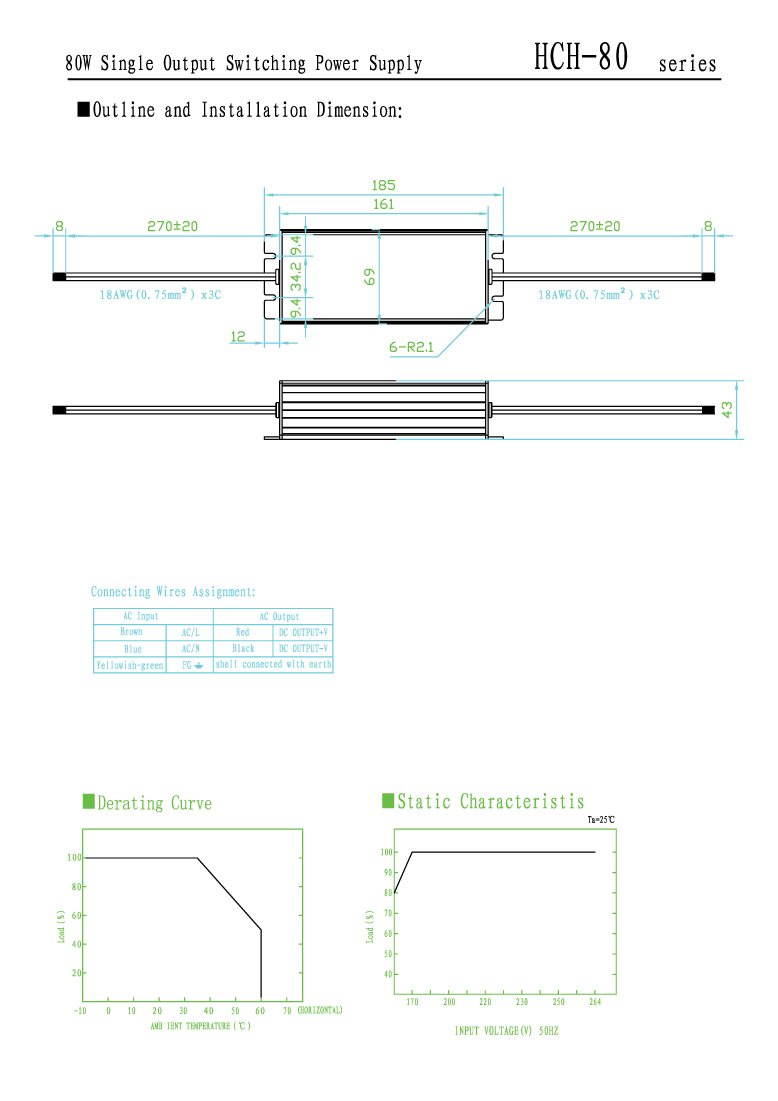

MODEL:HCH-80 Single Output Waterproof Power Supply

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/High temperature
Constant current model
Small size, light weight, high efficiency
Waterproof grade: IP67
Suitable for LED lighten and moving sign applications.
1 year warranty
Dimensions:185*69*43mm £¨L*W*H£©

MODEL

HCH-80-2800

HCH-80-2100

HCH-80-1400

Output

 Rated current
2800mA
2100mA
1400mA
DC voltage range
16~28V
25~38V
35~57V
Rated power
78.4W
79.8W
79.8W
Ripple & Noise
200mVp-p
200mVp-p
200mVp-p
Voltage Accuracy ¡À5%
Load Regulation ¡À2%

Setup, Rise, Hold time

600ms,30ms,24ms/220VAC

Input

Voltage Range

170¡«260VAC 47-63Hz£»238¡«370VDC

AC Current

1.1A/230VAC

Efficiency

85%

Inrush Current

Cold start current 50A/230VAC

Leakage Current

<0.5mA/240VAC

Protection

 Current limiting ¡À5% rated output current
Protection type: rated current limiting
High temperature

RTH¡Ý80¡æ, temperature protection start

Protection£ºoutput shutdown, recovers automatically after temperature become normal

Environment

Working Temp.& humidity

-20¡æ¡«+50¡æ; 20%¡«90 %RH (refer to the load derating curves)

Storage Temp.& Humidity

-30¡æ¡«+80¡æ£»10%¡«95 %RH non-condensing

Vibration

10¡«500Hz, 2G 10min./1 cycle,period for 60min, each along X, Y, Z axes

Safety

Withstand Voltage

I/P-O/P:1.5KVAC

Isolation Resistance

I/P-O/P:100M Ohms / 500VDC

Standards

Safety Standards, IP Grade

UL1310Class2 Ip67

EMC Standards

EN55022£¬CLASSB

Others

Dimension

185*69*43(L*W*H)

Packing

0.9kg/20pcs/19kg/0.026 CBM

Remark
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, voltage regulation and current regulation
