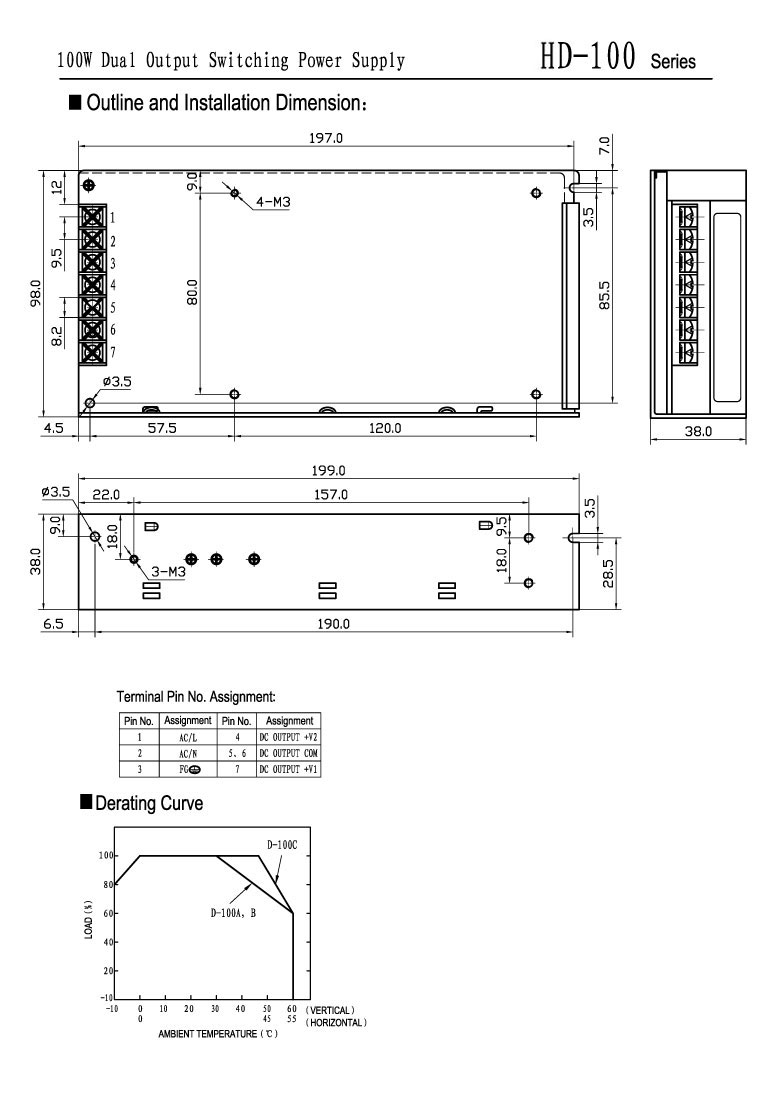

MODEL:HD-100 Dual Output Switching Power Supply

MODEL

HD-100A

HD-100B

HD-100C

CH1

CH2

CH1

CH2

CH1

CH2

OUTPUT

DC Voltage

5V

12V

5V

24V

12V

24V

Voltage Tolerance

±2%

±6%

±2%

±7%

±2%

±7%

Rated Current

15A

2A

15A

1A

4A

2A

Current Range

1-15A

0.3-2A

1-15A

0.2-1A

0.2-2A

0.2-2A

Rated Power

99W

99W

96W

Ripple & Noise

100mVp-p

120mVp-p

100mVp-p

100mVp-p

150mVp-p

150mVp-p

DC Adjustment Range

CH1：-5%，+10%

Setup, Rise, Hold Time

200ms,50ms,20ms at full load

INPUT

Voltage Range

85～132 VAC / 180～264VAC 47～63 Hz； Selected by switch 255～370VDC

AC Current

2.4A/115 V 1.2A/ 230 V

Efficiency

73%

Inrush Current

Cold start 30A/115V 60A/230V

Leakage Current

＜1mA/240VAC

PROTECTION

Over Load

105%～165%

Protection: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp., Humidity

-10℃～+50℃；20%～90 %RH

Storage Temp., Humidity

-20℃～+85℃；10%～95 %RH

Vibration

10～500Hz，2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012

OTHERS

Weight

0.62Kg

Packing

30pcs/19Kg/0.99CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
