Features:
High efficiency,high reliability, low cost
AC input range selected by switch
Protection: Short circuit/Over load
Cooling by free air convection
LED indicator for power on
Fixed switching frequency at 23KHz
1 year warranty

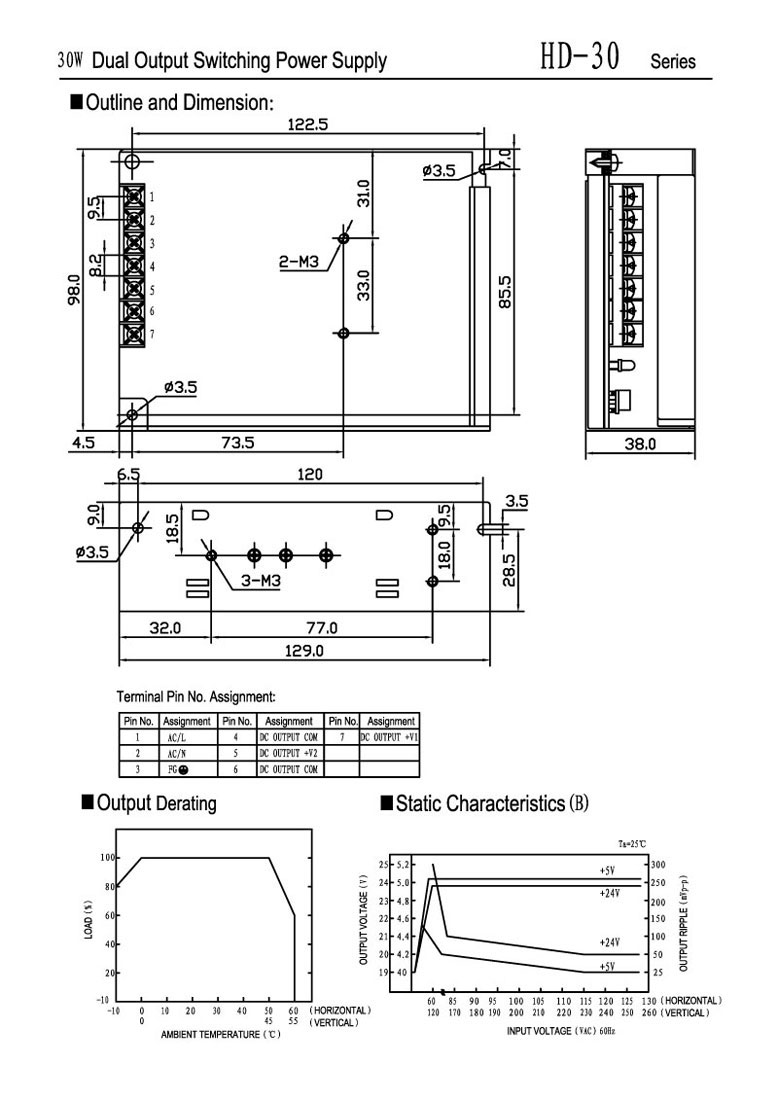

Dimensions: 129*98*38mm(L*W*H)
casing No. : H003
Model
HD-30A
HD-30B
CH1
CH2
CH1
CH2
OUTPUT
DC Voltage
5V
12V
5V
24V
Voltage Tolerance
¡À2%
+3,-7%
¡À2%
+3,-5%
Rated Current
4A
1A
2.2A
1A
Current Range
0.5-4A
0.1-1A
0.5-4A
0.1-1A
Rated Power
32W
35W
Ripple & Noise
50mVp-p
100mVp-p
50mVp-p
100mVp-p
DC Adjustment Range
CH1: -5%,+10%
Setup, Rise, Hold Time
200ms,50ms,30ms at full load
INPUT
Voltage Range
85¡«132 VAC/170¡«264VAC47¡«63 Hz,selected by switch 240¡«370VDC
AC Current
0.8A/115 V0.45A/ 230 V
Efficiency
72%
74%
Inrush Current
Cold start 18A/115V36A/230V
Leakage Current
£¼1mA/240VAC
PROTECTION
Over Load
105%¡«150%
Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed
ENVIRONMENT
Working Temp., Humidity
-10¡æ¡«+60¡æ; 20%¡«90 %RH
Storage Temp., Humidity
-20¡æ¡«+85¡æ; 10%¡«95 %RH
Vibration
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P:1.5KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
STANDARD
Safety Standard
Design refer to UL1012
EMC Standard
Design refer to FCC Part15 J Conduction Class A
OTHERS
Weight
0.41Kg
Packing
30pcs/13.4Kg/0.86CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì
parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
