MODEL:HD-60 Dual Output Switching Power Supply

Features:
High efficiency,high reliability
Universal AC input /full range
100% full load burn-in test
Protection: Short circuit/Over load/Over voltage
LED indicator for power on
Cooling by free air convection
Fixed switching frequency at 54KHz
1 year warranty

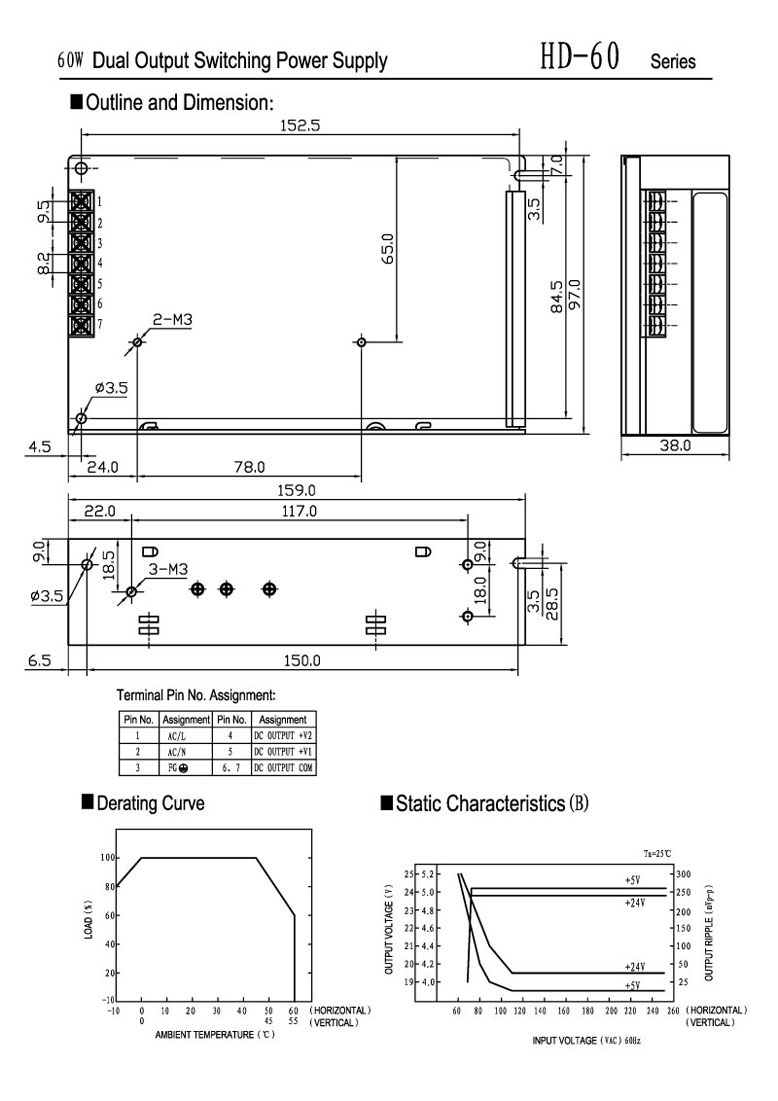

Dimensions: 159*97*38mm(L*W*H)



casing No. : H003

MODEL

HD-60A

HD-60B

CH1

CH2

CH1

CH2

OUTPUT

DC Voltage

5V

12V

5V

24V

Voltage Tolerance

¡À2%

¡À6%

¡À2%

¡À5%

Rated Current

4A

3A

3A

1.8A

Current Range

0.3-6A

0.2-4A

0.3-6A

0.2-2.2A

Rated Power

56W

58W

Ripple & Noise

75mVp-p

150mVp-p

75mVp-p

150mVp-p

DC Adjustment Range

CH1£º -5%£¬+10%

CH1£º -5%£¬+10%

Setup, Rise, Hold Time

300ms,50ms ,80ms/230VAC 800ms,50ms,10ms/115VAC at full load

INPUT

Voltage Range

85¡«264 VAC/ 47¡«63 Hz£» 120¡«370VDC

AC Current

2A/115 V 1A/ 230 V

Efficiency

73%

76%

Inrush Current

Cold start 30A/115VAC 60A/230VAC

Leakage Current

£¼3.5mA/240VAC

PROTECTION

Over Load

105%¡«150%

Protection: Shut down o/p voltage, re-power on to recover

Over Voltage

115%~135%

Protection: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ; 20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ; 10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012 , UL60950 ,EN60950

EMC Standard

Design refer to EN55022(CLSPR22),EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024

OTHERS

Weight

0.54Kg

Packing

30pcs/16.7Kg/0.99CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
.4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
