MODEL:HDC-35 Single Output Switching Power Supply

MODEL

HDC-35A

HDC-35B

OUTPUT

OUTPUT

CH1

CH2

CH1

CH2

DC Voltage

5V

12V

5V

24V

Rated Current

4A

1A

2.2A

1A

Current Range

0.5-5A

0.1-1.5A

0.5-4A

0.2-1.3A

Rated Power

32W

35W

Ripple & Noise

80mVp-p

120mVp-p

80mVp-p

200mVp-p

DC Adjustment Range

CH1：4.75-5.5V

CH1:4.75-5.5V

Voltage Tolerance

±2.0%

±6.0%

±2.0%

±6.0%

Line Regulation

±0.5%

±1.0%

±0.5%

±1.0%

Load Stability

±1.5%

±3.0%

±1.5%

±3.0%

Setup, Rise, Hold Time

500ms、30ms/230VAC 1200ms、30ms/115VAC
50ms/230VAC, 10ms/115VAC

INPUT

Voltage Range

AC 85～264VAC DC120～370VDC

Frequency

47-63Hz

Efficiency

78%

81%

AC Current

0.75A/ 115V 0.5A/230V

Inrush Current

Cold start 45A/230VAC

Leakage Current

< 2mA/240VAC

PROTECTION

Over Load

110%～150% Protection: Hiccup mode，recovers automatically after fault condition is removed

Over voltage

CH1：5.75-6.75 Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp., Humidity

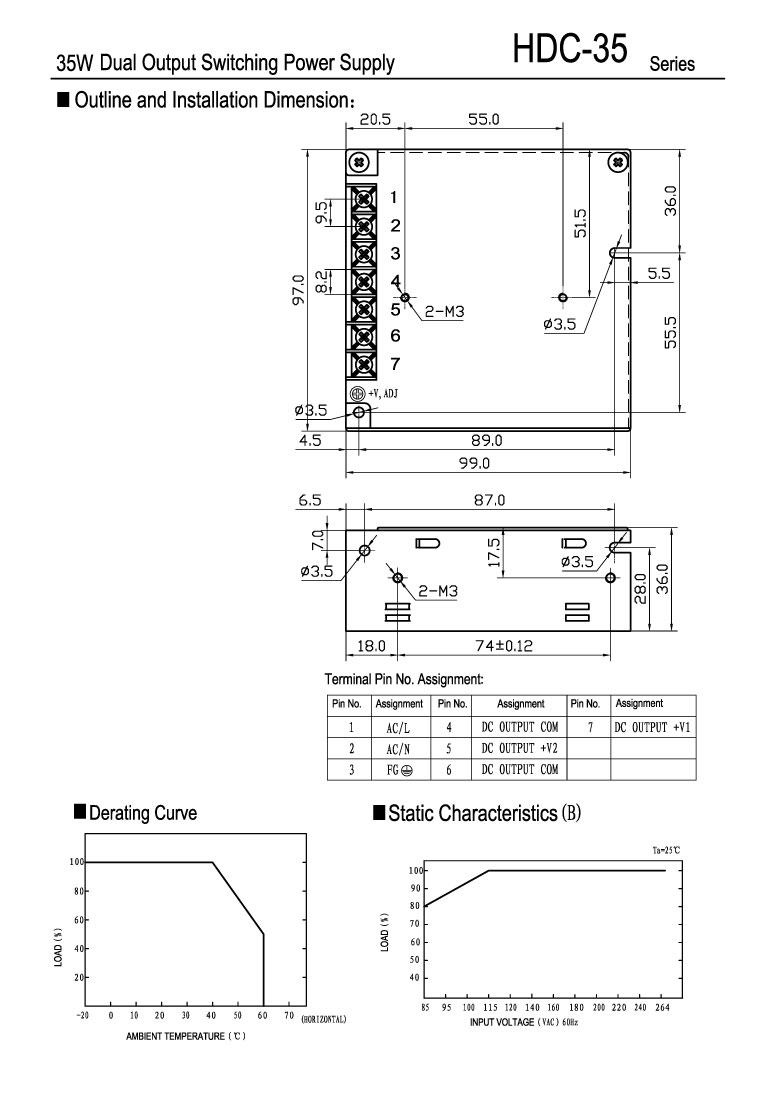

-20℃～+60℃；20%～90 %RH no cooling(Refer to output load derating curve)

Storage Temp., Humidity

-40℃～+85℃；10%～95 %RH

Vibration

10～500Hz，2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL60950-1,CB（IEC60950-1）

EMC Standard

Design refer to EN55022 CLASSB EN61000-3-2，-3 EN61000-4-2，3，4，5，6，8，11，ENV50204，EN55024，EN61000-6-1

OTHERS

Weight

0.36Kg

Packing

45pcs/17Kg/0.99CUFT

NOTE
