MODEL:HDR-45 Single Output Industrial DIN Rail Power Supply |
Features:
¡¤Universal AC input/ full range
¡¤Protections: Short circuit/ Over load/ Over voltage/ Over ¡¤ temperature
¡¤Cooling by free air convection
¡¤Can be installed on DIN rail TS-35/7.5 or 15
¡¤LED indicator for power on
¡¤100% full load burn-in test
¡¤Fixed switching frequency at 100KHz
¡¤1 year warranty

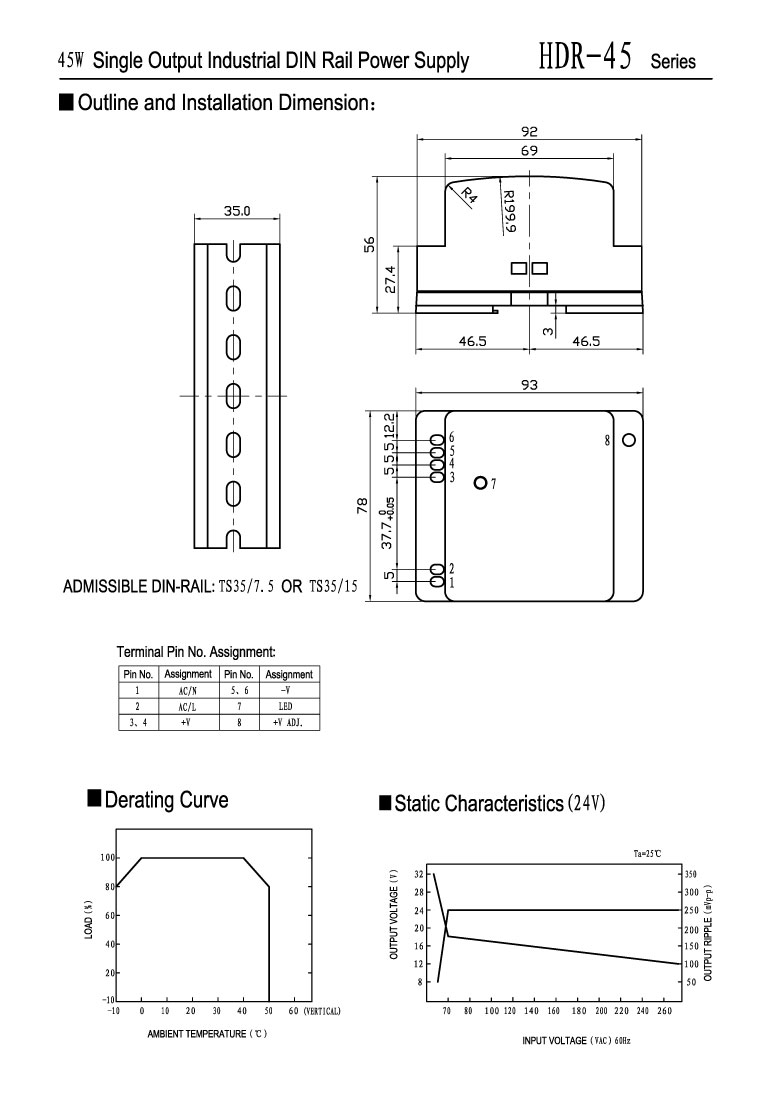

¡¤Dimensions: 93*78*67mm (L*W*H) |
casing No. : H034 |
|
MODEL |
HDR-45-5 |
HDR-45-12 |
HDR-45-15 |
HDR-45-24 |
OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
Voltage Tolerance |
¡À2% |
¡À1% |
¡À1% |
¡À1% |
Rated Current |
5A |
3.5A |
2.8A |
2A |
Current Range |
0-5A |
0-3.5A |
0-2.8A |
0-2A |
Rated Power |
25W |
42W |
42W |
48W |
Ripple & Noise |
100mVp-p |
200mVp-p |
240mVp-p |
480mVp-p |
DC Adjustment Range |
4.75-5.5V |
10.8-13.2V |
13.5-16.5V |
21.6-26.4V |
Setup, Rise, Hold Time |
800ms,60ms£¬100ms/230VAC at full load |
INPUT |
Voltage Range |
85¡«264 VAC47¡«63 Hz£»120¡«370VDC |
AC Current |
1.5 A/115 V 0.75A/ 230 V |
Efficiency |
72% |
77% |
77% |
80% |
Inrush Current |
Cold start 28A/115V 56A/230V |
Leakage Current |
£¼1mA/240VAC |
PROTECTION |
Over Load |
105%¡«150% |
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
Over Voltage |
115%¡«135% |
Protection type: Shut down o/p voltage, re-power on to recover |
Over Temp |
Tj 135 typically (U1) Detect on heat sink of power transistor,shut down o/p voltage, recovers automatically after temperature goes down |
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+50¡æ£»20%¡«90 %RH |
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH |
Vibration |
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC |
STANDARD |
Safety Standard |
Design refer to UL508,TUV EN60950-1 |
EMC Standard |
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2 |
OTHERS |
Weight |
0.31Kg |
Packing |
48pcs/16.1Kg/1.3CUFT |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
