MODEL:HDR-60 Single Output Industrial DIN Rail Power Supply
Features:
¡¤Universal AC input/ full range
¡¤Protections: Short circuit/ Over load/ Over voltage
¡¤Cooling by free air convection
¡¤Can be installed on DIN rail TS-35/7.5 or 15
¡¤solation class¢ò
¡¤LED indicator for power on ¡¤100% full load burn-in test
¡¤1 year warranty

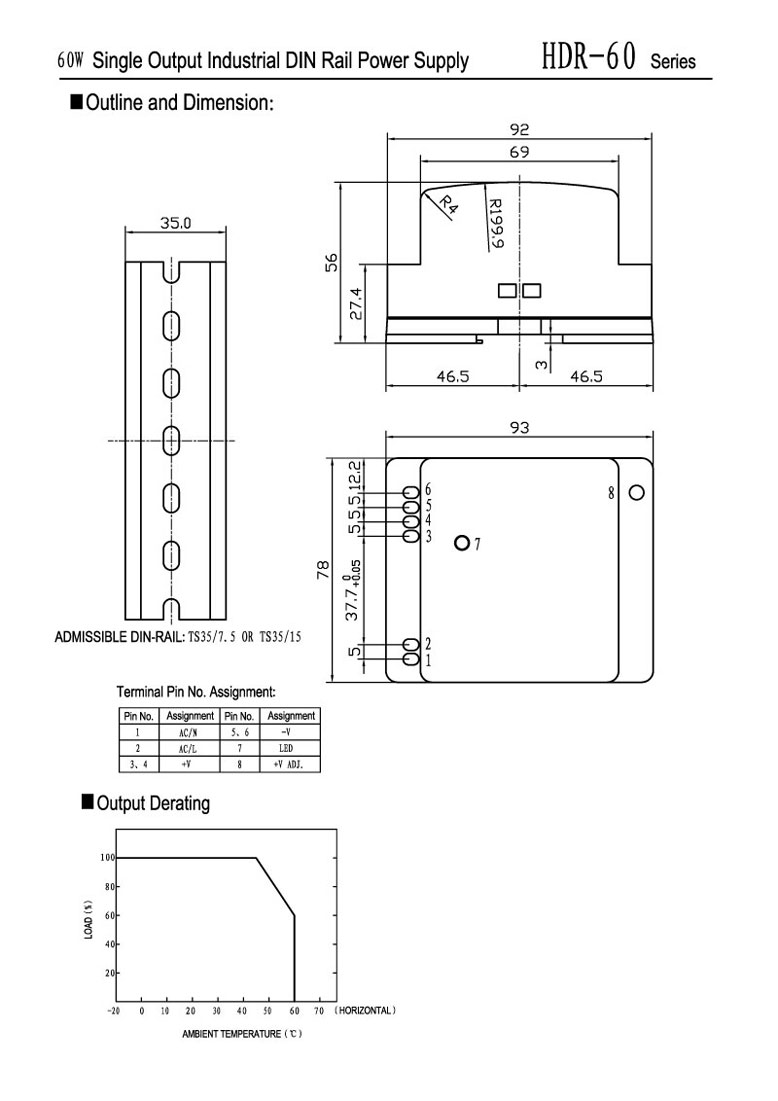

¡¤Dimensions: 78*93*56mm (W*H*D)
casing No. : H033
MODEL
HDR-60-5
HDR-60-12
HDR-60-15
HDR-60-24
OUTPUT
DC Voltage
5V
12V
15V
24V
Voltage Tolerance
¡À2%
¡À1%
¡À1%
¡À1%
Rated Current
6.5A
4.5A
4A
2.5A
Current Range
0-6.5A
0-4.5A
0-4A
0-2.5A
Rated Power
32.5W
54W
60W
60W
Ripple & Noise
80mVp-p
120mVp-p
120mVp-p
150mVp-p
DC Adjustment Range
-5%,+10%
-8%,+10%
¡À10%
¡À10%
Setup, Rise Time
100ms,30ms/230VAC at full load200ms,30ms/115VAC at full load
Hold Time
100ms/230VAC23ms/115VAC at full load
INPUT
Voltage Range
88¡«264 VAC47¡«63 Hz£»124¡«370VDC
AC Current
1.2A/115 V 0.8A/ 230 V
Efficiency
76%
82%
83%
81%
Inrush Current
Cold start 20A/115V 40A/230V
Leakage Current
£¼1mA/240VAC
PROTECTION
Over Load
105%¡«160%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
115%~135%
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity
-20¡æ¡«+60¡æ£»20%¡«90 %RH
Storage Temp., Humidity
-40¡æ¡«+85¡æ£»10%¡«95 %RH
Vibration
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P:3KVAC
Isolation Resistance
I/P-O/P:100M Ohms / 500VDC
STANDARD
Safety Standard
Design refer to UL60950-1,TUV EN60950-1,EN50178
EMC Standard
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2£¬EN61204-3
OTHERS
Weight
0.3Kg
Packing
48pcs/15.4Kg/1.02CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
