MODEL:HDR-75 Single Output Industrial DIN Rail Power Supply |
Features:
¡¤ Universal AC input/ full range
¡¤Protections: Short circuit/ Over load/ Over voltage/ Over temperature
¡¤Cooling by free air convection
¡¤Can be installed on DIN rail TS-35/7.5 or 15
¡¤LED indicator for power on
¡¤100% full load burn-in test
¡¤Fixed switching frequency at 50KHz
¡¤1 year warranty

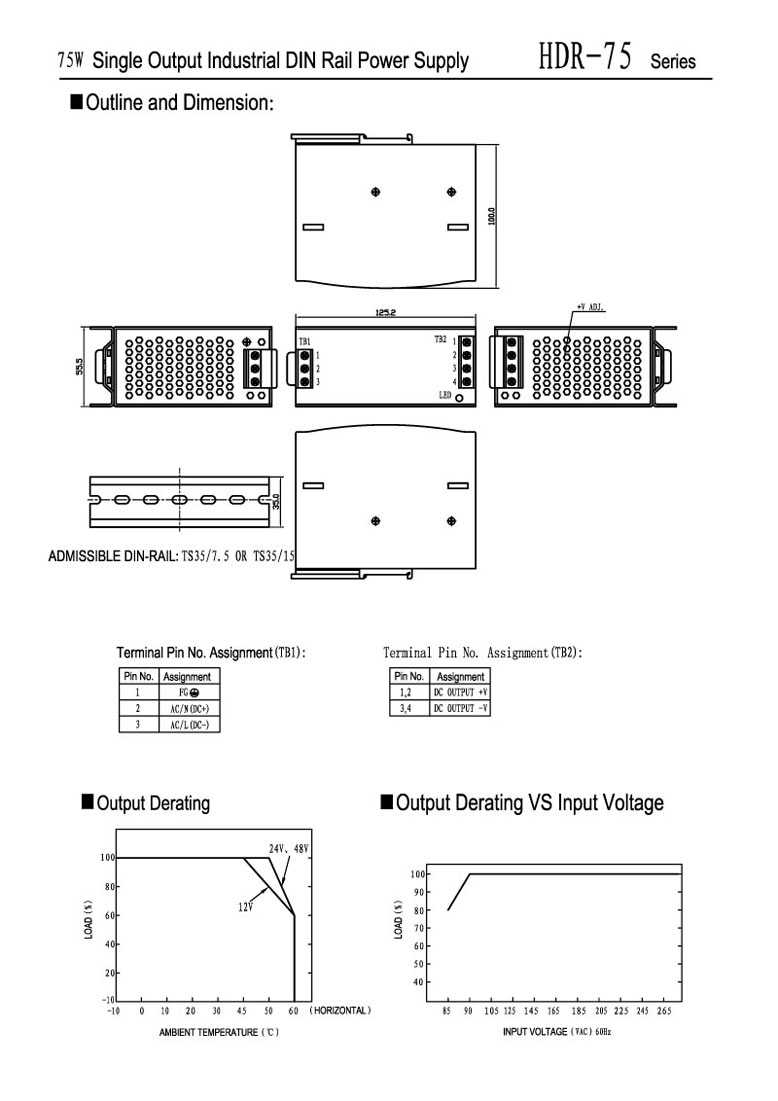

¡¤Dimensions: 55.5*125.2*100mm (W*H*D) |
casing No. : H035 |
|
MODEL |
HDR-75-12 |
HDR-75-24 |
HDR-75-48 |
OUTPUT |
DC Voltage |
12V |
24V |
48V |
Voltage Tolerance |
¡À2% |
¡À1% |
¡À1% |
Rated Current |
6.3A |
3.2A |
1.6A |
Current Range |
0-6.3A |
0-3.2A |
0-1.6A |
Rated Power |
76W |
76.8W |
76.8W |
Ripple & Noise |
100mVp-p |
150mVp-p |
240mVp-p |
DC Adjustment Range |
17% |
17% |
10% |
Setup, Rise Time |
1000ms,60ms/230VAC at full load1800ms,60ms/115VAC at full load |
Hold Time |
60ms/230VAC12ms/115VAC at full load |
INPUT |
Voltage Range |
85¡«264 VAC 47¡«63 Hz; 120¡«370VDC |
AC Current |
1.6 A/115 V 0.96A/ 230 V |
Efficiency |
76% |
80% |
81% |
Inrush Current |
Cold start 20A/115V 40A/230V |
Leakage Current |
£¼1mA/240VAC |
PROTECTION |
Over Load |
105%¡«150% |
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
Over Voltage |
120%~140% |
Protection: Hiccup mode, recovers automatically after fault condition is removed |
Over Temp |
TSW1¡Ý85¡æ¡À5¡æ |
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+60¡æ£»20%¡«90 %RH |
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH |
Vibration |
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC |
STANDARD |
Safety Standard |
Design refer to UL508,TUV EN60950-1 |
EMC Standard |
EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2 |
OTHERS |
Weight |
0.6Kg |
Packing |
20pcs/13Kg/1.1CUFT |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
|
