MODEL:HDRP-480 Single Output Industrial DIN Rail Power Supply |
Features:
Built-in passive PFC function compliance to EN61000-3-2
High efficiency 89% and low dissipation
Protections: Short circuit/Over load/ Over voltage/ Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL 508(industrial control equipment)approved
EN61000-6-2(EN50082-2)industrial immunity level
100% full load burn-in test
3 years warranty

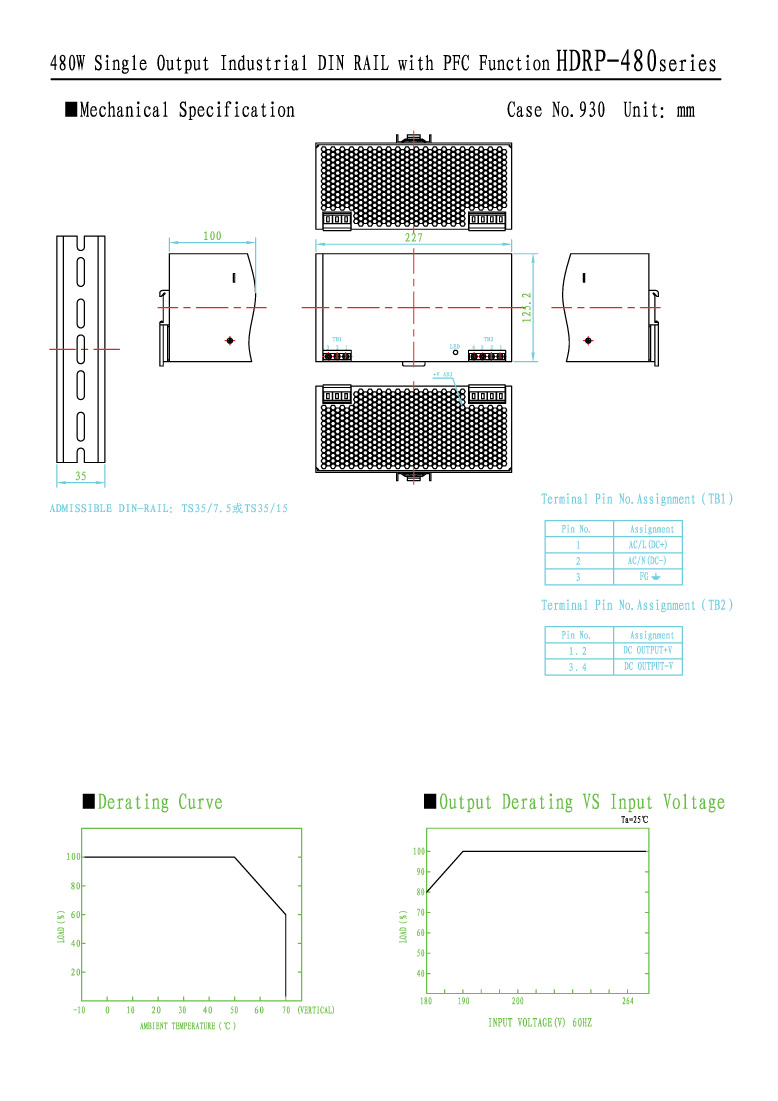

Dimensions:227*125.2*100mm£¨W*H*D£© |
Shell code£ºH071 |
|
MODEL |
HDRP-480-24 |
HDRP-480-48 |
OUTPUT |
DC VOLTAGE |
24V |
48V |
VOLTAGE TOLERANCE |
¡À1% |
¡À1% |
RATED CURRENT |
20A |
10A |
CURRENT RANGE |
0-20A |
0-10A |
RATED POWER |
480W |
480W |
Ripple & Noise |
120mVp-p |
120mVp-p |
Voltage adj.range |
24~28V |
48~53V |
Setup,Rise time |
1200ms,40ms/220VAC at full load |
Hold up time |
16ms/230VAC at full load |
INPUT |
VOLTAGE RANGE |
180¡«264VAC 47¡«63 Hz 250~370VDC |
AC CURRENT |
4A/230VAC |
Power factor |
0.7 |
|
Efficiency |
89%
|
INRUSH CURRENT |
Cold start current 40A/230VAC |
LEAKAGE CURRENT |
<3.5mA/240VAC |
PROTECTION |
OVER LOAD |
105%~150% rated output power |
Protection type£ºConstant current limiting,recovers automatically after fault condition is removed |
OVER VOLTAGE |
30~36V |
54~60V |
Protection type: shut down o/p voltage,re-power on to recover |
HIGH TEMPERATURE |
100¡ãC¡À5¡ãC (TSW1)detect on heat sink of power transistor |
Protection£º shut down o/p voltage , recovers automatically after temperature gose down |
ENVIRONMENT |
WORKING
TEMP.HUMIDITY |
-10¡æ¡«+70¡æ; 20%¡«90 %RH non-condensing(refer to¡°Derating Curve¡±) |
STORAGE TEMP.HUMIDITY |
-20¡æ¡«+85¡æ; 10%¡«95 %RH |
VIBRATION |
10¡«500Hz,2G 10min./1cycle, 60min, each along X, Y, Z axes; Mounting£ºCompliance
to IEC60068-2-6 |
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC |
STANDARD |
SAFETY STANDARDS |
·ûºÏUL508,UL60950-1,TUV EN60950-1 |
EMC Standard |
EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2) |
OTHERS |
Weight |
2.4kg |
PACKING |
6pcs/15kg/1.75 CBM |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient
temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, voltage regulation and current regulation
4.The power supply is considered a component which will be installed into a final equipment.The final
equipment must be re-confirmed that it still meets EMC directives |
