MODEL:HID-50 Dual Output Switching Power Supply |
Features:
High efficiency,high reliability,low cost
Universal AC input /full range
100% full load burn-in test
Protections: Short circuit/ Over load/ Over voltageCooling by free air convection
Fixed switching frequency at 50KHz
1 year warranty

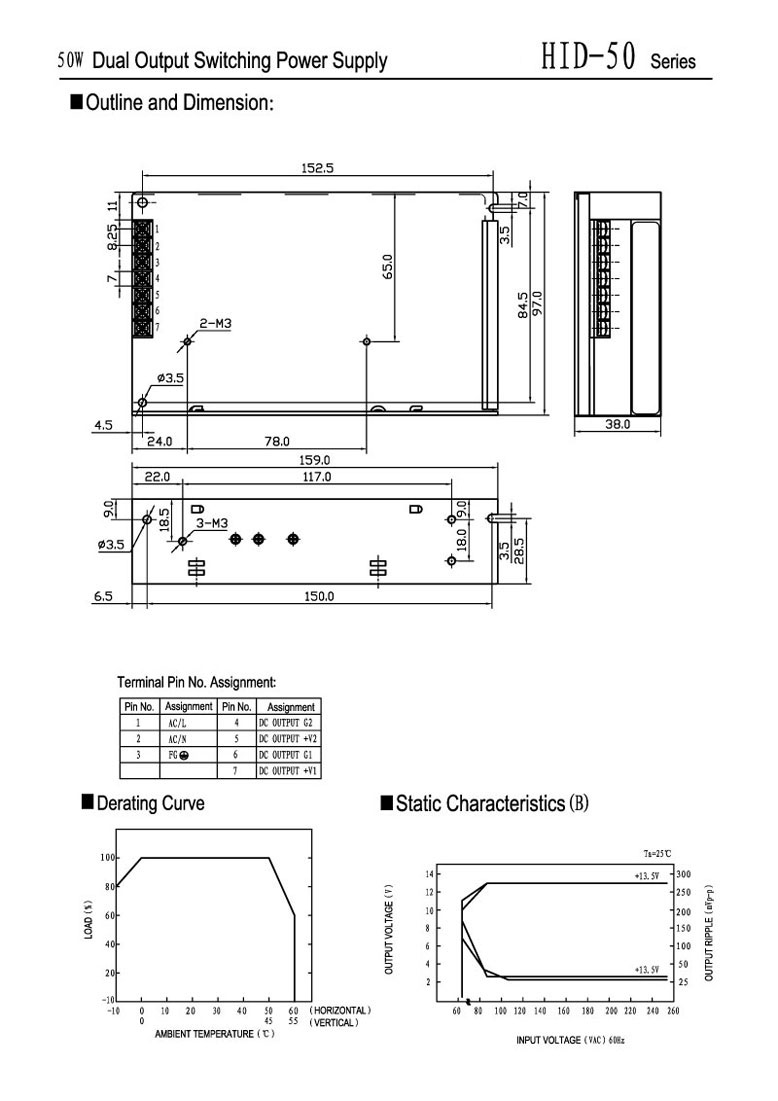

Dimensions: 159*97*38mm (L*W*H)
Isolated ouput & GND for CH1, CH2 |
casing No. : H003 |
|
MODEL |
HID-50A |
HID-50B |
HID-50C |
HID-50D |
CH1 |
CH2 |
CH1 |
CH2 |
CH1 |
CH2 |
CH1 |
CH2 |
OUTPUT |
DC Voltage |
5V |
5V |
13.5V |
13.5V |
27V |
27V |
5V |
13.5V |
Voltage Tolerance |
¡À1% |
¡À2% |
¡À1% |
¡À2% |
¡À1% |
¡À2% |
¡À1% |
¡À2% |
Rated Current |
6A |
2A |
1.8A |
1.8A |
0.9A |
0.9A |
5A |
1.7A |
Current Range |
0.5-6A |
0-2A |
0.3-2A |
0-2A |
0.18-1A |
0-1A |
1-5A |
0-2A |
Rated Power |
40W |
48.6W |
48.6W |
48W |
Ripple & Noise |
50mVp-p |
100mVp-p |
100mVp-p |
150mVp-p |
100mVp-p |
150mVp-p |
50mVp-p |
150mVp-p |
DC Adjustment Range |
-5%,+10% |
¡À11% |
¡À11% |
-5%,+10% |
Setup, Rise, Hold Time |
1600ms, 50ms, 100ms at full load |
INPUT |
Voltage Range |
85¡«264VAC 47¡«63 Hz£»120¡«370VDC |
AC Current |
1A/115 V0.6A/ 230 V |
Efficiency |
66% |
70% |
72% |
68% |
Inrush Current |
Cold start 18A/115V 36A/230V |
Leakage Current |
£¼3.5 mA/240VAC |
PROTECTION |
Over Load |
105%¡«150% |
Protection: Hiccup mode, recovers automatically after fault condition is removed |
Over voltage |
125%¡«150% |
Protection: Hiccup mode, recovers automatically after fault condition is removed |
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+60¡æ£»20%¡«90 %RH |
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH |
Vibration |
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
SAFETY |
Withstand Voltage |
I/P-O/P:1.5KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
STANDARD |
Safety Standard |
Design refer to UL1012 |
EMC Standard |
Design refer to FCC Part15 |
OTHERS |
Weight |
0.54Kg |
Packing |
24pcs / 13.8kg / 0.75CUFT |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì
parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation. |
