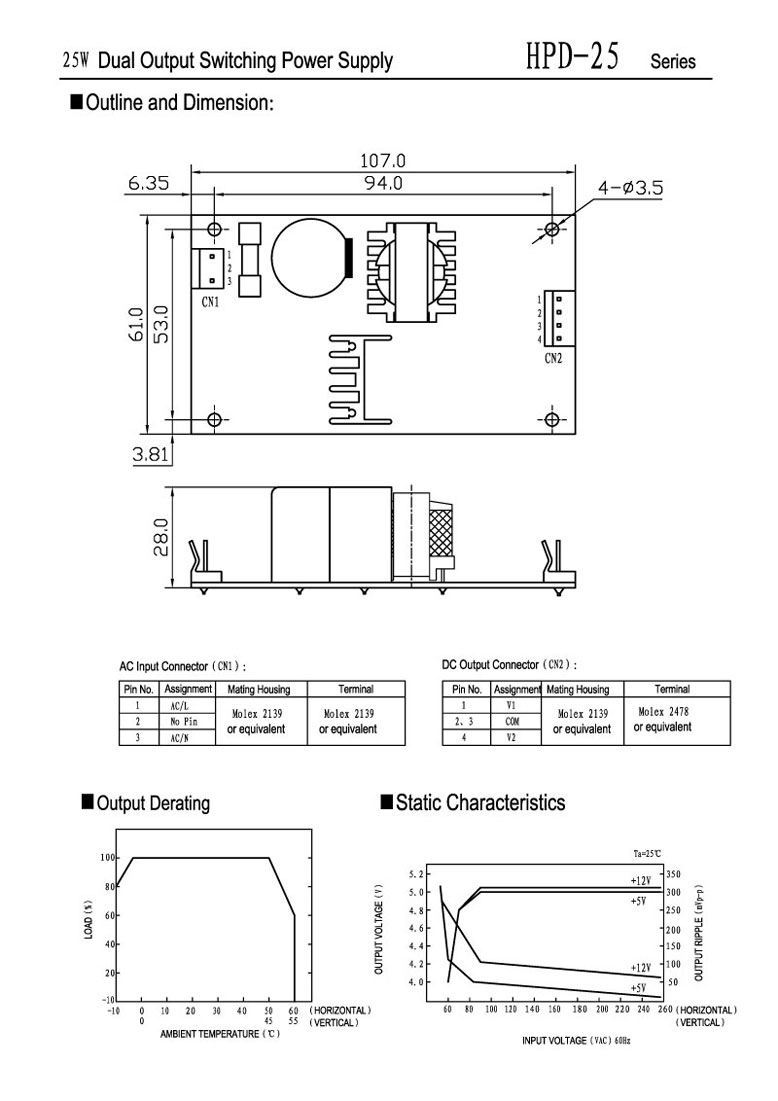

MODEL:HPD-25 Dual Output Switching Power Supply

MODEL

OUTPUT

DC Voltage

5V

12V

5V

24V

5V

-5V

12V

-12V

15V

-15V

Voltage Tolerance

±4.0%

±6.0%

±4.0%

±6.0%

±6.0%

±6.0%

±4.0%

Rated Current

2.1A

1.2A

1.2A

0.8A

2.5A

2.5A

1A

1A

0.8A

0.8A

Current Range

0.2-2.5A

0.1-1.5A

0.2-2A

0.1-1A

0.1-3A

0.1-2.5A

0.1-1.2A

0.1-1.2A

0.1-1A

0.1-1A

Rated Power

25W

25.2W

25W

24W

24W

Ripple & Noise

50mV

150mV

Setup, Rise, Hold Time

250ms, 50ms，100ms/ 230VAC 250ms,30ms，16ms/115VAC at full load

INPUT

Voltage Range

85～264VAC 127~370VAC 47～63Hz

AC Current

0.65A/115VAC 0.4A/230VAC

Efficiency

71%

77%

73%

74%

75%

Inrush Current

Cold start 32A

Leakage Current

<0.5 mA/240VAC

PROTECTION

Over Load

>105%

Protection: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

115%~135%

Protection: Shut down o/p voltage, re-power on to recover

Over Temp

U1≥135℃,Shut down o/p voltage, auto-recovery

ENVIRONMENT

Working Temp., Humidity

-10℃～+60℃；20%～90 %RH

Storage Temp., Humidity

-20℃～+85℃；10%～95 %RH

Vibration

10～500Hz，2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC

STANDARD

Safety Standard

Design refer to UL60950-1, TUV EN60950-1

EMC Standard

Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5

OTHERS

Weight

0.15Kg

Packing

75pcs/12.5Kg/1.07CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ
   parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must
   be re-confirmed that it still meets EMC directives.
