MODEL:HPD-45 Dual Output Switching Power Supply |
Features:
¡¤ High efficiency, high reliability
¡¤Universal AC input /full range
¡¤Low leakage current <0.5mA
¡¤Protections: Short circuit/ Over load/ Over voltage
¡¤100% full load burn-in test
¡¤Cooling by free air convection
¡¤2 years warranty
¡¤Fixed switching frequency at 65KHz

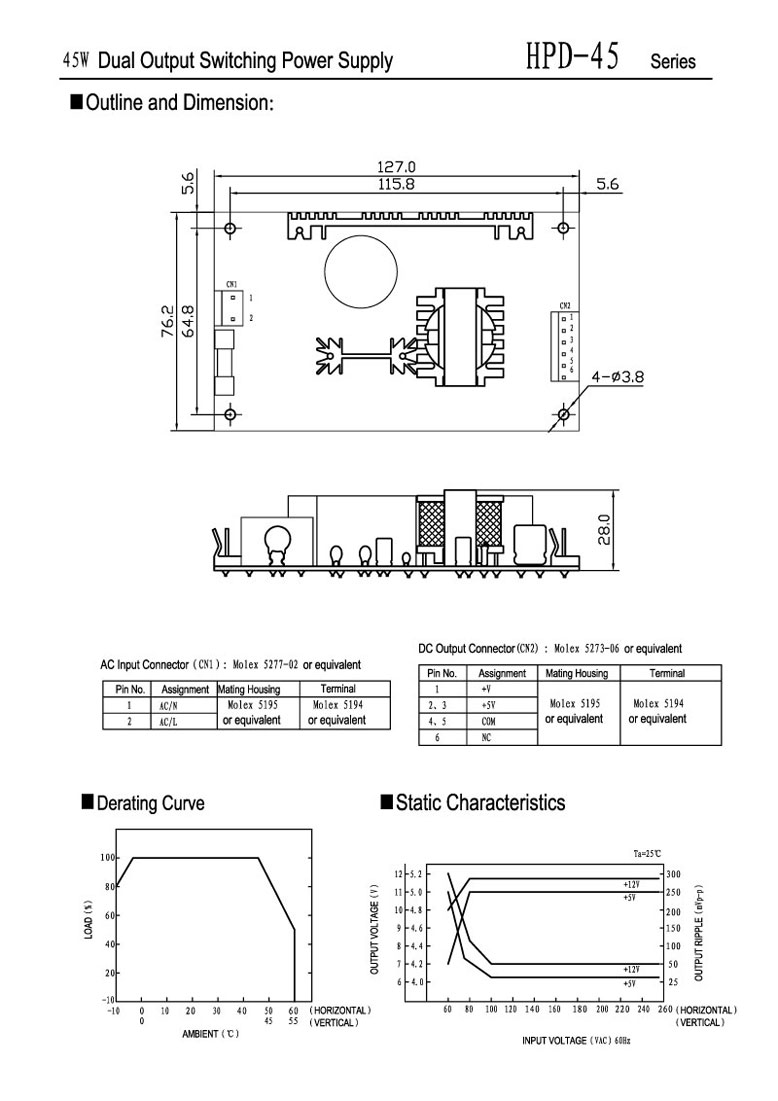

¡¤Dimensions: 127*76.2*28mm(L*W*H) |
casing No. : H013 |
|
MODEL |
HPD-45A |
HPD-45B |
CH1 |
CH2 |
CH1 |
CH2 |
OUTPUT |
DC Voltage |
5V |
12V |
5V |
24V |
Voltage Tolerance |
¡À4.0% |
¡À7.0% |
¡À4.0% |
¡À7.0% |
Rated Current |
3.2A |
2A |
3.2A |
1.2A |
Current Range |
0.4-5A |
0.2-2.5A |
0.4-5A |
0.2-1.8A |
Rated Power |
40W |
44.8W |
Ripple & Noise |
50mVp-p |
120mVp-p |
50mVp-p |
150mVp-p |
Setup, Rise, Hold Time |
800ms, 20ms£¬ 60ms at full load |
INPUT |
Voltage Range |
90¡«264VAC47¡«440Hz £¬127~370VDC |
AC Current |
1A/115VAC0.7A/230VAC |
Efficiency |
77% |
78% |
Inrush Current |
Cold start 15A/115VAC30A/230VAC |
Leakage Current |
<0.5 mA |
PROTECTION |
Over Load |
53-75W |
Protection: Fold back current limiting, recovers automatically after fault condition is removed |
Over Voltage |
CH1£º115%~135% |
Protection: Fold back current limiting, recovers automatically after fault condition is removed |
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+60¡æ£»20%¡«90 %RH |
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH |
Vibration |
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC |
STANDARD |
Safety Standard |
Design refer to UL60950, TUV EN60950-1 |
EMC Standard |
Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024 |
OTHERS |
Weight |
0.2Kg |
Packing |
72pcs/16Kg/1.35CUFT |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line rsegulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5.Mounting holes M1 and M2 should be grounded for EMI purposes.
|
