MODEL:HPS-45 Single Output Switching Power Supply |
Features:
¡¤High efficiency, high reliability
¡¤Universal AC input / full range
¡¤Low leakage current <0.5mA
¡¤100% full load burn-in test
¡¤Protections: Short circuit/ Over load/ Over voltage
¡¤Cooking by free air convection
¡¤Fixed switching frequency at 65KHz
¡¤1 year warranty

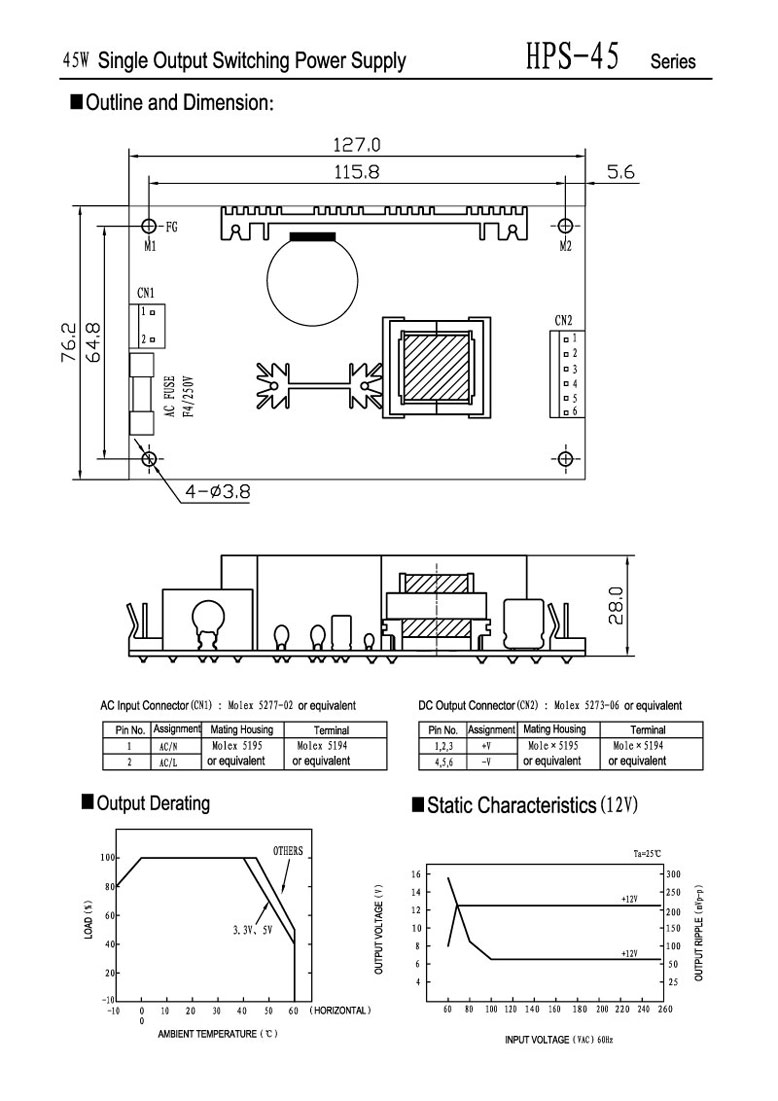

¡¤Dimensions: 127*76.2*28mm (L*W*H) |
casing No. : H013 |
|
MODEL |
HPS-45-3.3 |
HPS-45-5 |
HPS-45-7.5 |
HPS-45-12 |
HPS-45-13.5 |
HPS-45-15 |
HPS-45-24 |
HPS-45-27 |
HPS-45-48 |
OUTPUT |
DC Voltage |
3V |
5V |
7.5V |
12V |
13.5V |
15V |
24V |
27V |
48V |
Voltage Tolerance |
¡À3.0% |
¡À3.0% |
¡À3.0% |
¡À2% |
¡À2% |
¡À2% |
¡À2% |
¡À2% |
¡À2% |
Rated Current |
8A |
8A |
5.4A |
3.7A |
3.3A |
3A |
1.9A |
1.7A |
1A |
Current Range |
0-10.7A |
0-10.5A |
0-7A |
0-4.4A |
0-3.9A |
0-3.5A |
0-2.2A |
0-1.95A |
0-1.1A |
Rated Power |
26.4W |
40W |
40.5W |
44.4W |
44.6W |
45W |
45.6W |
45.9W |
48W |
Ripple & Noise |
80mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
DC Adjustment Range |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
Setup, Rise, Hold Time |
800ms, 30ms, 60ms at full load |
INPUT |
Voltage Range |
90¡«264VAC47¡«440Hz£¬127~370VDC |
AC Current |
0.8A/115VAC0.56A/230VAC |
Efficiency |
69% |
74% |
75% |
76% |
77% |
77% |
78% |
78% |
78% |
Inrush Current |
Cold start 15A/115VAC30A/230VAC |
Leakage Current |
<0.75 mA/240VAC |
PROTECTION |
Over Load |
53-75W£¨3.3V:36-55W£©Hiccup mode, recovers automatically after fault condition is removed |
Over Voltage |
115%-135%Hiccup mode, recovers automatically after fault condition is removed |
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+60¡æ£»20%¡«90 %RH |
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH |
Vibration |
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC |
STANDARD |
Safety Standard |
Design refer to UL60950, TUV EN60950-1 |
EMC Standard |
Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024 |
OTHERS |
Weight |
0.19Kg |
Packing |
72pcs/15.6Kg/1.35CUFT |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. Mounting holes M1 and M2 should be grounded for EMI purposes. |
