1.5s,50ms,24ms/230VAC 1.5s,50ms,24ms/115VAC at full load
INPUT
Voltage Range
90¡«264 VAC 47-63Hz£»127¡«370VDC
Power Factor
PF>0.95/230VAC PF>0.95/115VAC at full load
AC Current
14A/115 VAC 7A/230VAC
Efficiency
77%
84%
84%
84%
86%
86%
86%
Inrush Current
Cold start 40A/115VAC 70A/230VAC
Leakage Current
<2mA/240VAC
PROTECTION
Over Load
115%~140%
Protection: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
115%¡«135%
Protection type: Shut down o/p voltage, re-power on to recover
Over Temp
95 (TSW1) Detect on the heatsink of PFC MOSFET 90 (TSW2) Detect the winding of output choke
Protection:Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION
Remote Control
RC+/RC£:4 ~ 10VDC Power off, <0 ~ 0.8VDC Power on
ENVIRONMENT
Working Temp., Humidity
-10¡æ¡«+65¡æ£»20%¡«90 %RH
Storage Temp., Humidity
-20¡æ¡«+85¡æ£»10%¡«95 %RH
Vibration
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD
Safety Standard
Design refer to UL1950,TUV EN60950
EMC Standard
Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024
OTHERS
Weight
5.2Kg
Packing
3pcs/16.3Kg/1.42 CUFT

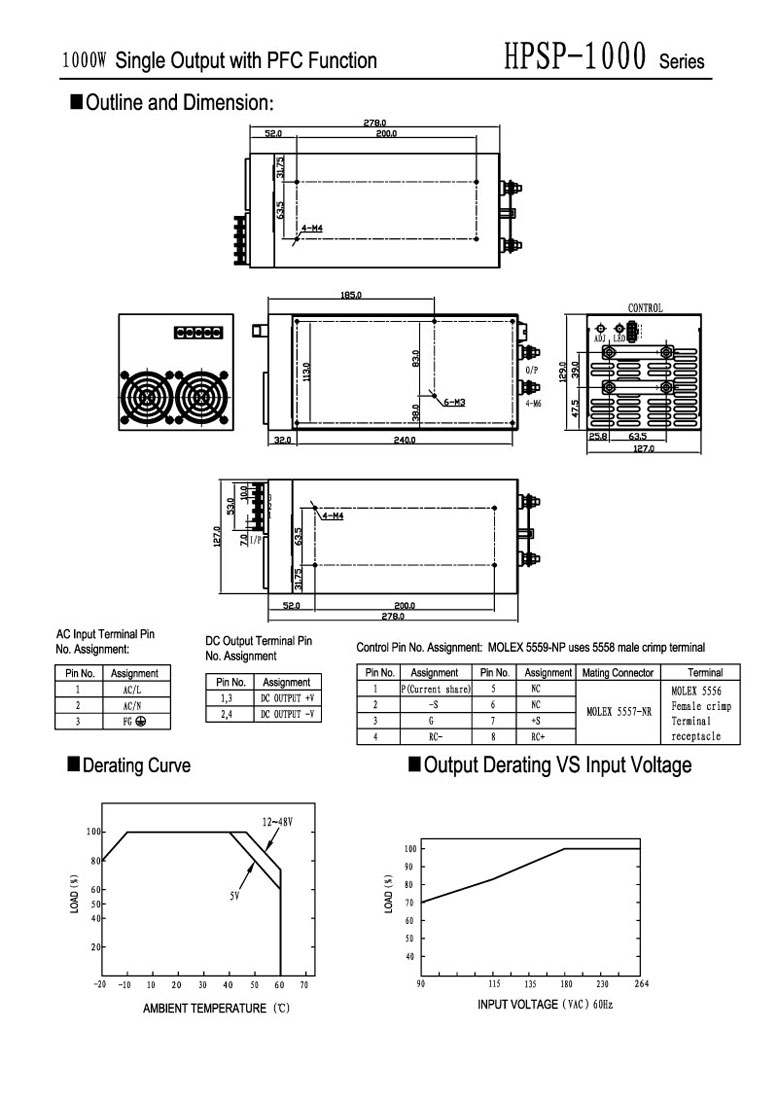

NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì
parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.10% Duty cycle maximum within every 30 seconds(max.). Average output power should not exceed the rated power.
5.The power supply is considered a component which will be installed into a final equipment. The final equipment must
be re-confirmed that it still meets EMC directives.
