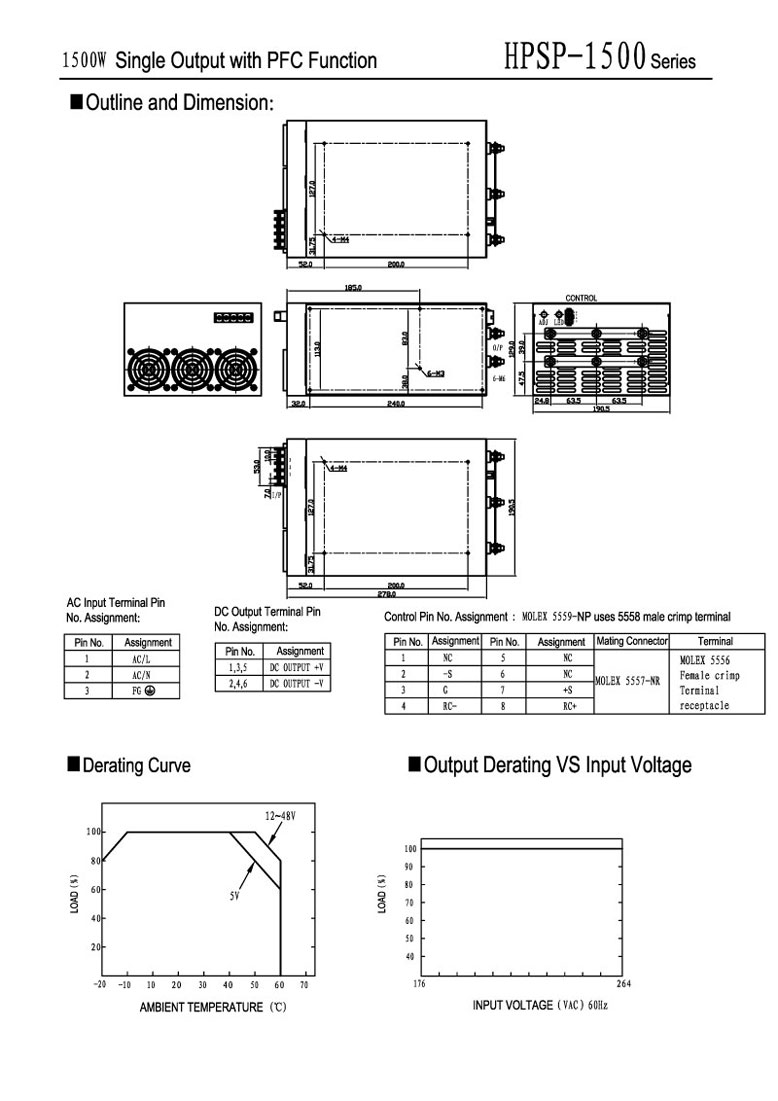

MODEL:HPSP-1500 With PFC and Parallel Function Switching Power Supply |
||||||||||
| ||||||||||
|
MODEL |
HPSP-500-5 |
HPSP-500-12 |
HPSP-500-13.5 |
HPSP-500-15 | HPSP-500-24 | HPSP-500-27 | HPSP-500-48 | |||
|
OUTPUT |
DC Voltage |
5V |
12V |
13.5V |
15V |
24V |
27V |
48V | ||
|
Voltage Tolerance |
¡À6.0% |
¡À3.0% |
¡À2.0% |
¡À2.0% |
¡À1.0% |
¡À1.0% |
¡À1.0% | |||
|
Rated Current |
217.5A |
112.5A |
100.5A |
90A |
56.4A |
50.4A |
28.5A | |||
|
Current Range |
0-217.5A |
0-112.5A |
0-100.5A |
0-90A |
0-56.4A |
0-50.4A |
0-28.5A | |||
|
Rated Power |
1087.5W |
1350W |
1356.75W |
1350W |
1353.6W |
1360.8W |
1368W | |||
|
Peak Value Power |
1200W |
1500W |
1500W |
1500W |
1500W |
1500W |
1500W | |||
|
Ripple & Noise |
100mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p | |||
|
DC Adjustment Range |
-5%,+10% |
-17%,+10% |
¡À11% |
-10%,+20% |
-17%,+10% |
¡À11% |
-15%,+17% | |||
|
Setup, Rise, Hold Time |
1.5s,50ms,15ms/230VAC at full load | |||||||||
|
INPUT |
Voltage Range |
176¡«264 VAC 47-63Hz£»248¡«370VDC | ||||||||
|
Power Factor |
PF>0.95/230VAC at full load | |||||||||
|
AC Current |
10.5A/230 VAC | |||||||||
|
Efficiency |
77% |
84% |
84% |
84% |
85% |
85% |
86% | |||
|
Inrush Current |
Cold start 100A/230VAC | |||||||||
|
Leakage Current |
<3.5mA/240VAC | |||||||||
|
PROTECTION |
Over Load |
115%~140% | ||||||||
|
Protection: Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
|
Over Voltage |
115%¡«135% | |||||||||
|
Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||
|
Over Temp |
95 (TSW1) Detect on the heatsink of PFC MOSFET 90 (TSW2) Detect the winding of output choke | |||||||||
|
Protection:Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||||
|
FUNCTION |
Remote Control |
RC+/RC-£º0~0.8V Power on, 4~10V Power off, sink current <30mA | ||||||||
|
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+65¡æ£»20%¡«90 %RH | ||||||||
|
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH | |||||||||
|
Vibration |
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||
|
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC | ||||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC | |||||||||
|
STANDARD |
Safety Standard |
Design refer to UL1950,TUV EN60950 | ||||||||
|
EMC Standard |
Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024 | |||||||||
|
OTHERS |
Weight |
7.4Kg | ||||||||
|
Packing |
2pcs/15.5Kg/1.28 CUFT | |||||||||
|
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.10% Duty cycle maximum within every 30 seconds(max.). Average output power should not exceed the rated power. 5.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||||||||
