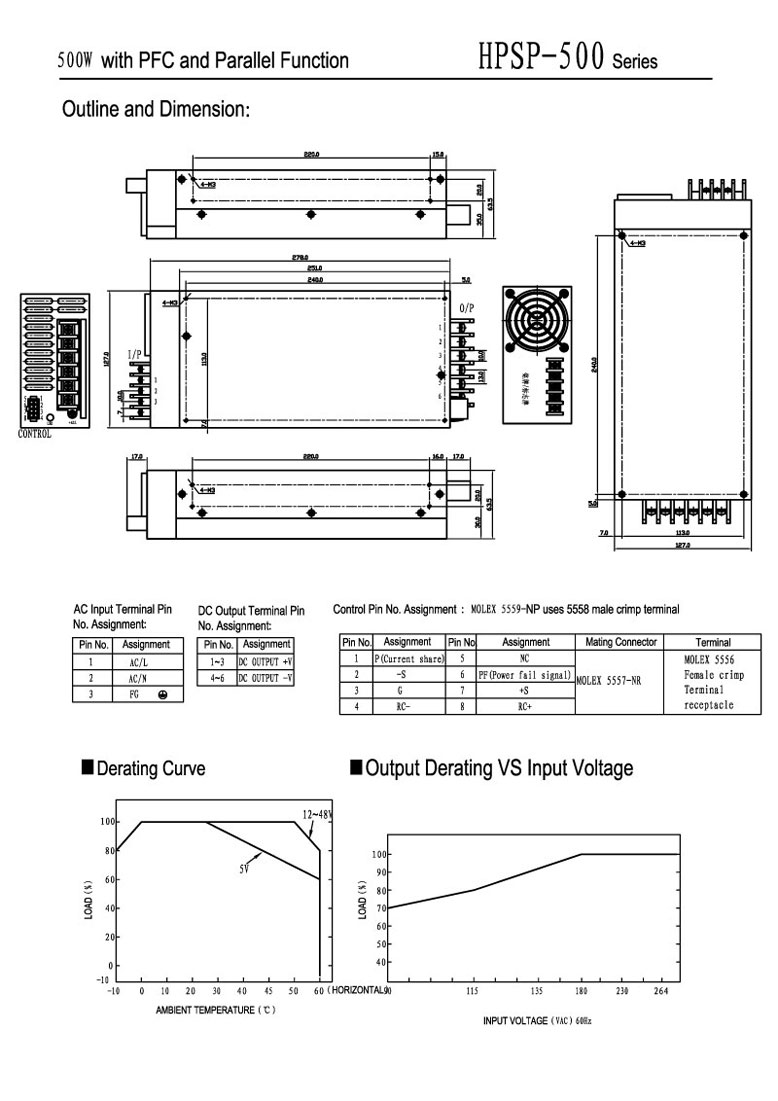

MODEL:HPSP-500 With PFC and Parallel Function Switching Power Supply |
||||||||||
| ||||||||||
|
MODEL |
HPSP-500 |
HPSP-500-12 |
HPSP-500-13.5 |
HPSP-500 -15 | HPSP-500 -24 | HPSP-500 -27 | HPSP-500 -48 | |||
|
OUTPUT |
DC Voltage |
5V |
12V |
13.5V |
15V |
24V |
27V |
48V | ||
|
Voltage Tolerance |
¡À2.0% |
¡À1.0% |
¡À1.0% |
¡À1.0% |
¡À1.0% |
¡À1.0% |
¡À1.0% | |||
|
Rated Current |
80A |
41.5A |
37A |
33A |
20.8A |
18.5A |
10.5A | |||
|
Current Range |
0-80A |
0-41.5A |
0-37A |
0-33A |
0-20.8A |
0-18.5A |
0-10.5A | |||
|
Rated Power |
400W |
498W |
499.5W |
495W |
499.2W |
499.5W |
504W | |||
|
Ripple & Noise |
100mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p | |||
|
DC Adjustment Range |
-5%,+10% |
-17%,+10% |
¡À11% |
-10%,+20% |
-17%,+10% |
¡À11% |
-15%,+17% | |||
|
Setup, Rise, Hold Time |
1500ms,50ms,15ms at full load | |||||||||
|
INPUT |
Voltage Range |
90¡«264 VAC 47-63Hz£»127¡«370VDC | ||||||||
|
Power Factor |
0.95/230VAC 0.98/100VAC at full load | |||||||||
|
AC Current |
7A/115 VAC 3.5A/230VAC | |||||||||
|
Efficiency |
76% |
82% |
82% |
82% |
84% |
84% |
86% | |||
|
Inrush Current |
Cold start 20A/115VAC 40A/230VAC | |||||||||
|
Leakage Current |
<1mA/240VAC | |||||||||
|
PROTECTION |
Over Load |
110%~125% | ||||||||
|
Protection: Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
|
Over voltage |
115%¡«135% | |||||||||
|
Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||
|
Over Temp |
RTH2¡Ý95¡æ (Detect on heatsink of Q1,Q7 power transistor & L3 output choke ) | |||||||||
|
Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||
|
FUNCTION |

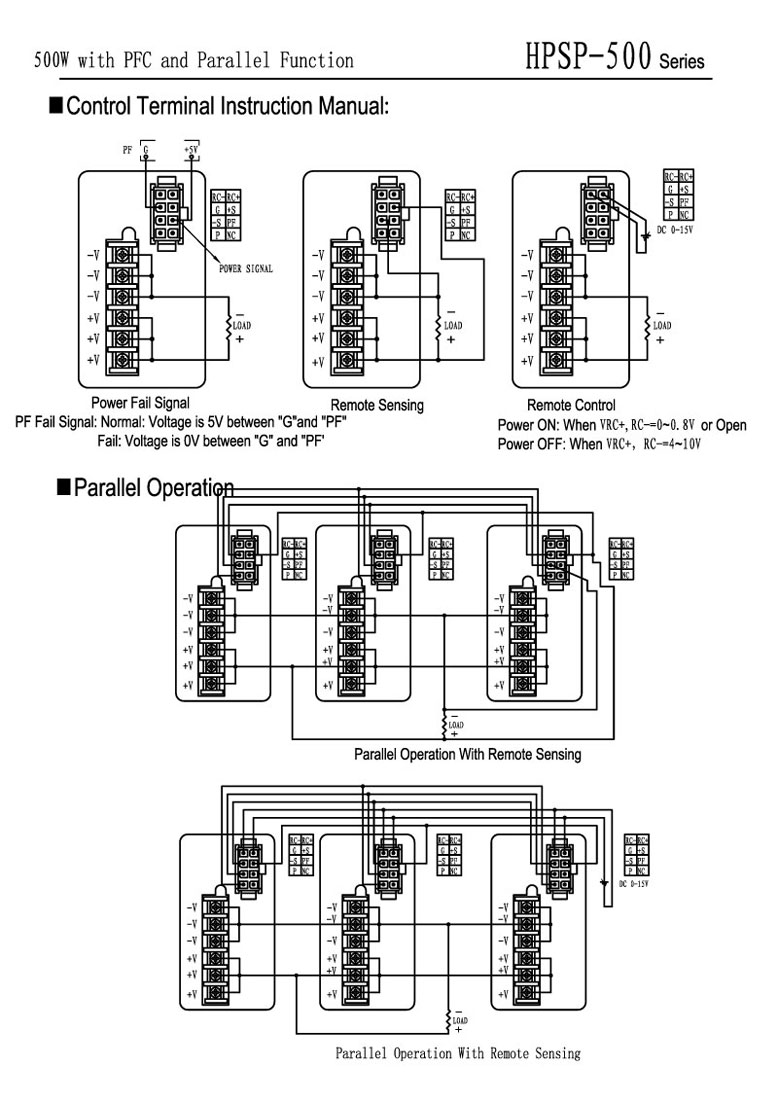

Remote Control |
RC+/RC£:4 ~ 10VDC Power off, <0 ~ 0.8VDC Power on | ||||||||
|
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+60¡æ£»20%¡«90 %RH | ||||||||
|
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH | |||||||||
|
Vibration |
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||
|
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC | ||||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC | |||||||||
|
STANDARD |
Safety Standard |
Design refer to UL1950,TUV EN60950 | ||||||||
|
EMC Standard |
Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024 | |||||||||
|
OTHERS |
Weight |
2.6Kg | ||||||||
|
Packing |
6pcs/16Kg/1.14 CUFT | |||||||||
|
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||||||||
