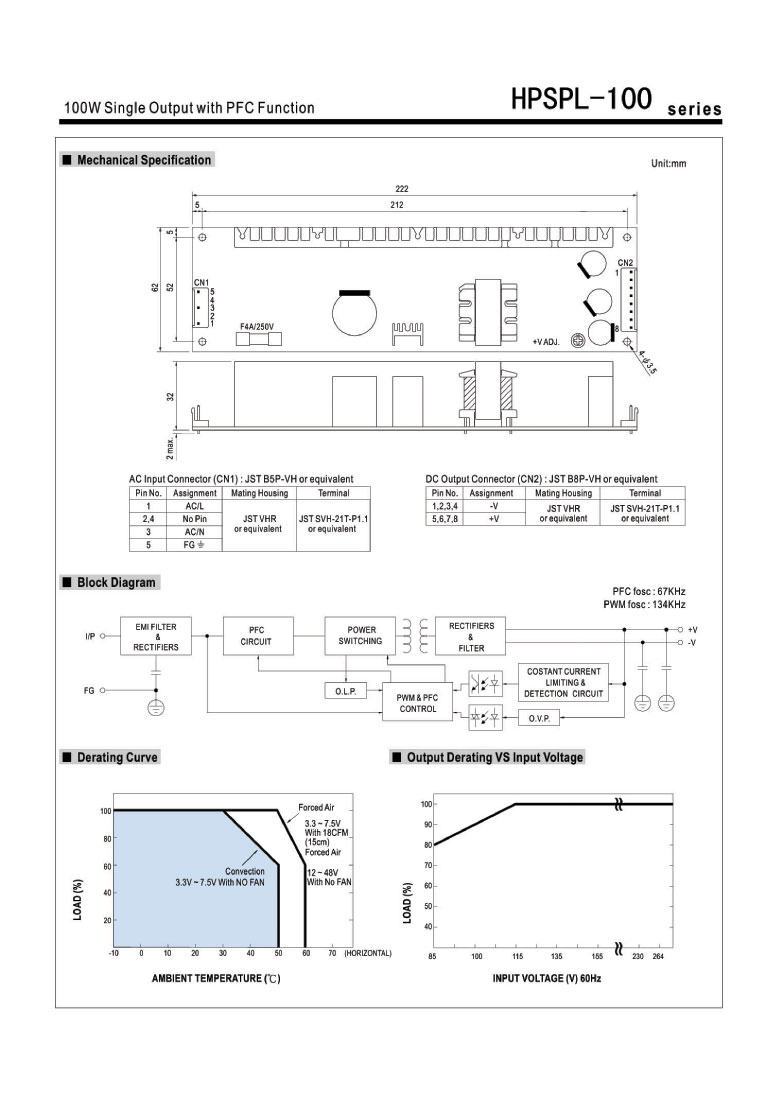

MODEL:HPSPL-100 Single Output Switching Power Supply |
||||||||||||
| ||||||||||||
|
MODEL |
HPSPL-100-3.3 | HPSPL-100-5 | HPSPL-100-7.5 | HPSPL-100-12 | HPSPL-100-13.5 | HPSPL-100-15 | HPSPL-100-24 | HPSPL-100-27 | HPSPL-100-48 | |||
| OUTPUT | DC Voltage | 3.3V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V | ||
| Rated Current | 20A | 20A | 13.5A | 8.5A | 7.5A | 6.7A | 4.2A | 3.8A | 2.1A | |||
| Current Range | 0¡«20A | 0¡«20A | 0¡«13.5A | 0¡«8.5A | 0¡«7.5A | 0¡«6.7A | 0¡«4.2A | 0¡«3.8A | 0¡«2.1A | |||
| Rated Power | 66W | 100W | 101.25W | 102W | 101.25W | 100.5W | 100.8W | 102.6W | 100.8W | |||
| Ripple & Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 250mVp-p | |||
| DC Adjustment Range | 3.14¡«3.63V | 4.75¡«5.5V | 7.13¡«8.25V | 11.4¡«13.2V | 12.8¡«14.9V | 14.3¡«16.5V | 22.8¡«26.4V | 25.7¡«29.7V | 45.6¡«52.8V | |||
| Voltage Tolerance | ¡À2.0% | ¡À2.0% | ¡À2.0% | ¡À2.0% | ¡À2.0% | ¡À2.0% | ¡À1.0% | ¡À1.0% | ¡À1.0% | |||
| Line adjusting rate | ¡À0.5% | ¡À0.5% | ¡À0.5% | ¡À0.5% | ¡À0.5% | ¡À0.5% | ¡À0.5% | ¡À0.5% | ¡À0.5% | |||
| Load adjusting rate | ¡À1.0% | ¡À1.0% | ¡À1.0% | ¡À0.5% | ¡À0.5% | ¡À0.5% | ¡À0.5% | ¡À0.5% | ¡À0.5% | |||
| Setup, Rise Time | 600ms/230VAC 1200m,30ms/115VAC (at full load) | |||||||||||
| Hold Time(Typ.) | 28ms/230VAC 28ms/115VAC ( at full load) | |||||||||||
| INPUT | Voltage Range | 85¡«264VAC or 120¡«370VDC | ||||||||||
| Frequency | 47¡«63Hz | |||||||||||
| PFC | 0PF>0.95/230VAC PF>0.98/115VAC ( at full load ) | |||||||||||
| Efficiency(Typ.) | 69% | 75% | 76% | 79% | 79% | 80% | 83% | 83% | 83% | |||
| Current Range(Typ.) | 1.7A/115VAC 0.75A/230VAC | |||||||||||
| Inrush Current (Typ.) | Cold start £º 30A/230VAC | |||||||||||
| Leakage Current | <2mA/240VAC | |||||||||||
| PROTECTION | Over Load | Rated OUTPUT£º105¡«150% | ||||||||||
| Protection type£ºcurrent limiting,recovers automatically after fault condition is removed. | ||||||||||||
| Over voltage | 3.8¡«4.45V | 5.75¡«6.75V | 8.6¡«10.1V | 13.8¡«16.2V | 15.5¡«18.2V | 17.25¡«20.25V | 27.6¡«32.4V | 31¡«36.45V | 55.2¡«64.8V | |||
| Protection type£ºshut down OUTPUT voltage£¬re-power on to recover. | ||||||||||||
| ENVIRONMENT | Working Temp | -10¡«+60¡æ (see load derating curve) | ||||||||||
| Working Humidity | 20¡«90% no cooling | |||||||||||
| Storage Temp., Humidity | -20¡«+85¡æ, 10 ¡«95% RH | |||||||||||
| Temp. range | ¡À0.05%/¡æ (0¡«50¡æ) | |||||||||||
| Vibration | 10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||||
| Safety & EMC | Safety Standards | Design refer to UL60950-1,TUV EN60950-1 | ||||||||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||||||||
| Isolation Resisitance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC | |||||||||||
| EMC | Design refer to EN55022 (CISPR22) Class B | |||||||||||
| Harmonic Current | Design refer to EN61000-3-2,-3 | |||||||||||
| ESA | Design refer to EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024, heavy industrial class-A standard. | |||||||||||
| OTHERS | Weight | 0.51kg | ||||||||||
| Packing | 24pcs/13.9kg/1.76CUFT | |||||||||||
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered as a component inside the equipment, the final equipment must be confirmed it meets EMC directives. 5.It should derating the output at low input voltage condition, see the derating curve in details. |
|||||||||||
