Features: High efficiency,high reliability AC input range selected by switch 100% full load burn-in test Protection: Short circuit/Over load/Over voltage Fixed switching frequency at 25KHz 1 year warranty

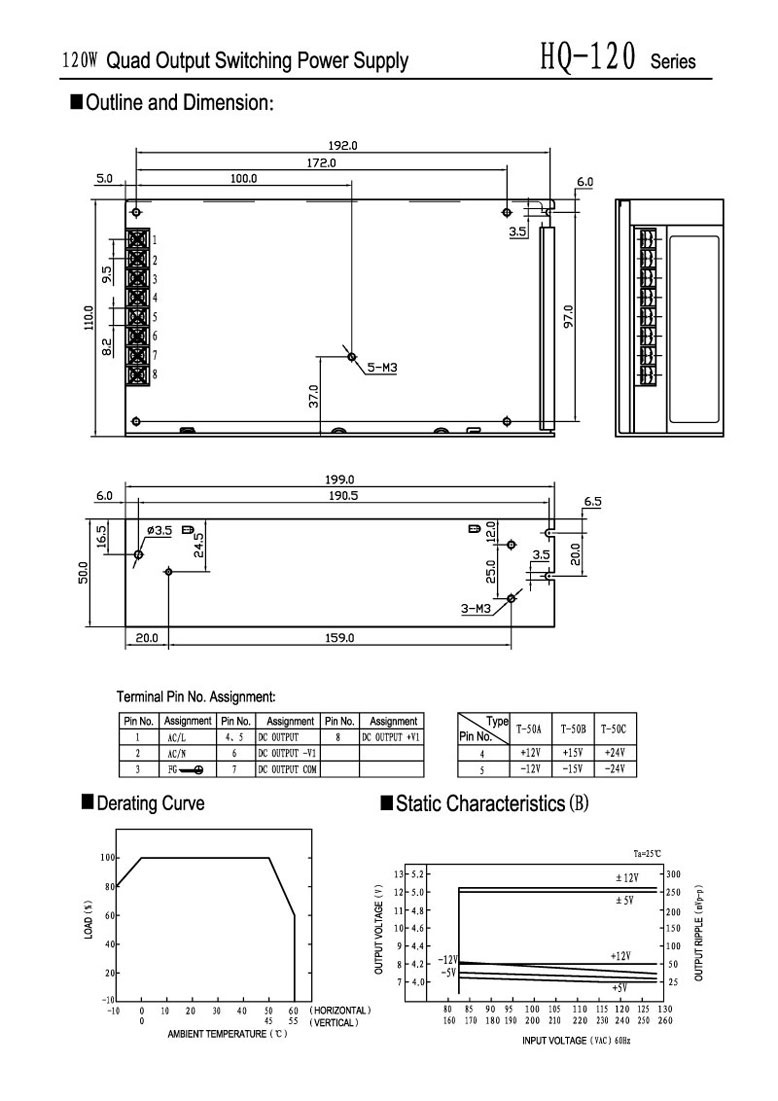

Dimensions: 199*110*50mm(L*W*H)
casing No. : H005
MODEL
HQ-120B
HQ-120C
HQ-120D
CH1
CH2
CH3
CH4
CH1
CH2
CH3
CH4
CH1
CH2
CH3
CH4
OUTPUT
DC Voltage
5V
12V
-5V
-12V
5V
15V
-5V
-15V
5V
12V
24V
-12V
Voltage Tolerance
¡À2%
¡À6%
¡À6%
¡À6%
¡À2%
+10£¬-5%
¡À6%
+10£¬-5%
¡À2%
¡À6%
¡À6%
¡À6%
Rated Current
11A
4A
1A
1A
10A
3.5A
1A
1A
8A
2A
2A
1A
Current Range
2-12A
0.5-5A
0.2-1A
0.2-1A
2-12A
0.5-5A
0.2-1A
0.2-1A
2-12A
0.2-5A
0.2-2A
0.2-1A
Rated Power
120W
122.5W
124W
Ripple & Noise
80mV
120mV
80mV
120mV
80mV
150mV
80mV
150mV
80mV
120mV
180mV
120mV
DC Adjustment Range
CH1£º-5%£¬+10%
Setup, Rise, Hold Time
200ms, 50ms, 20ms at full load
INPUT
Voltage Range
88¡«132 VAC / 176¡«264 VAC 47-63Hz£»Selected by switch 240¡«370VDC
AC Current
2.8A/115 V 1.6A/ 230 V
Efficiency
77%
76%
80%
Inrush Current
Cold start 35A
Leakage Current
£¼3.5mA/240VAC
PROTECTION
Over Load
105%¡«135%
Protection type: Shut down o/p voltage, re-power on to recover
Over Voltage
CH1:115%¡«135%
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity
-10¡æ¡«+60¡æ£»20%¡«90 %RH
Storage Temp., Humidity
-20¡æ¡«+85¡æ£»10%¡«95 %RH
Vibration
10¡«500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P:1.5KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard
Design refer to 1950,TUV EN60950
EMC Standard
Design refer to EN55022(CISPR22),EN61000-3-2,-3,EN55024,EN61000-4-2,3,4,5,6,8,11; ENV50204
OTHERS
Weight
0.86Kg
Packing
22pcs/19.2Kg/1.22CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì
parallel capacitor. 3.Each output can within current range. But total output power can¡¯t exceed rated load. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must
be re-confirmed that it still meets EMC directives.
