MODEL:HQ-60 Quad Output Switching Power Supply

Features:
High efficiency,high reliability
Universal AC input /full range
Protection: Short circuit/Over load/Over voltage
Cooling by free air convection
LED indicator for power on
Fixed switching frequency at 35KHz
1 year warranty

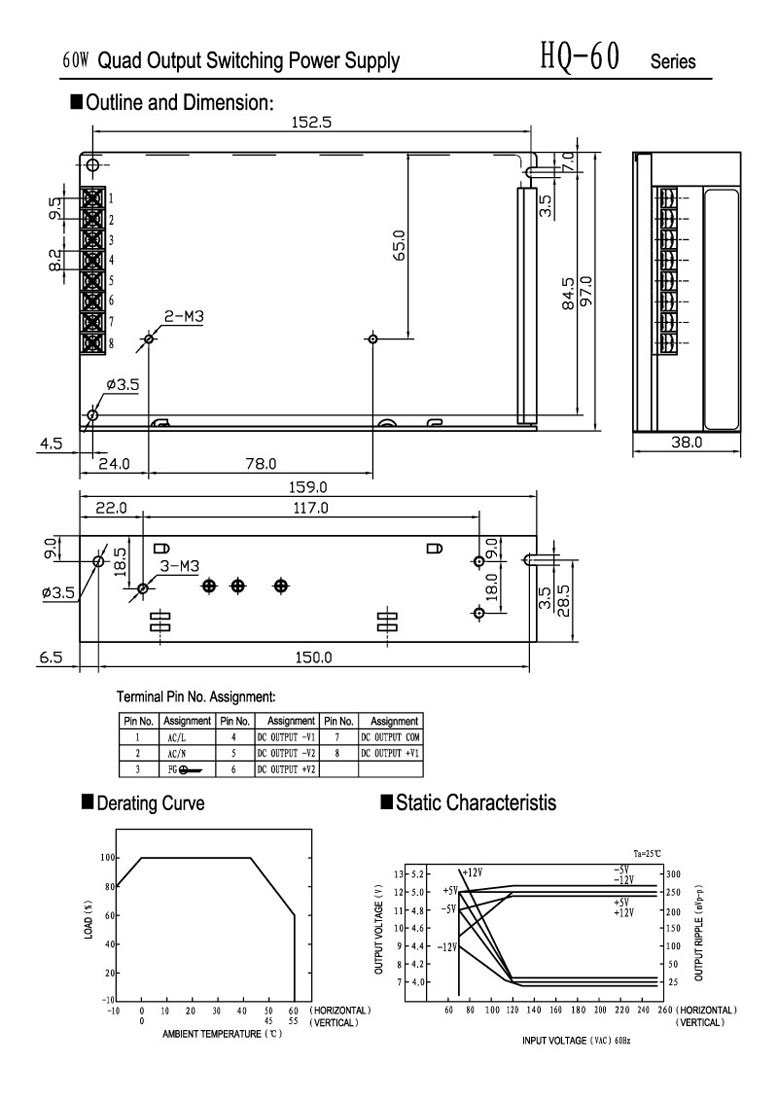

Dimensions: 159*97*38mm(L*W*H)



casing No. : H003

MODEL

HQ-60B

HQ-60C

HQ-60D

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

OUTPUT

DC Voltage

5V

12V

-5V

-12V

5V

15V

-5V

-15V

5V

12V

24V

-12V

Voltage Tolerance

¡À2%

¡À6%

¡À5%

¡À5%

¡À2%

+8,-4%

¡À5%

¡À5%

¡À2%

¡À6%

+8,-4%

¡À5%

Rated Current

5.5A

2A

0.5A

0.5A

5.5A

1.5A

0.5A

0.5A

4A

1A

1A

0.5A

Current Range

0.5-8A

0.1-3A

0-1A

0-1A

0.5-8A

0.1-3A

0-1A

0-1A

0.5~8A

0.1~3A

0.1~1.5A

0~1A

Rated Power

60W

60W

62W

Ripple & Noise

100
mVp-p

120
mVp-p

100
mVp-p

120
mVp-p

100
mVp-p

120
mVp-p

100
mVp-p

120
mVp-p

100
mVp-p

120
mVp-p

150
mVp-p

120
mVp-p

DC Adjustment Range

CH1£º-5%, +10%

Setup, Rise, Hold Time

1600ms,20ms,12ms/115VAC 800ms,20ms, 60ms/230VAC at full load

INPUT

Voltage Range

85¡«264 VAC 47-63Hz£»120¡«370VDC

AC Current

2A/115 V 0.8A/ 230 V

Efficiency

70%

72%

75%

Inrush Current

Cold start 18A/115V 36A/230V

Leakage Current

£¼1 mA/240VAC

PROTECTION

Over Load

105%¡«150% /115VAC

Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed

Over Voltage

5V:115%¡«135%

Protection type: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL60950

EMC Standard

Design refer to EN55022,EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204

OTHERS

Weight

0.56Kg

Packing

30pcs/17.3Kg/0.99CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must
   be re-confirmed that it still meets EMC directives.
