MODEL:HS-100B Single Output Switching Power Supply
Features:
¡¤High efficiency, high reliability
¡¤AC input range selected by switch
¡¤100% full load burn-in test
¡¤Protections: Short circuit / Over load
¡¤Cooling By free air convection
¡¤Fixed switching frequency at 66KHz
¡¤1 year warranty

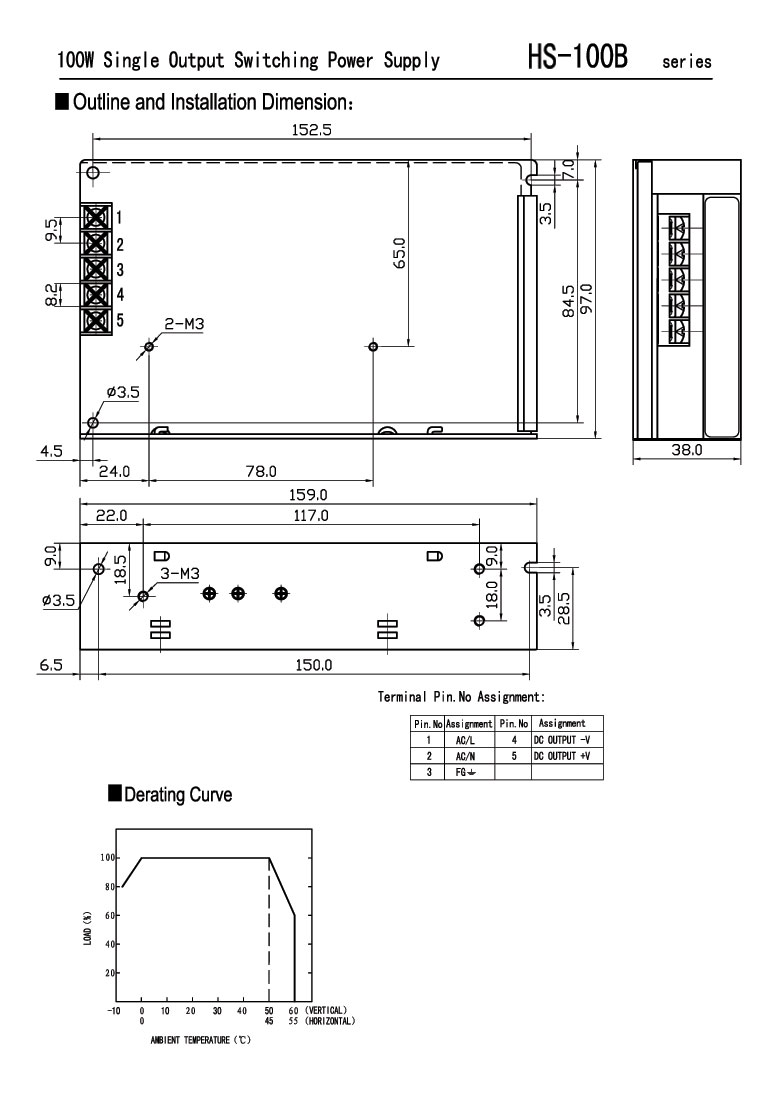

¡¤Dimensions: 159*97*38mm(L*W*H)

casing No. : H003

MODEL

HS-100B
-5

HS-100B
-7.5

HS-100B
-12

HS-100B
-15

HS-100B
-24

HS-100B
-48

OUTPUT

DC Voltage

5V

7.5V

12V

15V

24V

48V

Voltage Tolerance

¡À1%

¡À1%

¡À1%

¡À1%

¡À1%

¡À1%

Rated Current

18A

12A

8.5A

6.7A

4.2A

2.1A

Current Range

0-18A

0-12A

0-8.5A

0-6.7A

0-4.2A

0-2.1A

Rated Power

90W

90W

102W

100.5W

100.8W

100.8W

Ripple & Noise

80mVp-p

80mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

DC Adjustment Range

¡À10%

¡À10%

¡À10%

¡À10%

¡À10%

¡À10%

Setup, Rise, Hold Time

300ms,150ms,20ms

INPUT

Voltage Range

90¡«132VAC/180¡«264 VAC 47~63Hz

AC Current

1.9A/115 1A/ 230 V

Efficiency

80%

80%

83%

83%

85%

86%

Inrush Current

Cold start 50A/230V

Leakage Current

£¼1mA/240VAC

PROTECTION

Over Load

115%¡«160%

Protection: Current limiting, recovers automatically after fault condition is removed

Over Voltage

115%~135% Protection: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ£¬ 20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£¬ 10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P: 1.5KVAC I/P-FG 1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012, EN60950

EMC Standard

Design refer to EN55022£¬EN55024£¬EN61000, IEC801-2,3,4, IEC555-2

OTHERS

Weight

0.51Kg

Packing

30pcs/16.1Kg/0.99CUFT

NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
