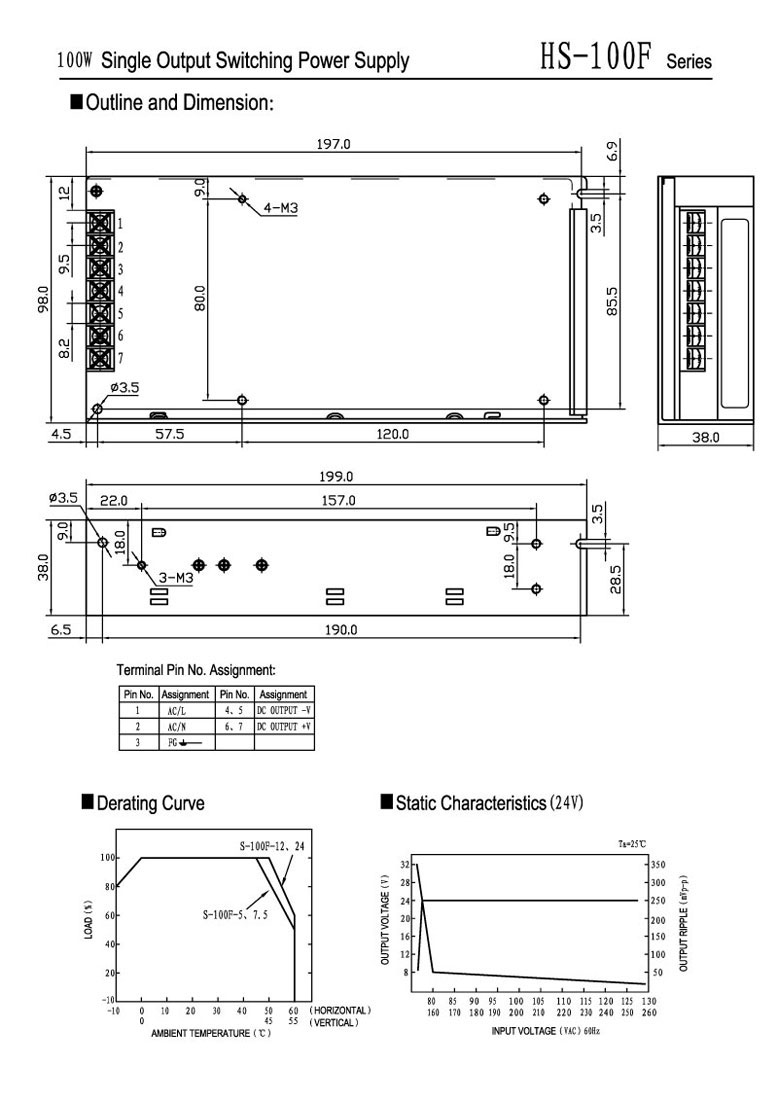

MODEL:HS-100F Single Output Switching Power Supply |
|||||||||||
| |||||||||||
|
MODEL |
HS-100F-5 |
HS-100F-7.5 |
HS-100F-12 |
HS-100F-15 |
HS-100F-24 |
HS-100F-27 |
HS-100F-48 | ||||
|
OUTPUT |
DC Voltage |
5V |
7.5V |
12V |
15V |
24V |
27V |
48V | |||
|
Voltage Tolerance |
¡À2% |
¡À1% |
¡À1% |
¡À1% |
¡À1% |
¡À1% |
¡À1% | ||||
|
Rated Current |
20A |
13.5A |
8.5A |
6.7A |
4.5A |
3.5A |
2.2A | ||||
|
Current Range |
0-20A |
0-13.5A |
0-8.5A |
0-6.7A |
0-4.5A |
0-3.5A |
0-2.2A | ||||
|
Rated Power |
100W |
101W |
102W |
100.5W |
108W |
94.5W |
105.6W | ||||
|
Ripple & Noise |
100mVp-p |
125mVp-p |
125mVp-p |
125mVp-p |
150mVp-p |
150mVp-p |
150mVp-p | ||||
|
DC Adjustment Range |
¡À10% |
¡À10% |
¡À10% |
¡À10% |
¡À10% |
¡À10% |
¡À10% | ||||
|
Setup, Rise, Hold Time |
1s,30ms,15ms at full load | ||||||||||
|
INPUT |
Voltage Range |
88¡«132 VAC/176¡«264VAC 47¡«63 Hz£» selected by switch 248¡«370VDC | |||||||||
|
AC Current |
3.15A/115 V 1.5A/ 230 V | ||||||||||
|
Efficiency |
76% |
78% |
80% |
81% |
83% |
83% |
84% | ||||
|
Inrush Current |
Cold start 30A/115V 60A/230V | ||||||||||
|
Leakage Current |
£¼1 mA/240VAC | ||||||||||
|
PROTECTION |
Over Load |
115%¡«165% | |||||||||
|
Protection: Shut down o/p voltage, re-power on to recover | |||||||||||
|
Over Voltage |
115%¡«135% | ||||||||||
|
Protection: Hiccup mode, recovers automatically after fault condition is removed | |||||||||||
|
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+60¡æ; 20%¡«90 %RH | |||||||||
|
Storage Temp., Humidity |
-20¡æ¡«+85¡æ; 10%¡«95 %RH | ||||||||||
|
Vibration |
10¡«500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||||||||
|
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC | |||||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||||||||||
|
STANDARD |
Safety Standard |
Design refer to UL1012 TUV EN60950 | |||||||||
|
EMC Standard |
Design refer to EN55022£¬EN61000-3-2£¬-3£»EN61000-4-2£¬3£¬4£¬5£¬6£¬8£¬11£»ENV50204£¬EN55024 | ||||||||||
|
OTHERS |
Weight |
0.65Kg | |||||||||
|
Packing |
30pcs/19.8Kg/1.22CUFT | ||||||||||
|
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
||||||||||
