MODEL:HS-100R Single Output Switching Power Supply
Features:
High efficiency,high reliability, water proof
AC input range selected by switch
100% full load burn-in test
PROTECTION:Short circuit/Over load/Over voltage
Forced air cooling by built in DC fan
Built-in cooling Fan ON-OFF control
Fixed switching frequency at 66KHz
1 year warranty

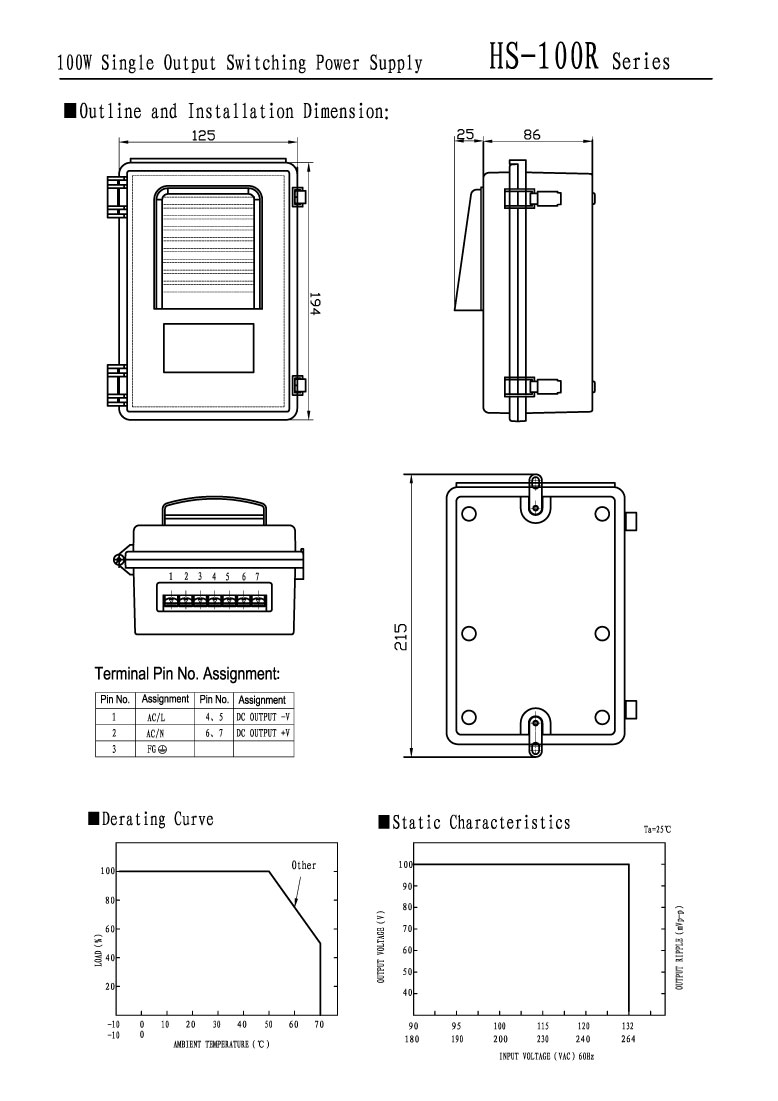

Dimensions: 198¡Á144¡Á111mm(L*W*H)
casing No. : FY-02
MODEL
HS-100R-5
HS-100R-12
HS-100R-15
HS-100R-24
OUTPUT
DC Voltage
5V
12V
15V
24V
Voltage Tolerance
¡À1%
¡À1%
¡À1%
¡À1%
Rated Current
20A
8.5A
6.7A
4.2A
Current Range
0-20A
0-8.5A
0-6.7A
0-4.2A
Rated Power
100W
102W
100.5W
100.8W
Ripple & Noise
80mVp-p
100mVp-p
100mVp-p
100mVp-p
DC Adjustment Range
¡À10%
¡À10%
¡À10%
¡À10%
Setup, Rise, Hold Time
300ms,150ms,20ms
INPUT
Voltage Range
90¡«132VAC/180¡«264 VAC 47~63Hz
AC Current
2.4A/115VAC 1.2A/230VAC
Efficiency
80%
83%
84%
86%
Inrush Current
Cold start 40A/230V
Leakage Current
£¼2mA/240VAC
PROTECTION
Over Load
110%¡«150%
Protection:Hiccup mode, recovers automatically after fault condition is removed
Over Voltage(V)
5.75~6.75V
13.8~16.2V
17.25~20.25V
27.6~32.4V
115%~135% Protection: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity
-10¡æ¡«+60¡æ, 20%¡«90 %RH
Storage Temp., Humidity
-20¡æ¡«+85¡æ, 10%¡«95 %RH
Vibration
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P: 3KVAC I/P-FG 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard
Design refer to UL1012, EN60950
EMC Standard
Design refer to EN55022£¬EN55024£¬EN61000, IEC801-2,3,4, IEC555-2
OTHERS
Weight
0.77kg
Packing
12pcs/10.24kg/2.5CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
