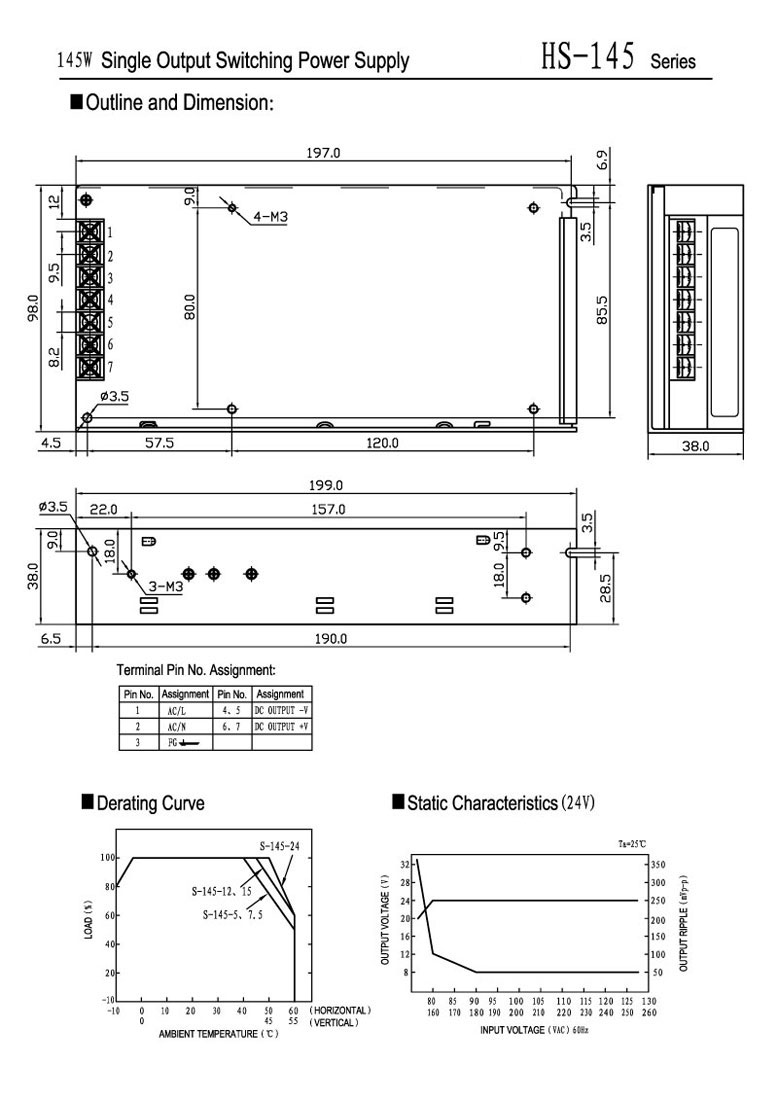

Features: High efficiency,high reliability,low cost AC input range selected by switch 100% full load burn-in test Protection: Short circuit/Over load/Over voltage Cooling by free air convection Fixed switching frequency at 25KHz 1 year warranty Dimensions: 199*98*38mm (L*W*H)
casing No. : H004
MODEL
HS-145-5
HS-145-7.5
HS-145-12
HS-145-15
HS-145-24
HS-145-48
OUTPUT
DC Voltage
5V
7.5V
12V
15V
24V
48V
Voltage Tolerance
¡À2%
¡À1%
¡À1%
¡À1%
¡À1%
¡À1%
Rated Current
25A
18A
12A
9.6A
6A
3A
Current Range
0-25A
0-18A
0-12A
0-9.6A
0-6A
0-3A
Rated Power
125W
135W
144W
144W
144W
144W
Ripple & Noise
100mVp-p
120mVp-p
120mVp-p
120mVp-p
150mVp-p
240mVp-p
DC Adjustment Range
¡À10%
-20%,+10%
-12%,+10%
-12%,+10%
-12%,+16%
-10%,+15%
Setup, Rise, Hold Time
100ms,50ms,20ms at full load
INPUT
Voltage Range
88¡«132 VAC/176¡«264VAC 47¡«63 Hz£»
AC Current
3.2A/115 V 1.6A/ 230 V
Efficiency
78%
80.5%
80.5%
81%
83.5%
82%
Inrush Current
Cold start 35A/230VAC
Leakage Current
£¼3.5 mA/240VAC
PROTECTION
Over Load
115%¡«165%
Protection type: Shut down o/p voltage, re-power on to recover
Over Voltage
115%~135%
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity
-10¡æ¡«+60¡æ; 20%¡«90 %RH
Storage Temp., Humidity
-20¡æ¡«+85¡æ; 10%¡«95 %RH
Vibration
10¡«500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P:1.5KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard
Design refer to UL1012
EMC Standard
Design refer to EN55022,IEC801-2,3,4
OTHERS
Weight
0.71Kg
Packing
30pcs/22kg/1.22CUFT
NOTE
All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì
parallel capacitor.
Tolerance: includes set up tolerance, line regulation and load regulation.
