MODEL:HS-150R Single Output Switching Power Supply |
Features:
Protections:Short circuit/Over load/Over voltage
Forced air cooling by built in DC fan
Built-in cooling Fan ON-OFF control
Built in LED indicator for power on
100% full load burn-in test
Fixed switching frequency at 65KHZ
High efficiency,long life,high reliability,water proof
1 year warranty

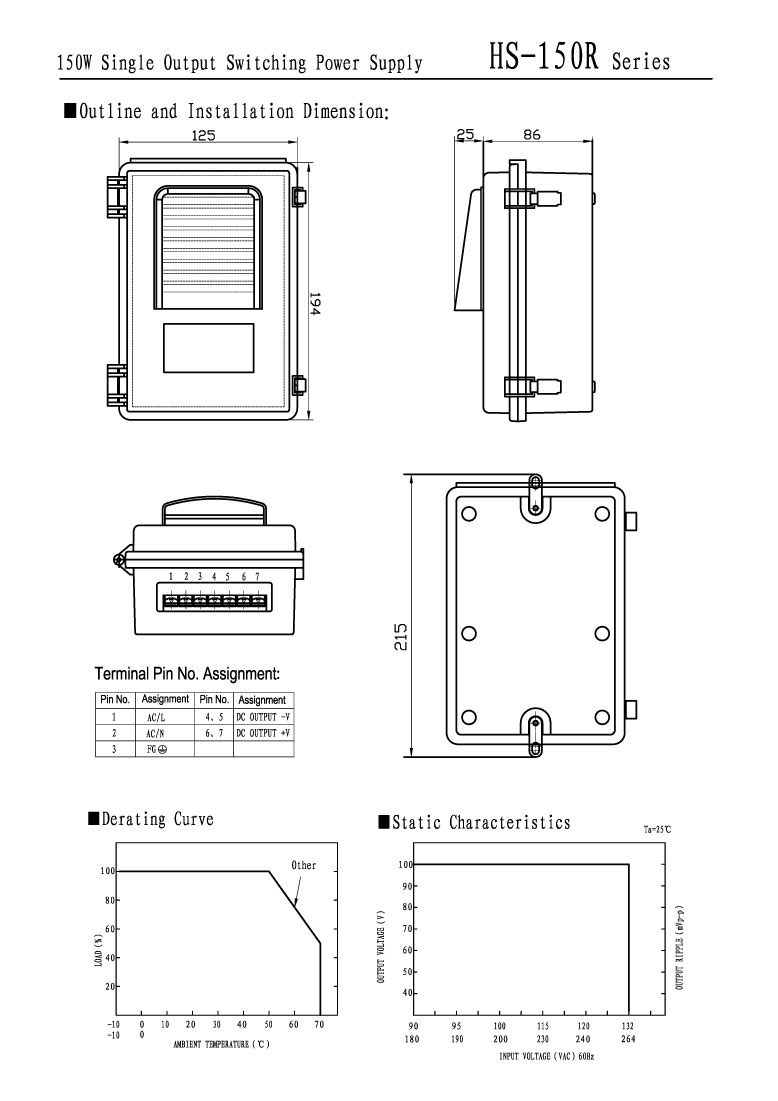

Dimensions: 198¡Á144¡Á111mm (L*W*H) |
casing No. : FY-02 |
|
MODEL |
HS-150R-5 |
HS-150R-12 |
HS-150R-15 |
HS-150R-24 |
OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
Voltage Tolerance |
¡À1.0% |
¡À1.0% |
¡À1.0% |
¡À1.0% |
Rated Current |
26A |
12.5A |
10A |
6.3A |
Current Range |
0-26A |
0-12.5A |
0-10A |
0-6.3A |
Line Regulation |
¡À0.5% |
¡À0.5% |
¡À0.5% |
¡À0.5% |
Load Stability |
¡À0.5% |
¡À0.5% |
¡À0.5% |
¡À0.5% |
Rated Power |
130W |
150W |
150W |
151.2W |
Ripple & Noise |
120mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
DC Adjustment Range |
4.75-5.5V |
10.8-13.2V |
13.5-16.5V |
21.6-26.4V |
Setup, Rise, Hold Time |
800ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load |
Hold Time |
28ms/230VAC 20ms/115VAC at full load |
INPUT |
Voltage Range |
90¡«132VAC /180¡«264 selected by switch, 248¡«373VDC |
AC Current |
3A/115VAC 2A/230VAC |
Frequency |
47~63Hz |
Efficiency |
80% |
83% |
84% |
86% |
AC Current |
3A/115VAC 2A/230VAC |
Inrush Current |
Cold start 40A/230VAC |
Leakage Current |
<2mA / 240VAC |
PROTECTION |
Over Load |
110¡«150% |
Protection: Hiccup mode, recovers automatically after fault condition is removed |
Over Voltage(V) |
5.75¡«6.75V |
13.8¡«16.2V |
17.25¡«20.25V |
27.6¡«32.4V |
Protection: Shut down o/p voltage, re-power on to recover |
ENVIRONMENT |
Working Temp., Humidity |
-10¡«+70¡æ£¬20¡«90% RH |
Storage Temp., Humidity |
-20¡«+85¡æ , 10¡«95% RH |
Vibration |
10¡«500Hz£¬2G 10min./1 cycle£¬period for 60 min. Each along X,Y, Z axes
|
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC |
STANDARD |
Safety Standard |
Design refer to UL1012, EN60950 |
EMC Standard |
Design refer to EN55022 CLASSA |
OTHERS |
Weight |
0.77kg |
Packing |
12pcs/10.24kg/2.5CUFT |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation. |
