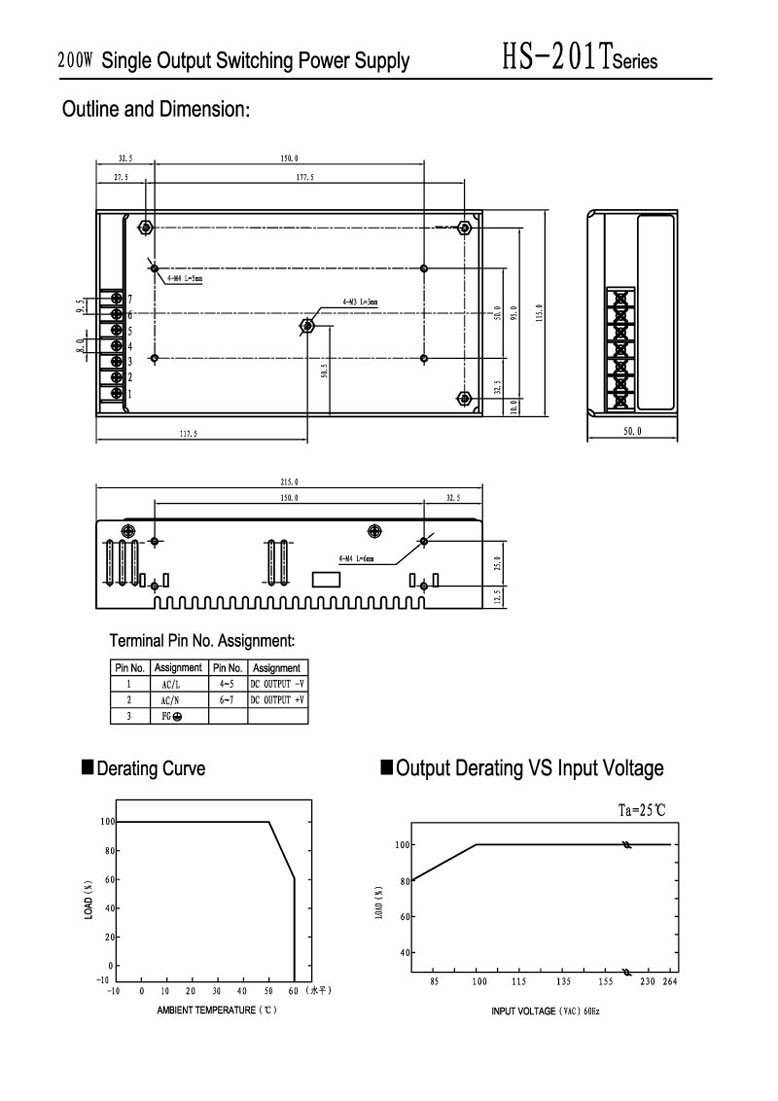

MODEL:HS-201T Single Output Switching Power Supply

MODEL

HS-201T-13.5

OUTPUT

DC Voltage

12V

13.5V

15V

24V

27V

48V

Voltage Tolerance

±1%

±1%

±1%

±1%

±1%

±1%

Rated Current

16.5A

14.7A

13A

8.3A

7.4A

4.2A

Current Range

0-16.5A

0-14.7A

0-13A

0-8.3A

0-7.4A

0-4.2A

Rated Power

198W

198.45W

198W

199.2W

199.8W

201.6W

Ripple & Noise

150mVp-p

150mVp-p

150mVp-p

150mVp-p

200mVp-p

240mVp-p

DC Adjustment Range

-16%,+10%

-12%,+11%

-10%,+20%

-16%,+10%

-4%,+18%

-15%,+17%

Setup, Rise, Hold Time

200ms,100ms,20ms at full load

INPUT

Voltage Range

90～132 VAC/180～264VAC 47～63 Hz；Selected by switch 254～370VDC

AC Current

Efficiency

76%

79%

78%

82%

82%

83%

Inrush Current

50A/115V 50A/230V

Leakage Current

＜3.5 mA/240VAC

PROTECTION

Over Load

115%～135%

Protection: Shut down o/p voltage, re-power on to recover

Over Voltage

115%～135%

Protection: Shut down o/p voltag, recovers automatically after fault condition is removed

Over Temp

RTH3≥90℃，shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

Working Temp., Humidity

-10℃～+50℃；20%～90 %RH

Storage Temp., Humidity

-20℃～+85℃；10%～95 %RH

Vibration

10～500Hz，2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1950

EMC Standard

Drsign refer to FCC Part15 J Conduction Class A

OTHERS

Weight

0.93Kg

Packing

12pcs/11.6Kg/0.93CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
