MODEL:HS-350R Single Output Switching Power Supply |
Features:
High Efficiency,high reliability,low cost,water proof
Universal AC input/ full range
100% full load burn-in test
PROTECTION: Short circuit/Over load/Over voltage
PWM control and regulated
Forced air cooling by built in DC fan
Built-in cooling Fan ON-OFF control
Fixed switching frequency at 25KHz
1 year warranty

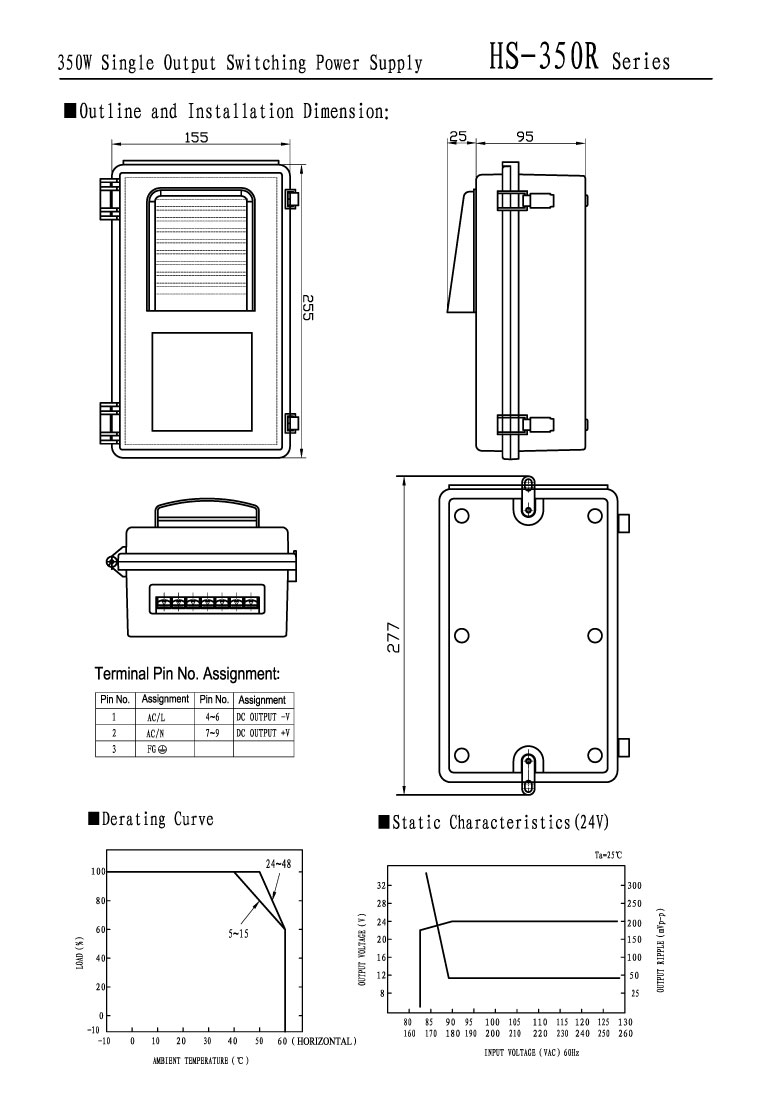

Dimensions 260*174*120mm£¨L*W*H£© |
casing No. : FY-01 |
|
MODEL |
HS-350R-5 |
HS-350R-7.5 |
HS-350R-12 |
HS-350R-13.5 |
HS-350R-15 |
HS-350R-24 |
HS-350R-27 |
HS-350R-48 |
OUTPUT |
DC Voltage |
5V |
7.5V |
12V |
13.5V |
15V |
24V |
27V |
48V |
Voltage Tolerance |
¡À2% |
¡À2% |
¡À1% |
¡À1% |
¡À1% |
¡À1% |
¡À1% |
¡À1% |
Rated Current |
50A |
40A |
29A |
25.8A |
23.2A |
14.6A |
13A |
7.3A |
Current Range |
0-50A |
0-40A |
0-29A |
0-25.8A |
0-23.2A |
0-14.6A |
0-13A |
0-7.3A |
Rated Power |
250W |
300W |
348W |
348.3W |
348W |
350.4W |
351W |
350.4W |
Ripple & Noise |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
240mVp-p |
DC Adjustment Range |
-10%,+12% |
¡À20% |
-16%,+10% |
12%,+11% |
-10%,+20% |
-16%,+10% |
-4%,+18% |
-15%,+17% |
Setup, Rise, Hold Time |
200ms,50ms,20ms at full load |
INPUT |
Voltage Range |
90¡«132 VAC/180¡«264VAC 47¡«63 Hz; selected by switch 254¡«370VDC |
AC Current |
6.5A/115 V 4A/ 230 V |
Efficiency |
74% |
76% |
76% |
79% |
78% |
81% |
82% |
83% |
Inrush Current |
Cold start 50A/115V 50A/230V |
Leakage Current |
£¼3.5 mA/240VAC |
PROTECTION |
Over Load |
105%~135% |
Protection: Shut down o/p voltage, re-power on to recover |
Over Voltage |
115%¡«135% |
Protection:Shut down o/p voltag, recovers automatically after fault condition is removed |
FAN ON/OFF Control |
RT3¡Ý55¡æ FAN ON£¬¡Ü45¡æ FAN OFF,¡Ý80¡æ Shut down o/p (5~7.5V) |
RT3¡Ý65¡æ FAN ON£¬¡Ü55¡æ FAN OFF,¡Ý80¡æ Shut down o/p (12~15V) |
RT3¡Ý70¡æ FAN ON£¬¡Ü60¡æ FAN OFF,¡Ý85¡æ Shut down o/p (24~48V) |
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+60¡æ£»20%¡«90 %RH |
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH |
Vibration |
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
SAFETY |
Withstand Voltage |
I/P-O/P:1.5KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
STANDARD |
Safety Standard |
Design refer to UL1950 |
EMC Standard |
Drsign refer to FCC Part15 J Conduction Class A |
OTHERS |
Weight |
1.4kg |
Packing |
8pcs/12.2kg/2.36CUFT |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
|
|
|
|
|
|
|
