MODEL:HS-350T Single Output Waterproof Power Supply
Features£º
High efficiency, high reliability, low cost
Universal AC input / full range
100% full load burn-in test
Protections: Short circuit/ Over load/ Over voltage
PWM control and regulated
Forced air cooling by built in DC fan
Built-in cooling fan ON-OFF control
Fixed switching frequency at 25KHz 1
year warranty

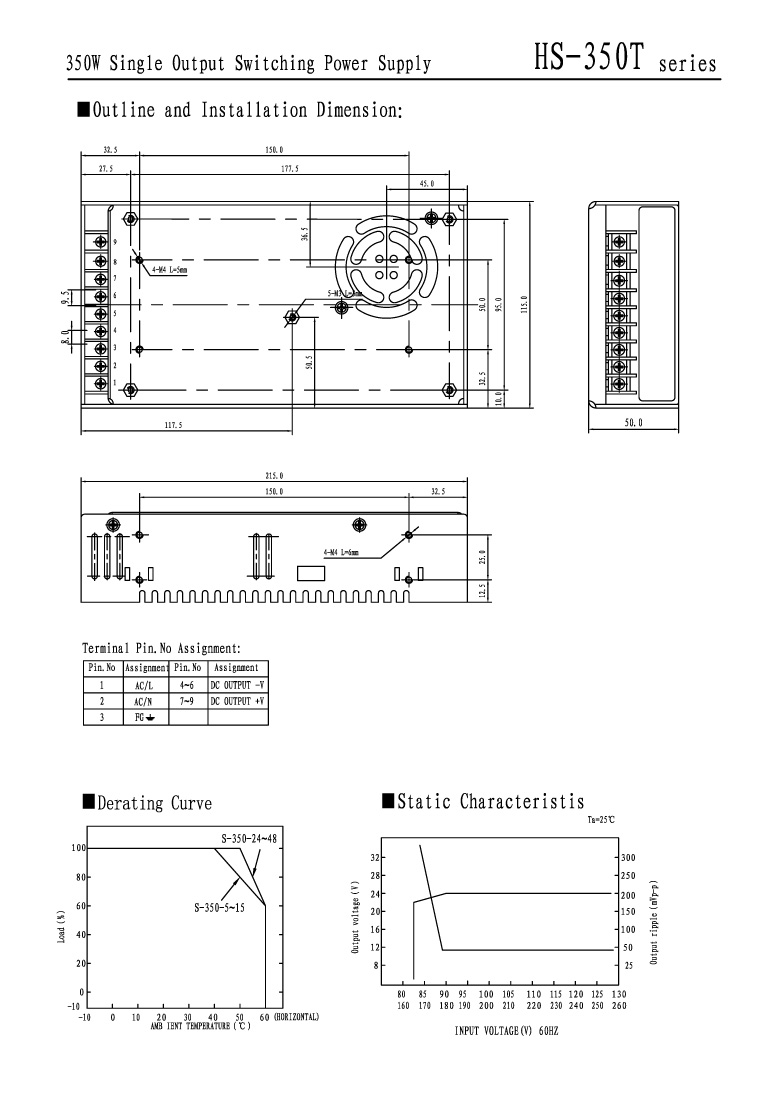

Dimensions: 215*115*50mm£¨L*W*H£©

Shell code£ºH007

MODEL

HS-350T
-5

HS-350T
-7.5

HS-350T
-12

HS-350T
-13.5
HS-350T
-15
HS-350T
-24
HS-350T
-27
HS-350T
-48

Output

DC VOLTAGE

5V

7.5V

12V

13.5V
15V
24V
27V
48V

VOLTAGE TOLERANCE

¡À2%

¡À2%

¡À1%

¡À1%
¡À1%
¡À1%
¡À1%
¡À1%

RATED CURRENT

50A

40A

29A

25.8A
23.2A
14.6A
13A
7.3A

CURRENT RANGE

0-50A

0-40A

0-29A

0-25.8A
0-23.2A
0-14.6A
0-13A
0-7.3A

RATED POWER

250W

300W

348W

348.3W
348W
350.4W
351W
350.4W

Ripple & Noise

150mVp-p

150mVp-p

150mVp-p

150mVp-p
150mVp-p
150mVp-p
200mVp-p
240mVp-p

Voltage adj.range

-10%,+12%

¡À20%

-16%,+10%

-12%,+11%
-10%,+20%
-16%,+10%
-4%,+18%
-15%,+17%

Setup, Rise, Hold time

200ms,50ms,20ms at full load

Input

Voltage Range

90¡«132 VAC/180¡«264VAC 47¡«63 Hz; selected by switch 254¡«370VDC

AC Current

6.5A/115 V 4A/ 230 V

Efficiency

74%

76%

76%

79%
78%
81%
82%
83%

Inrush Current

Cold start current 50A/115V 50A/230V

Leakage Current

£¼3.5 mA/240VAC

Protection

OVER LOAD

105%¡«135%

Protection type: current limiting, recovers automatically after fault condition is removed.

OVER VOLTAGE 115%¡«135%
Protection type: Voltage liminting, recovers automatically after fault condition is removed.
FAN ON/OFF control RT3¡Ý55¡æ fan on, ¡Ü45¡æ fan off, ¡Ý80¡æ output shutdown(5~7.5V)
RT3¡Ý65¡æ fan on, ¡Ü55¡æ fan off, ¡Ý80¡æ output shutdown(12~15V)
RT3¡Ý70¡æ fan on, ¡Ü60¡æ fan off, ¡Ý85¡æ output shutdown(24~48V)

Environment

Working Temp.& humidity

-10¡æ¡«+60¡æ; 20%¡«90 %RH

Storage Temp.& Humidity

-20¡æ¡«+85¡æ; 10%¡«95 %RH

Vibration

10¡«500Hz,2G 10min./1cycle,period for 60min, each along X, Y, Z axes

Safety

Withstand Voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC

Standards

SAFETY STANDARDS

EN60950-1

EMC Standards

EN55022, EN61000-3-2,-3,EN61000-4-2.3.4.5.6.8.11,EN61000-6-2

Others

Weight

11.5Kg

Packing

12pcs/14.3Kg/0.93CUFT

Remark

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient
temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, voltage regulation and current regulation
4. For detail output current, refer to the output derating curves
