MODEL:HS-35T Single Output Waterproof Power Supply

MODEL

HS-35T-5

HS-35T-12

HS-35T-24

HS-35T-48

Output

DC VOLTAGE

5V

12V

24V

48V

VOLTAGE TOLERANCE

±1%

±1%

±1%

±1%

RATED CURRENT

6A

3A

1.5A

0.75A

CURRENT RANGE

0-6A

0-3A

0-1.5A

0-0.75A

RATED POWER

30W

36W

36W

36W

Ripple & Noise

80mVp-p

100mVp-p

100mVp-p

100mVp-p

Setup, Rise, Hold time

800ms,30ms,20ms at full load

Input

Voltage Range

176～264 VAC 47-63Hz; 248～370VDC

AC Current

0.25A/230VAC

Efficiency

77%

81%

83%

84%

Inrush Current

Cold start current 36A/230VAC

Leakage Current

<2mA/240VAC

Protection

OVER LOAD

Protection type: current limiting, recovers automatically after fault condition is removed.

Environment

Working Temp.& humidity

-10℃～+60℃; 20%～90 %RH

Storage Temp.& Humidity

-20℃～+85℃; 10%～95 %RH

Vibration

10～500Hz,2G 10min./1cycle,period for 60min, each along X, Y, Z axes

Safety

Withstand Voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC

Standards

SAFETY STANDARDS

EN60950-1

EMC Standards

符合EN55022, EN61000-3-2,-3,EN61000-4-2.3.4.5.6.8.11,EN61000-6-2

Others

Weight

0.13Kg

Packing

98pcs/14.8Kg/0.99CUFT

Remark

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ &47μ parallel capacitor.
3.Tolerance: includes set up tolerance, voltage regulation and current regulation
4.This power supply as a device installed on the final device, the final device must re-confirm its EMC index

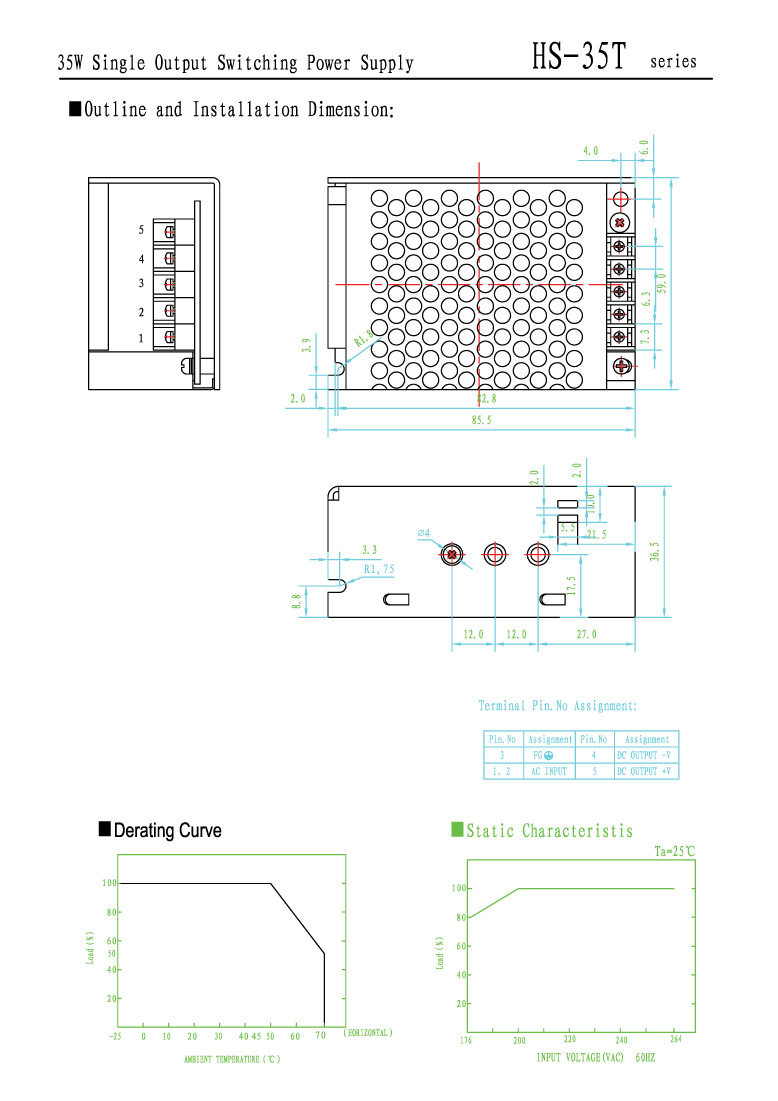

5. For detail output current, refer to the output derating curves
