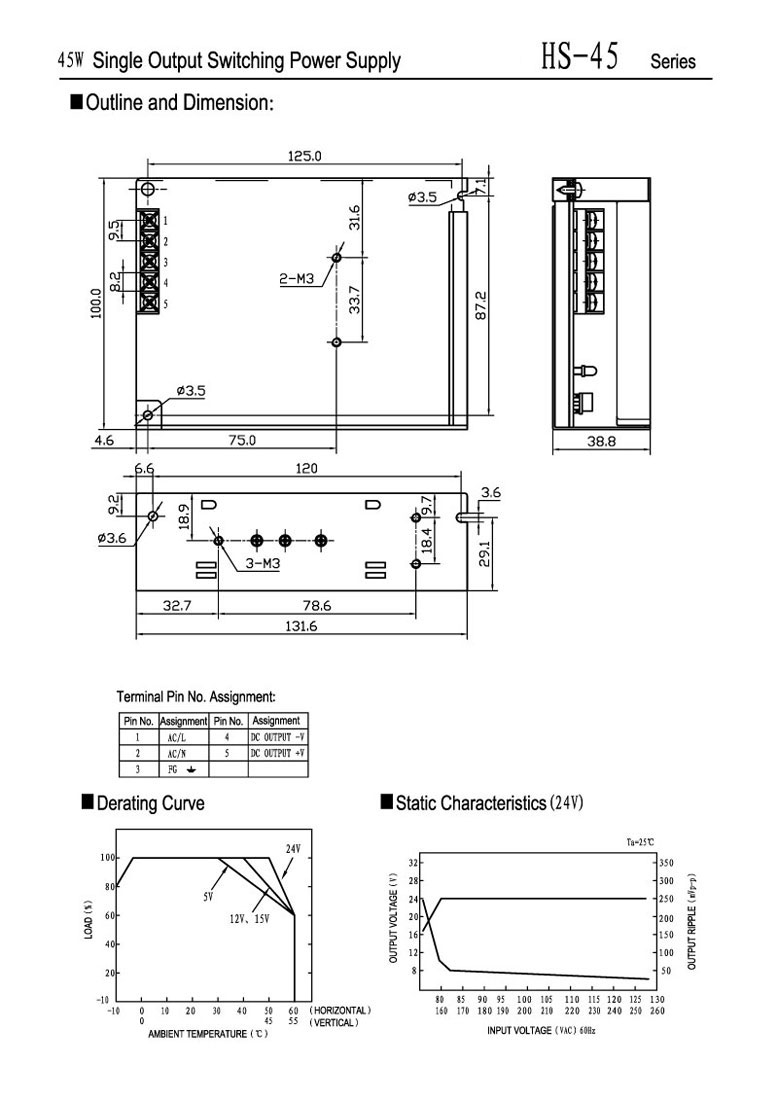

MODEL:HS-45 Single Output Switching Power Supply

MODEL

HS-45-5

HS-45-12

HS-45-15

HS-45-24

OUTPUT

DC Voltage

5V

12V

15V

24V

Voltage Tolerance

±2%

±1%

±1%

±1%

Rated Current

8A

3.7A

3A

1.9A

Current Range

0-8A

0-3.7A

0-3 A

0-1.9A

Rated Power

40W

44.4W

45W

45.6W

Ripple & Noise

90mVp-p

100mVp-p

100mVp-p

100mVp-p

DC Adjustment Range

±10%

±10%

±10%

±10%

Setup, Rise, Hold Time

200ms,100ms,30ms at full load

INPUT

Voltage Range

85~132VAC/170～264VAC ， 47~63Hz; selected by switch 240~370VDC

AC Current

1A/ 115VAC 0.5A/230VAC

Efficiency

70%

76%

78%

78%

Inrush Current

Cold start 18A/115V 36A/230V

Leakage Current

＜2mA/240VAC

PROTECTION

Over Load

110%～160%

Protection: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp., Humidity

-10℃～+60℃；20%～90 %RH

Storage Temp., Humidity

-20℃～+85℃；10%～95 %RH

Vibration

10～500Hz，2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012,

EMC Standard

Design refer to FCC Part15 J Conduction Class B

OTHERS

Weight

0.41Kg

Packing

45pcs/18.8Kg/1.25CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
