MODEL:HS-600 Single Output Switching Power Supply

Features:
High effectiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
100% full load burn-in test
Working Frequncy: 65KHz
Suitable for LED lighten and moving sign applications.
1 year warranty

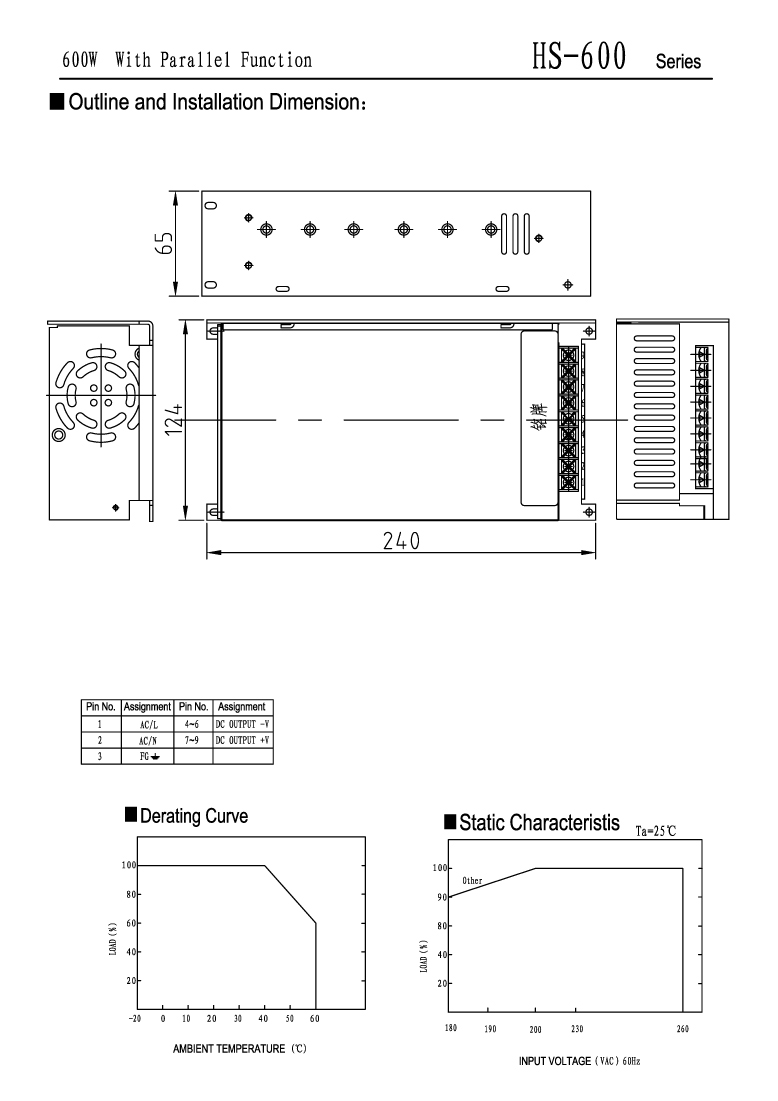

Dimensions: 240*124*65(L*W*H)

Shell code£ºH062

MODEL

HS-600-12

HS-600-24

HS-600 -48

OUTPUT

DC Voltage

12V

24V

48V

Rated Current

50A

25A

12.5A

Current Range

0-50A

0-25A

0-12.5A

Voltage Tolerance

¡À1.0%

¡À1.0%

¡À1.0%

Line Regulation

¡À0.5%

¡À0.5%

¡À0.5%

Load Stability

¡À0.5%

¡À0.5%

¡À0.5%

Rated Power

600W

600W

600W

Ripple & Noise

240mVp-p

240mVp-p

240mVp-p

DC Adjustment Range

10.8 ~ 13.2V

21.6-26.4V

42 ~ 52.8V

INPUT

Voltage Range

180~264VAC£¬ 254~ 373VDC

Frequency

47~63Hz

Efficiency

83%

87%

88%

AC Current

7.5A/230VAC

Inrush Current

Cold start 40A/230VAC

Leakage Current

<2mA / 240VAC

PROTECTION

Over Load

105 ~ 135% Rated Load

Protection type£ºHiccup mode, re-power on to recover

Over voltage

13.8~16.2V

27.6~32.4V

55.2~64.8V

Protection£ºHiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-20~+60¡æ£¬20 ~ 90% RH

Storage Temp., Humidity

-40 ~ +85¡æ , 10 ~ 95% RH

Vibration

10 ~ 500Hz, 2G 10min./ 1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

IP/O/P£º1.5KVAC I/P-FG£º1.5KVAC O/P-FG£º0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC

STANDARD

Safety Standard

EN61347-1 EN61347-2-13

EMC Standard

EN55015 EN61547 EN61000-3.4

OTHERS

Weight

1.3Kg

Packing

8pcs/12.5kg

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.
