MODEL:HSC-15 Single Output Waterproof Power Supply
Features:
High effectiency£¬High reliability, small size
Protections: Short circuit/Over load
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
1 year warranty

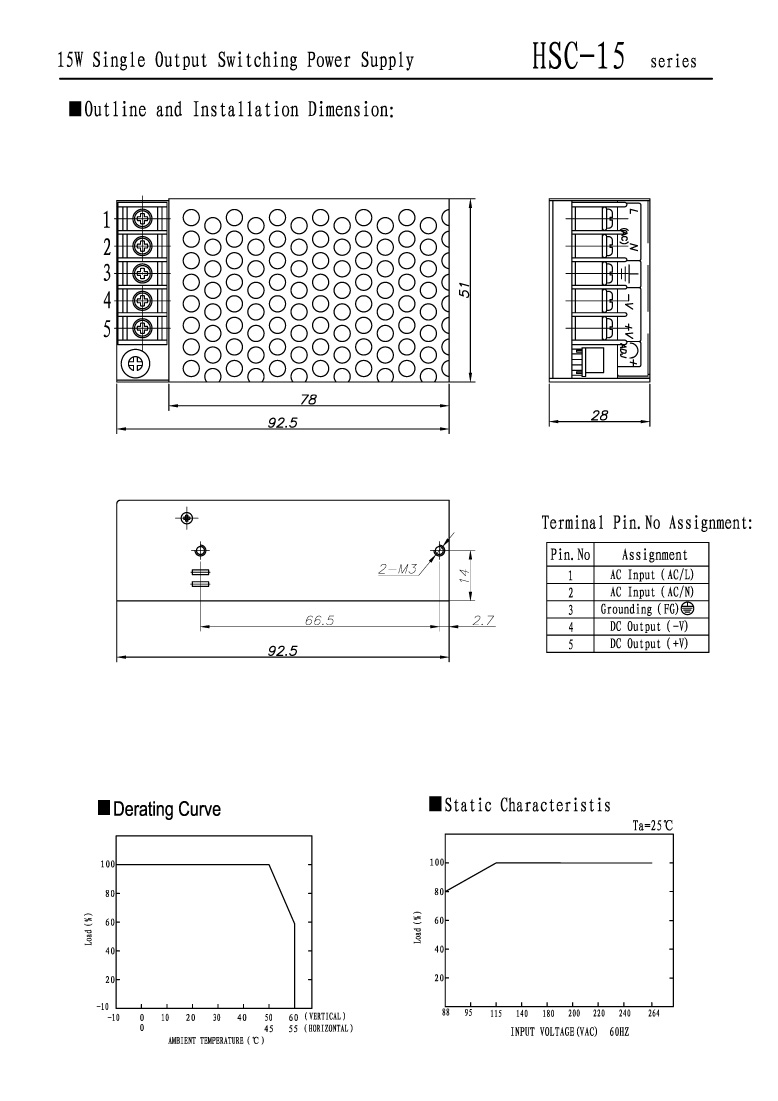

Dimensions:92.5¡Á51¡Á28mm£¨L*W*H£©

Shell code£ºH039

MODEL

HSC-15-5

HSC-15-12

HSC-15-24

OUTPUT

DC VOLTAGE

5V

12V

24V

VOLTAGE TOLERANCE

¡À1%

¡À1%

¡À1%

RATED CURRENT

3A

1.3A

0.7A

CURRENT RANGE

0-3A

0-1.3A

0-0.7A

RATED POWER

15.0W

15.6W

16.8W

Ripple & Noise

80mVp-p

100mVp-p

150mVp-p

Voltage adj.range

-5%¡«+10%

¡À10%

¡À10%

Setup, Rise, Hold time

200ms,100ms,30ms at full load

INPUT

VOLTAGE RANGE

85¡«264VAC 47~63Hz, 248~370VDC

AC CURRENT

0.25A/ 230 V

Efficiency

75%

80%

82%

INRUSH CURRENT

Cold start current35A/230VAC

LEAKAGE CURRENT

£¼0.5 mA/240VAC

PROTECTION

OVER LOAD

110%¡«160%

Protection£ºHiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.HUMIDITY

-10¡æ¡«+60¡æ; 20%¡«90 %RH

STORAGE TEMP.HUMIDITY

-20¡æ¡«+85¡æ; 10%¡«95 %RH

VIBRATION

10¡«500Hz,2G 10min./1cycle,period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC    I/P-FG:1.5KVAC    O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

Standard

SAFETY STANDARDS

EN60950-1

EMC Standard

EN55022, EN61000-3-2,-3,EN61000-4-2.3.4.5.6.8.11,EN61000-6-2

OTHERS

Weight

0.13Kg

PACKING

98pcs/14.8Kg/0.99CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance,voltage regulation and current regulation
