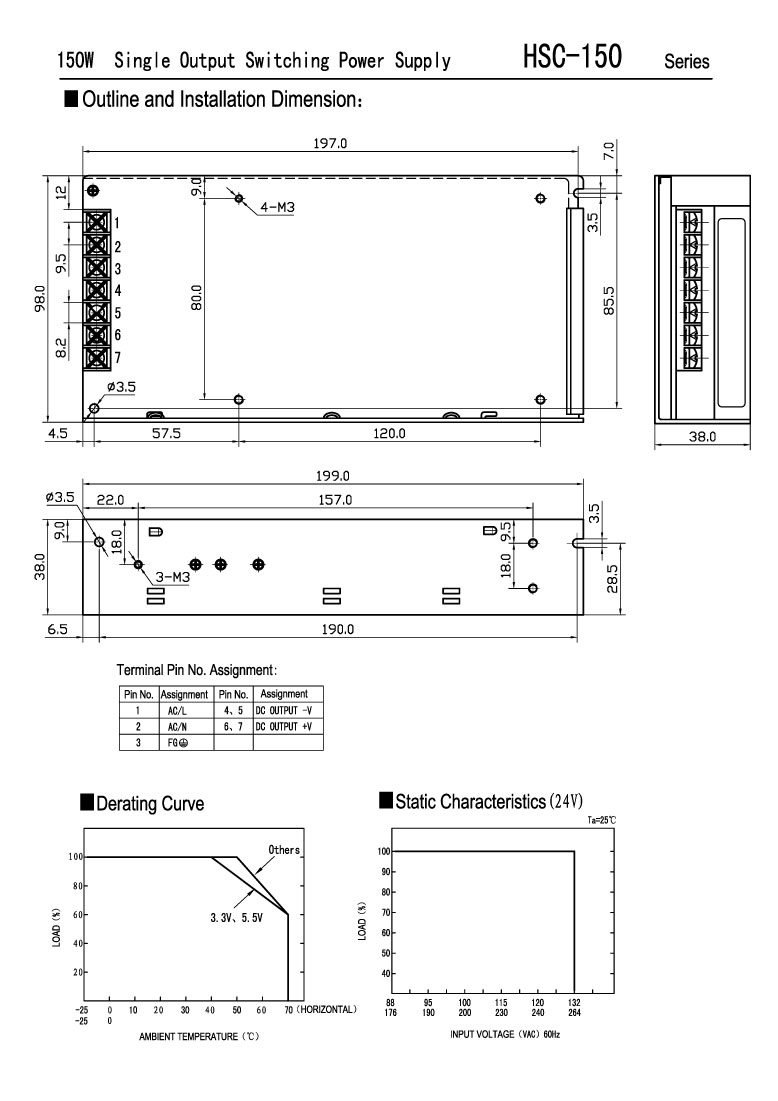

MODEL:HSC-150 Single Output Switching Power Supply

MODEL

HSC-150-3.3

HSC-150-5

HSC-150-12

HSC-150-15

HSC-150-24

HSC-150-48

OUTPUT

DC Voltage

3.3V

5V

12V

15V

24V

48V

Rated Current

30A

26A

12.5A

10A

6.5A

3.3A

Current Range

0-30A

0-26A

0-12.5A

0-10A

0-6.5A

0-3.3A

Voltage Tolerance

±3.0%

±2.0%

±1.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

Load Stability

±2.0%

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

Rated Power

99W

130W

150W

150W

156W

158.4W

Ripple & Noise

80mVp-p

80mVp-p

120mVp-p

120mVp-p

120mVp-p

120mVp-p

DC Adjustment Range

3.1 ~ 3.6V

4.75 ~ 6.75V

10.8 ~ 13.2V

13.5~ 16.5V

21.6-26.4V

42 ~ 52.8V

Setup, Rise Time

800ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load

Hold Time

28ms/230VAC 20ms/115VAC at full load

INPUT

Voltage Range

88 ~ 132VAC /176~264 selected by switch, 248 ~ 373VDC

Frequency

47~63Hz

Efficiency

74%

78%

83%

84%

86%

87%

AC Current

3A/115VAC 2A/230VAC

Inrush Current

Leakage Current

<2mA / 240VAC

PROTECTION

Over Load

110 ~ 160%

Protection: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

3.8~ 4.45V

5.75~6.75V

13.8~16.2V

17.25~20.25V

27.6~32.4V

55.2~64.8V

Protection: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

Storage Temp., Humidity

-40 ~ +85℃ , 10 ~ 95% RH

Vibration

10 ~ 500Hz, 5G 10min./ 1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC

STANDARD

Safety Standard

Design refer to UL

EMC Standard

Design refer to EN55022 CLASSA

OTHERS

Weight

0.7Kg

Packing

30pcs/21.5Kg/1.22CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

3.Tolerance: includes set up tolerance, line regulation and load regulation.
