MODEL:HSC-25 Single Output Waterproof Power Supply
Features:
High effectiency£¬High reliability, small size
Protections: Short circuit/Over load
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
1 year warranty

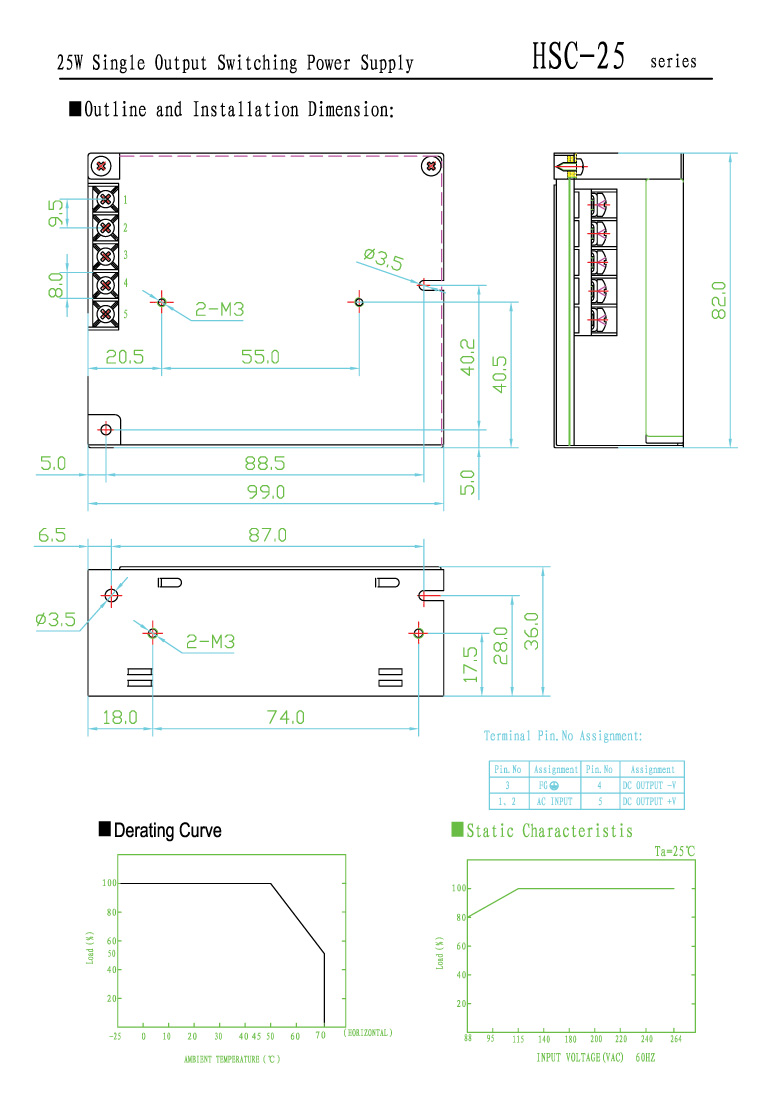

Dimensions:99*82*36mm(L*W*H)

Shell code£ºH039

MODEL

HSC-25-3.3

HSC-25-5

HSC-25-12

 HSC-25-15 HSC-25-24 HSC-25-48

OUTPUT

DC VOLTAGE

3.3V

5V

12V
15V
24V
48V

VOLTAGE TOLERANCE

¡À3%

¡À2%

¡À1%
¡À1%
¡À1%
¡À1%
LOAD
REGULATION
¡À2%
¡À1%
¡À0.5%
¡À0.5%
¡À0.5%
¡À0.5%
LINE
REGULATION
¡À0.5%
¡À0.5%
¡À0.5%
¡À0.5%
¡À0.5%
¡À0.5%

RATED CURRENT

5A

5A

2.1A
1.7A
1.1A
0.55A

CURRENT RANGE

0-5A

0-5A

0-2.1A
0-1.7A
0-1.1A
0-0.55A

RATED POWER

16.5W

25W

25.2W
25.5W
26.4W
26.4W

Ripple & Noise

80mVp-p

80mVp-p

120mVp-p
120mVp-p
120mVp-p
200mVp-p

Voltage adj.range

2.9-3.6V

4.5-5.5V

10.8-13.2V
13.5-16.5V
22-26.4V
42-52.8V

Setup, Rise, Hold time

500ms¡¢30ms¡¢80ms /230VAC 1200ms¡¢30ms¡¢15ms /115VAC at full load

INPUT

VOLTAGE RANGE

AC 88¡«264VAC DC 125¡«370VDC

AC CURRENT

0.55A/ 230 V 0.8A/115V

Efficiency

73%

77%

81%

 83% 84% 84%

INRUSH CURRENT

Cold start current 36A/230VAC

LEAKAGE CURRENT

<2mA/240VAC

PROTECTION

OVER LOAD

110%¡«150%

Protection£ºHiccup mode, recovers automatically after fault condition is removed
Over Voltage 3.8-4.45V 5.75-6.75V 13.8-16.2V 17.25-20.25V 27.6-32.4V 55.2-64.8V

Protection£ºHiccup mode,recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.HUMIDITY

-25¡æ¡«+70¡æ; 20%¡«90 %RH refer to the output derating curves

STORAGE TEMP.HUMIDITY

-40¡æ¡«+85¡æ; 10%¡«95 %RH

VIBRATION

10¡«500Hz£¬5G 10min./1cycle£¬period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

Standards

SAFETY STANDARDS

EN60950-1

EMC Standard

EN55022, EN61000-3-2,-3,EN61000-4-2.3.4.5.6.8.11,EN61000-6-2

OTHERS

Weight

0.23Kg

PACKING

60pcs/14.5Kg/1.13CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, voltage regulation and current regulation
