MODEL:HSC-35 Single Output Switching Power Supply
Features:


Little volume¡¢high efficiency¡¢long life and high reliability
Universal AC input/full range
Protections£ºShort circuit/Over load/Over voltage
Cooling By free air convection
LED indicator for power on
100% full load burn-in test
2 year warranty

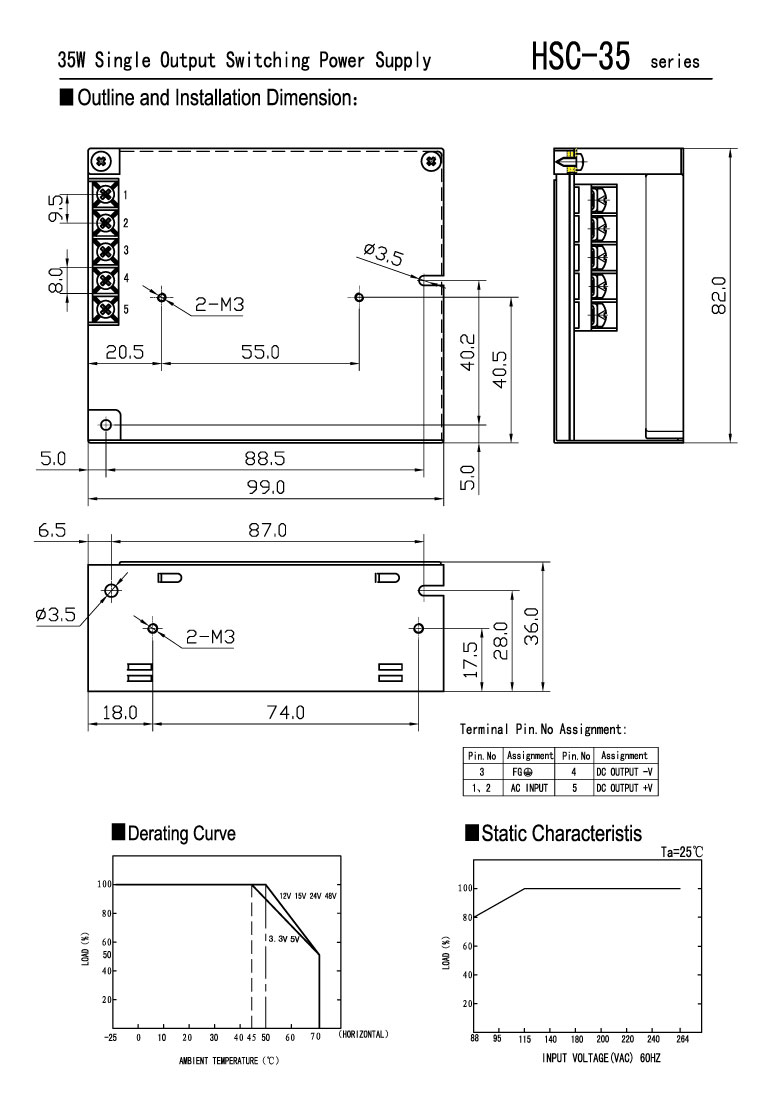

Dimension: 99*82*36mm(L*W*H )

ÈÏÖ¤:CE    casing No. : H040

MODEL

HSC-35-3.3

HSC-35-5

HSC-35-12
HSC-35-15
HSC-35-24
HSC-35-48

OUTPUT

DC Voltage

3.3V

5V

12V

15V
24V
48V

Voltage Tolerance

¡À3%

¡À2%

¡À1%

¡À1%
¡À1%
¡À1%

Load Stability

¡À2%

¡À1%

¡À0.5%

¡À0.5%
¡À0.5%
¡À0.5%

Line Regulation

¡À0.5%

¡À0.5%

¡À0.5%

¡À0.5%
¡À0.5%
¡À0.5%

Rated Current

6A

6A

3A

2.4A
1.5A
0.8A

Current Range

0-6A

0-6A

0-3A

0-2.4A
0-1.5A
0-0.8A

Rated Power

19.9W

30W

36W

36W
36W
38.4W

Ripple & Noise

80mVp-p

80mVp-p

120mVp-p

120mVp-p
120mVp-p
120mVp-p

DC Adjustment Range

2.9-3.6V

4.5-5.5V

10.8-13.2V

13.5-16.5V
22-26.4V
42-52.8V

Setup, Rise, Hold Time

500ms¡¢30ms¡¢80ms /230VAC    1200ms¡¢30ms¡¢15ms /115VAC at full load

INPUT

Voltage Range

AC 88¡«264VAC    DC 125¡«370VDC

AC Current

0.55A/ 230 V     0.8A/115V

Efficiency

73%

77%

81%
83%
84%
84%

Inrush Current

Cold start 36A/230VAC

Leakage Current

£¼2 mA/240VAC

PROTECTION

Over Load

110%¡«150%

Protection: Hiccup mode, recovers automatically after fault condition is removed

Short circuit

Protection: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

3.8-4.45V

5.75-6.75V
13.8-16.2V
17.25-20.25V
27.6-32.4V
55.2-64.8V

Protection: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-25¡æ¡«+70¡æ£»20%¡«90 %RH(Refer to output load derating curve)

Storage Temp., Humidity

-40¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬5G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC     I/P-O/P:1.5KVAC     O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

STANDARD

Safety Standard

UL60950-1,TUV EN60950-1 Approved

EMC Standard

Design refer to EN55022 CLASS

OTHERS

Weight

0.3Kg

Packing

60pcs/18Kg/0.9CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
