MODEL:HSC-50 Single Output Switching Power Supply
Features:

¡¤Little volume¡¢high efficiency¡¢long life and high reliability
¡¤Universal AC input/full range
¡¤Protections£ºShort circuit/Over load/Over voltage
¡¤Cooling By free air convection
¡¤LED indicator for power on
¡¤100% full load burn-in test
¡¤1 year warranty

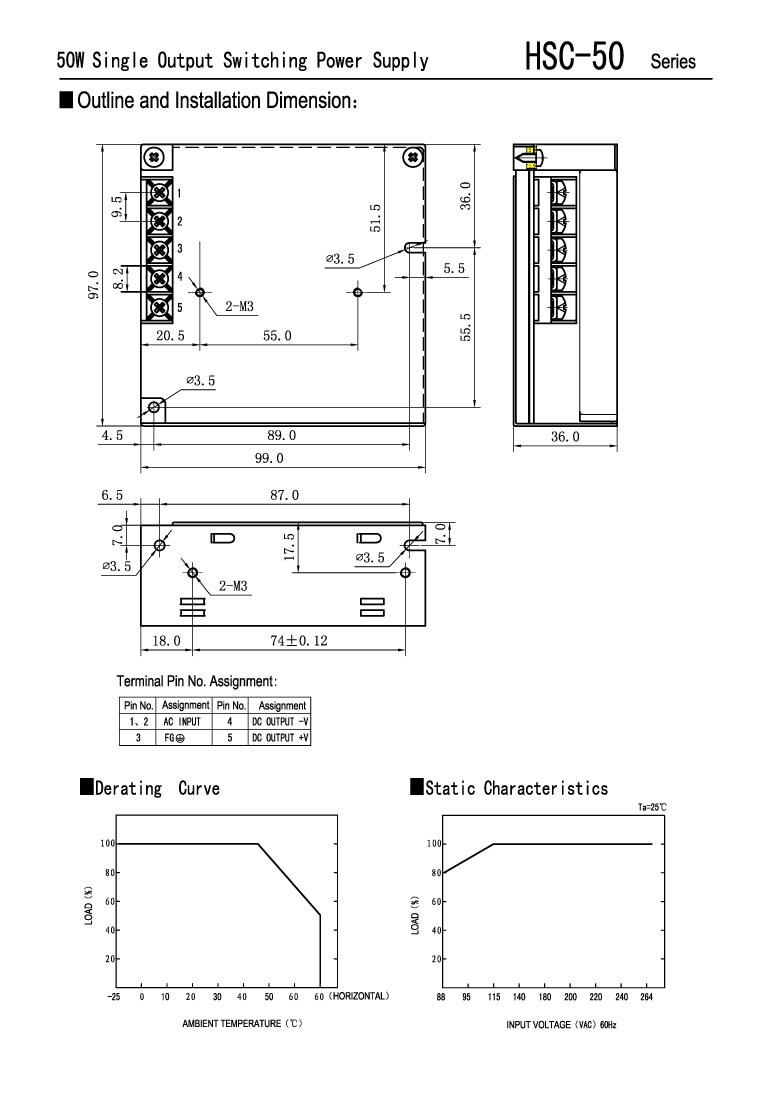

¡¤Dimension: 99*97*36mm(L*W*H )

ÈÏÖ¤:CE    casing No. : H001

MODEL

HSC-50-3.3

HSC-50-5

HSC-50-12
HSC-50-15
HSC-50-24
HSC-50-48

OUTPUT

DC Voltage

3.3V

5V

12V

15V
24V
48V

Voltage Tolerance

¡À3%

¡À2%

¡À1%

¡À1%
¡À1%
¡À1%

Load Stability

¡À2%

¡À1%

¡À0.5%

¡À0.5%
¡À0.5%
¡À0.5%

Line Regulation

¡À0.5%

¡À0.5%

¡À0.5%

¡À0.5%
¡À0.5%
¡À0.5%

Rated Current

8A

8A

4.2A

3.4A
2.2A
1.1A

Current Range

0-8A

0-8A

0-4.2A

0-3.4A
0-2.2A
0-1.1A

Rated Power

26.4W

40W

50.4W

51W
52.8W
52.8W

Ripple & Noise

80mVp-p

80mVp-p

120mVp-p

120mVp-p
120mVp-p
200mVp-p

DC Adjustment Range

3.1-3.6V

4.75-5.5V

10.8-13.2V

13.5-16.5V
21.6-26.4V
42-52.8V

Setup, Rise, Hold Time

500ms¡¢20ms¡¢60ms /230VAC     1200ms¡¢30ms¡¢14ms /115VAC at full load

INPUT

Voltage Range

AC 88¡«264VAC    DC 125¡«370VDC

AC Current

0.8A/ 230 V   1.3A/115V

Efficiency

72%

78%

81%
83%
84%
86%

Inrush Current

Cold start 33A/230VAC

Leakage Current

£¼2 mA/240VAC

PROTECTION

Over Load

110%¡«160%

Protection: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

3.8-4.45V

5.75-6.75V
13.8-16.2V
17.25-20.25V
27.6-32.4V
55.2-64.8V

Protection: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-25¡æ¡«+70¡æ£»20%¡«90 %RH(Refer to output load derating curve)

Storage Temp., Humidity

-40¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬5G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC     I/P-O/P:1.5KVAC     O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

STANDARD

Safety Standard

UL60950-1,TUV EN60950-1 Approved

EMC Standard

Design refer to EN55022 CLASS

OTHERS

Weight

0.41Kg

Packing

45pcs/19.5Kg/0.9CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
