MODEL:HSCN-800 Single Output Switching Power Supply |
Features:
¡¤ High reliability, low ripple
¡¤ AC input range selected by switch
¡¤ Protections: Short circuit/ Over load/ Over voltage/ Over temperature

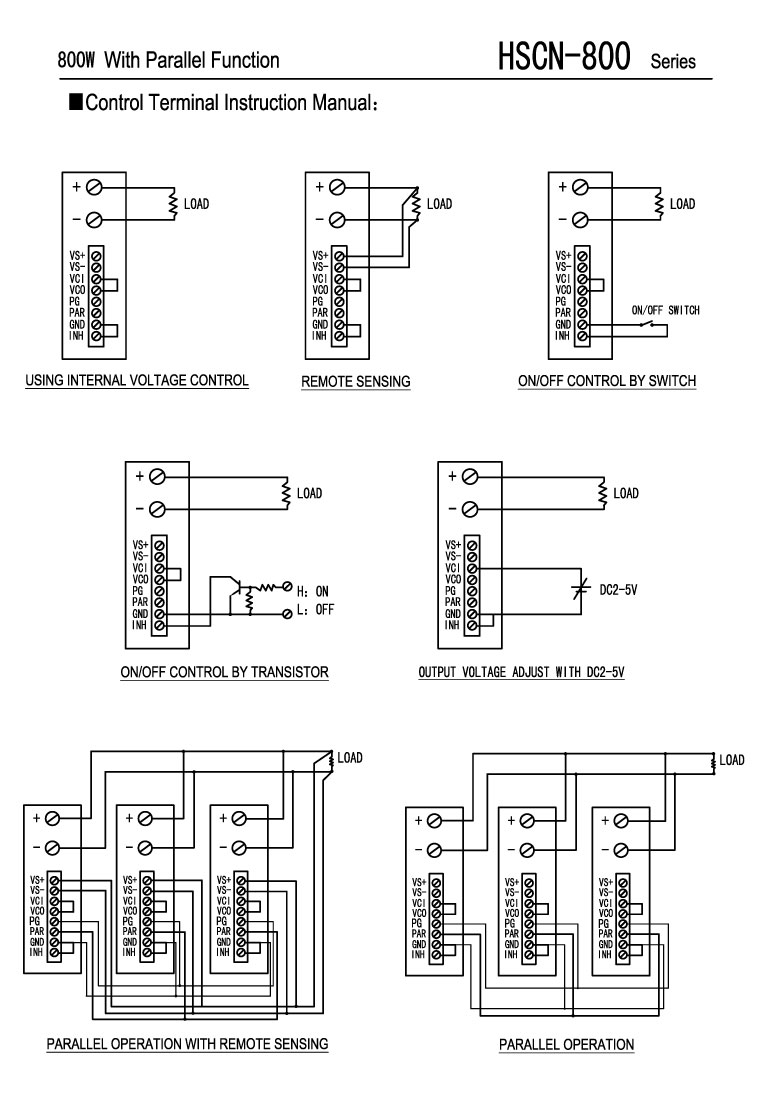

¡¤ Built-in remote ON-OFF control and remote sense function
¡¤ With parallel function
¡¤ Can adjust from 20%~100% output voltage by external control 1-5V
¡¤ Forced air cooling by built-in DC fan
¡¤ 1 year warranty

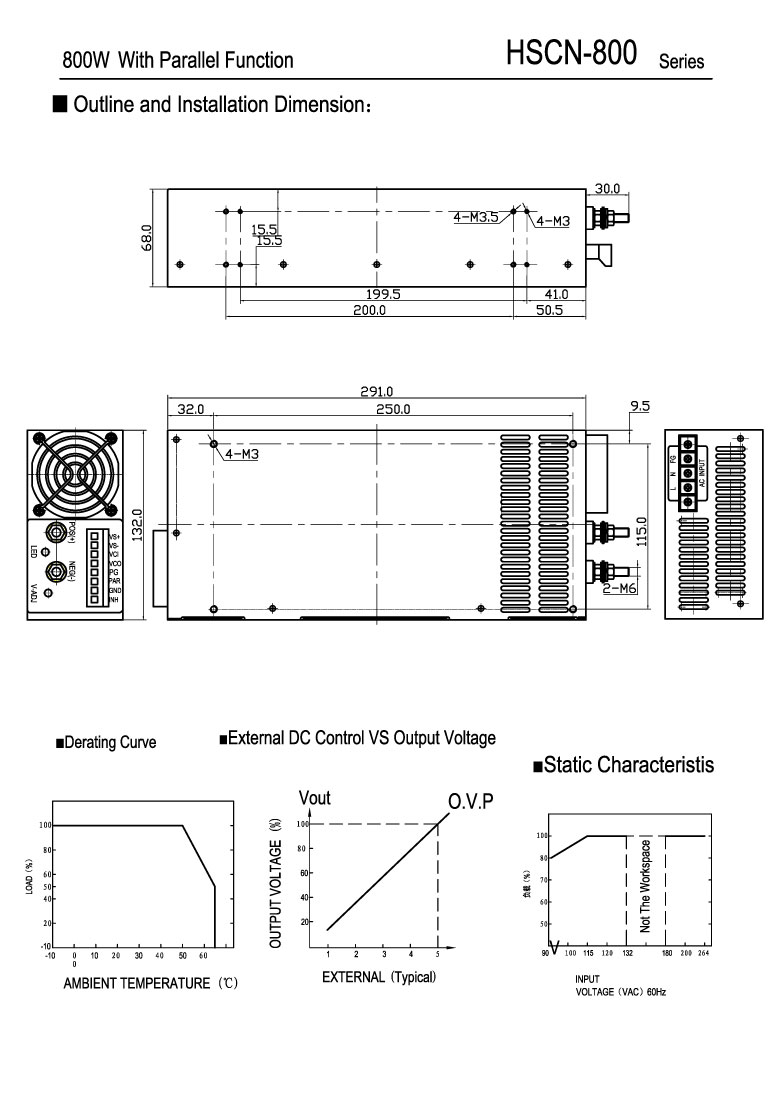

¡¤ Dimensions: 291*132*68mm£¨L*W*H£© |
casing No. : H031 |
|
MODEL |
HSCN-800-12 |
HSCN-800-15 |
HSCN-800-24 |
HSCN-800-48 |
OUTPUT |
DC Voltage |
12V |
15V |
24V |
48V |
Voltage Tolerance |
¡À1% |
¡À1% |
¡À1% |
¡À1% |
Rated Current |
66A |
54A |
33A |
16.6A |
Current Range |
0-66A |
0-54A |
0-33A |
0-16.6A |
Rated Power |
800W |
800W |
800W |
800W |
Ripple & Noise |
150mVp-p |
150mVp-p |
240mVp-p |
480mVp-p |
DC Adjustment Range |
¡À5%; Can adjust from 40%~100% output voltage by external control 2-5V |
Setup, Rise, Hold Time |
800ms, 50ms, 16ms at full load |
INPUT |
Voltage Range |
90¡«130VAC / 180¡«260 VAC47¡«63 Hz£»selected by switch260¡«370VDC |
AC Current |
13A/115 VAC 8.0A/ 230 VAC |
Efficiency |
80% |
81% |
85% |
87% |
Inrush Current |
60A/230V |
Leakage Current |
3.5 mA/240VAC |
PROTECTION |
Over Load |
110%¡«135% |
Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recover |
Over Voltage |
110%~135% |
Protection type: Shut down o/p voltage, re-power on to recover |
Over Temp |
TSW1(Power transistor) When temp. >100 ¡æ, shut down o/p voltage, re-power on to recover |
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+65¡æ£¬20%¡«90 %RH |
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£¬10%¡«95 %RH |
Vibration |
10¡«200Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
SAFETY |
Withstand Voltage |
I/P-O/P, I/P-FG:1500VAC |
Isolation Resistance |
I/P-O/P, I/P-FG, >100M Ohms / 500VDC |
STANDARD |
Safety Standard |
Design refer to UL1950,CSA22.2,IEC60950 |
EMC Standard |
Design refer to FCC Part 15 Class A |
OTHERS |
Weight |
2.3Kg; |
Packing |
8pcs/24.0kg/CARTON |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
