Model: HSM-35 Single Output Switching Power Supply

Model

HSM-35-12

HSM-35-15

HSM-35-24

HSM-35-48

OUTPUT

DC Voltage

12V

15V

24V

48V

VOLTAGE TOLERANCE

±1%

±1%

±1%

±1%

Rated Current

3A

2.4A

1.5A

0.8A

Current Range

0-3A

0-2.4A

0-1.5A

0-0.8A

Rated Power

36W

36W

36W

38.4W

Ripple & Noise

100mVp-p

120mVp-p

200mVp-p

240mVp-p

DC Adjustment Range

±10%

±10%

±10%

±10%

Setup,Rise,Hold Time

200ms,100ms,20ms at full load

INPUT

AC 170～264VAC 47～63 Hz；DC 240～370VDC

0.45A/ 230 V

81%

81%

83%

83%

Cold start 36A/230V

＜1 mA/240VAC

PROTECTION

Over Load

110%～160%

Constant current limiting, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

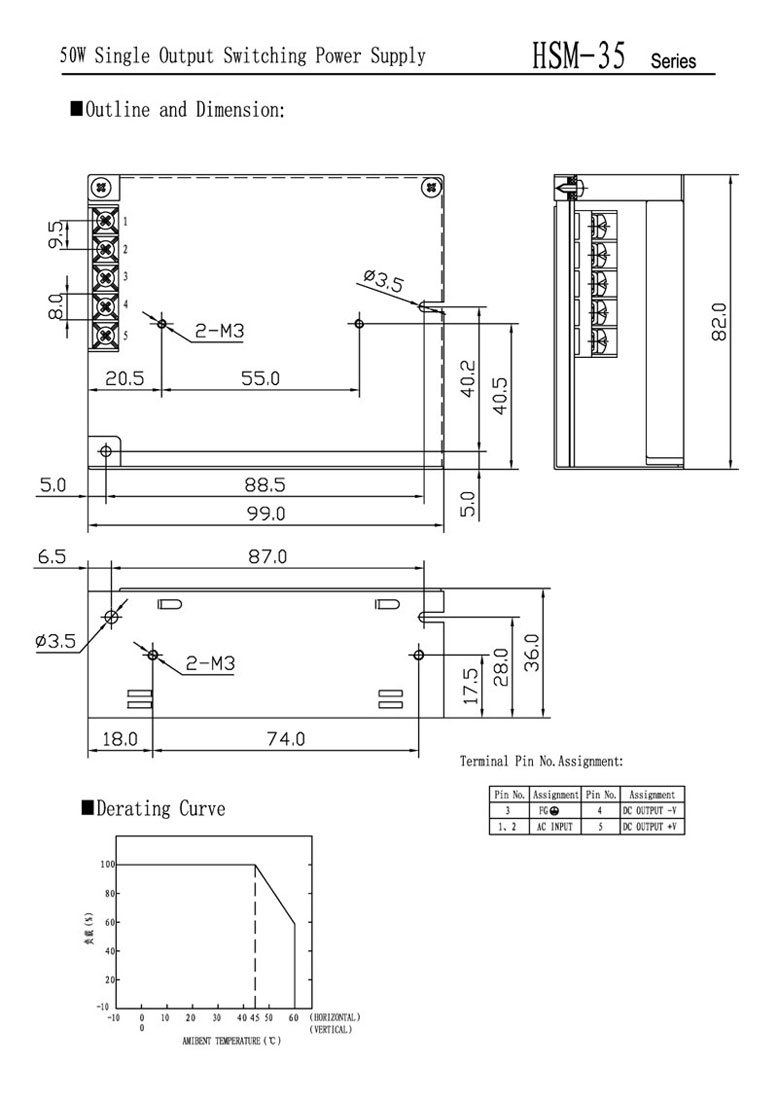

-10℃～+60℃；20%～90 %RH(Refer to output load derating curve)

Storage Temp., Humidity

-20℃～+85℃；10%～95 %RH

Vibration

10～500Hz，2G 10min./1cycle,period for 60 min,each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P：2KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012

EMC Standard

Design refer to EN55022 CLASS A

OTHERS

Weight

0.23Kg

Packing

60pcs/14.5Kg/1.13CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel  capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation
