MODEL:HSP-100 Single Output Switching Power Supply
Features:
¡¤Universal AC input/ full range
¡¤Built-in active PFC function, PF>0.93
¡¤100% full load burn-in test
¡¤Protections: Short circuit/ Over load/ Over voltage
¡¤Built-in constant current limiting circuit
¡¤LED indicator for power on
¡¤Remote ON-OFF control (Optional )
¡¤Fixed switching frequency at PFC: 67KHzPWM: 134KHz
¡¤1 year warranty

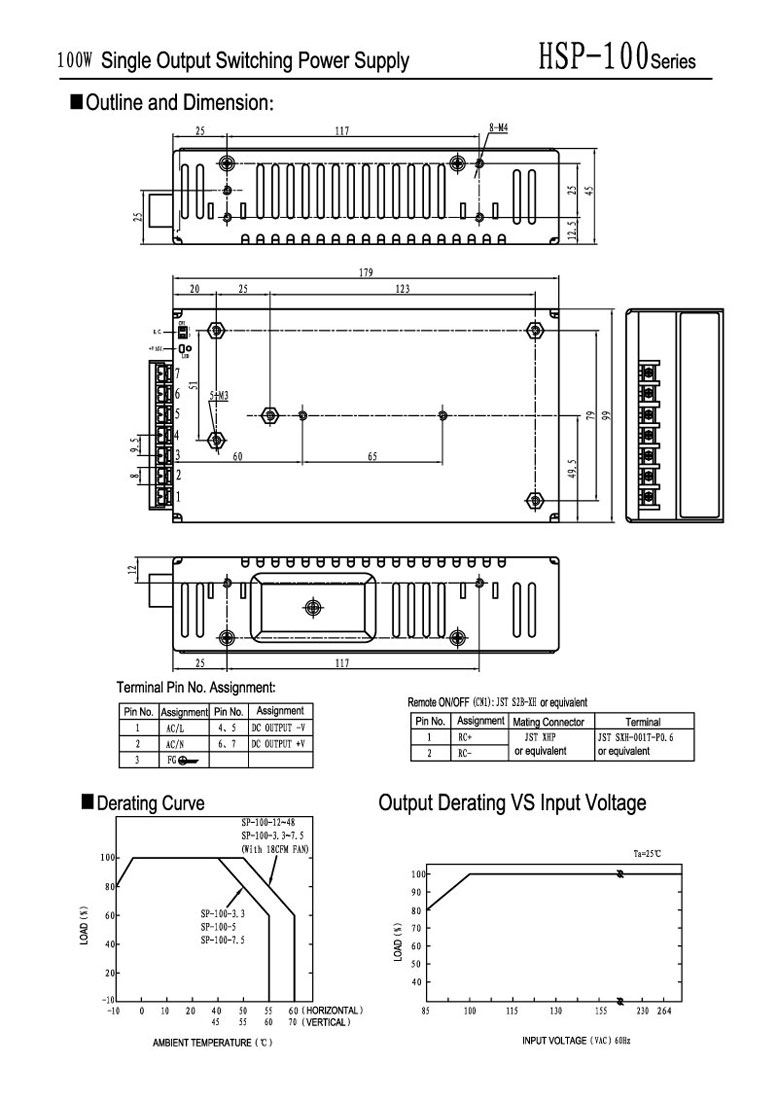

¡¤Dimensions: 179*99*45mm (L*W*H)
casing No. : H022
MODEL
HSP-100-3.3
HSP-100-5
HSP-100-7.5
HSP-100-12
HSP-100-13.5
HSP-100-15
HSP-100-24
HSP-100-27
HSP-100-48
OUTPUT
DC Voltage
3.3V
5V
7.5V
12V
13.5V
15V
24V
27V
48V
Voltage Tolerance
¡À2%
¡À2%
¡À2%
¡À2%
¡À2%
¡À2%
¡À1%
¡À1%
¡À1.0%
Rated Current
20A
20A
13.5A
8.5A
7.5A
6.7A
4.2A
3.8A
2.1A
Current Range
0-20A
0-20A
0-13.5A
0-8.5A
0-7.5A
0-6.7A
0-4.2A
0-3.8A
0-2.1A
Rated Power
66W
100W
101.25W
102W
101.25W
100.5W
100.8W
102.6W
100.8W
Ripple & Noise
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
150mVp-p
150mVp-p
250mVp-p
DC Adjustment Range
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
Setup, Rise, Hold Time
600ms,30ms,20ms at full load
INPUT
Voltage Range
85¡«264 VAC47-63Hz£»120¡«370VDC
Power Factor
PF>0.93/230VAC,PF>0.98/115VAC at full load
AC Current
1.7A/115 VAC0.8A/230VAC
Efficiency
70%
76%
78%
80%
80%
82%
84%
83%
82%
Inrush Current
Cold start 40A/230VAC
Leakage Current
<2mA/240VAC
PROTECTION
Over Load
105%~150%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
115%¡«135%
Protection type: Shut down o/p voltage, re-power on to recover
FUNCTION
Remote Control
CN1:4 ~ 10VDC Power on, <0 ~ 0.8VDC Power off
ENVIRONMENT
Working Temp., Humidity
-10¡æ¡«+60¡æ; 20%¡«90 %RH
Storage Temp., Humidity
-20¡æ¡«+85¡æ; 10%¡«95 %RH
Vibration
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
