MODEL:HSP-150 Single Output Switching Power Supply |
Features:
¡¤Universal AC input/ full range
¡¤Built-in active PFC function, PF>0.93
¡¤100% full load burn-in test
¡¤Protections: Short circuit/ Over load / Over voltage/ Over
temperature
¡¤Built- in constant current limiting circuit
¡¤LED indicator for power on
¡¤Remote ON-OFF control ( Optional )
¡¤Fixed switching frequency at PF: 67KHzPWM: 134KHz
¡¤1 year warranty

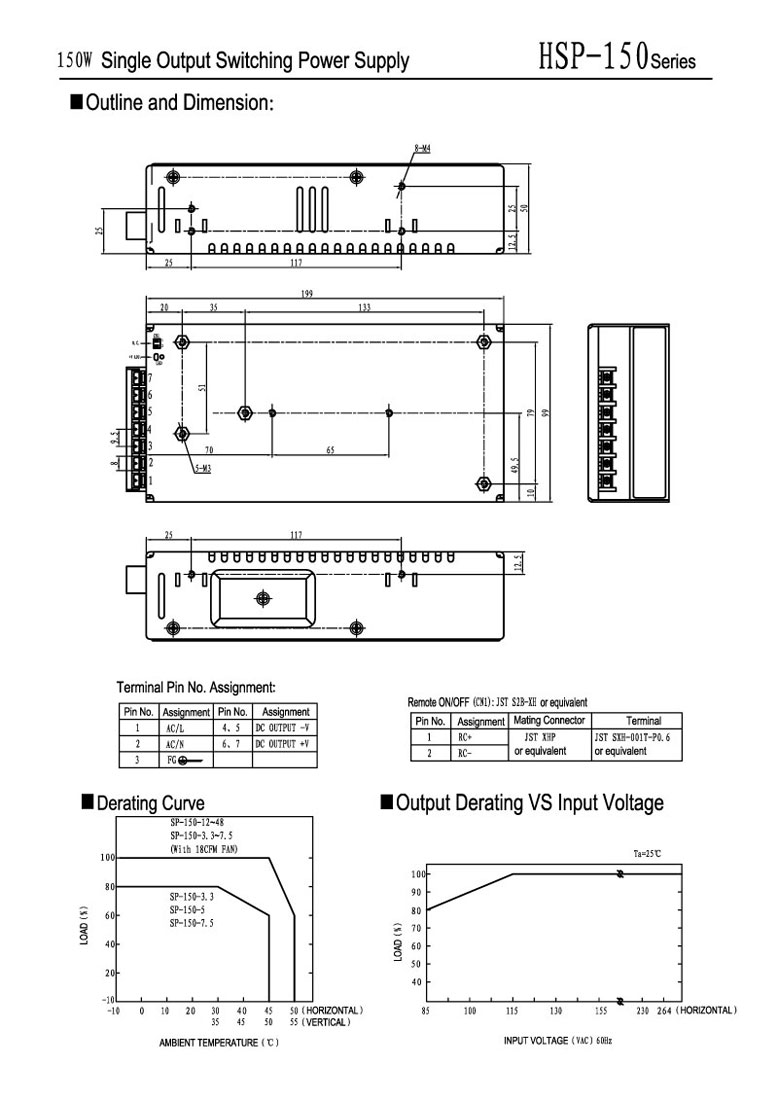

¡¤Dimensions: 199*99*50mm£¨L*W*H£© |
casing No. : H023 |
|
MODEL |
HSP-150-3.3 |
HSP-150-5 |
HSP-150-7.5 |
HSP-150-12 |
HSP-150-13.5 |
HSP-150-15 |
HSP-150-24 |
HSP-150-27 |
HSP-150-48 |
OUTPUT |
DC Voltage |
3.3V |
5V |
7.5V |
12V |
13.5V |
15V |
24V |
27V |
48V |
Voltage Tolerance |
¡À2% |
¡À2% |
¡À2% |
¡À2% |
¡À2% |
¡À2% |
¡À1% |
¡À1% |
¡À1.0% |
Rated Current |
30A |
30A |
20A |
12.5A |
11.2A |
10A |
6.3A |
5.6A |
3.2A |
Current Range |
0-30A |
0-30A |
0-20A |
0-12.5A |
0-11.2A |
0-10A |
0-6.3A |
0-5.6A |
0-3.2A |
Rated Power |
99W |
150W |
150W |
150W |
151.2W |
150W |
150W |
151.2W |
153.6W |
Ripple & Noise |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
150mVp-p |
150mVp-p |
250mVp-p |
DC Adjustment Range |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
-5%£¬+10% |
Setup, Rise, Hold Time |
600ms,30ms,20ms at full load |
INPUT |
Voltage Range |
85¡«264 VAC47-63Hz£»120¡«370VDC |
Power Factor |
PF>0.93/230VAC,PF>0.98/115VAC at full load |
AC Current |
2.5A/115 VAC1.2A/230VAC |
Efficiency |
67% |
75% |
79% |
80% |
80% |
81% |
83% |
84% |
84% |
Inrush Current |
Cold start 40A/230VAC |
Leakage Current |
<2mA/240VAC |
PROTECTION |
Over Load |
105%~150% |
Protection: Constant current limiting, recovers automatically after fault condition is recover |
Over Voltage |
110%~135% |
Protection type: Shut down o/p voltage, re-power on to recover |
Over Temp |
TSW1(Power transistor) When temp.in 95¡À5 ¡æ shutdown o/p voltagetemp. £¼95¡À5 ¡æO/I auto-recovery. |
Remote Control(Optional)
|
Remote Control |
CN1:4 ~ 10VDC Power on, <0 ~ 0.8VDC Power off |
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+60¡æ£»20%¡«90 %RH |
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH |
Vibration |
10¡«500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC |
STANDARD |
Safety Standard |
Design refer to UL1950,TUV EN60950 |
EMC Standard |
Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024 |
OTHERS |
Weight |
0.75Kg |
Packing |
20pcs/15Kg/1.28CUFT |
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
