MODEL:HSP-200 Single Output Switching Power Supply
Features:
¡¤Universal AC input/ full range
¡¤100% full load burn-in test
¡¤Built-in active PFC function, PF>0.93
¡¤Protection tye: Short circuit/ Over load/ Over voltage/ Over temperature
¡¤Built-in constant current limiting circuit
¡¤LED indicator for power on
¡¤Remote ON-OFF control ( Optional )
¡¤Fixed switching frequency at PFC: 67KHzPWM at: 134KHz
¡¤Built-in fan speed control
¡¤1 year warranty

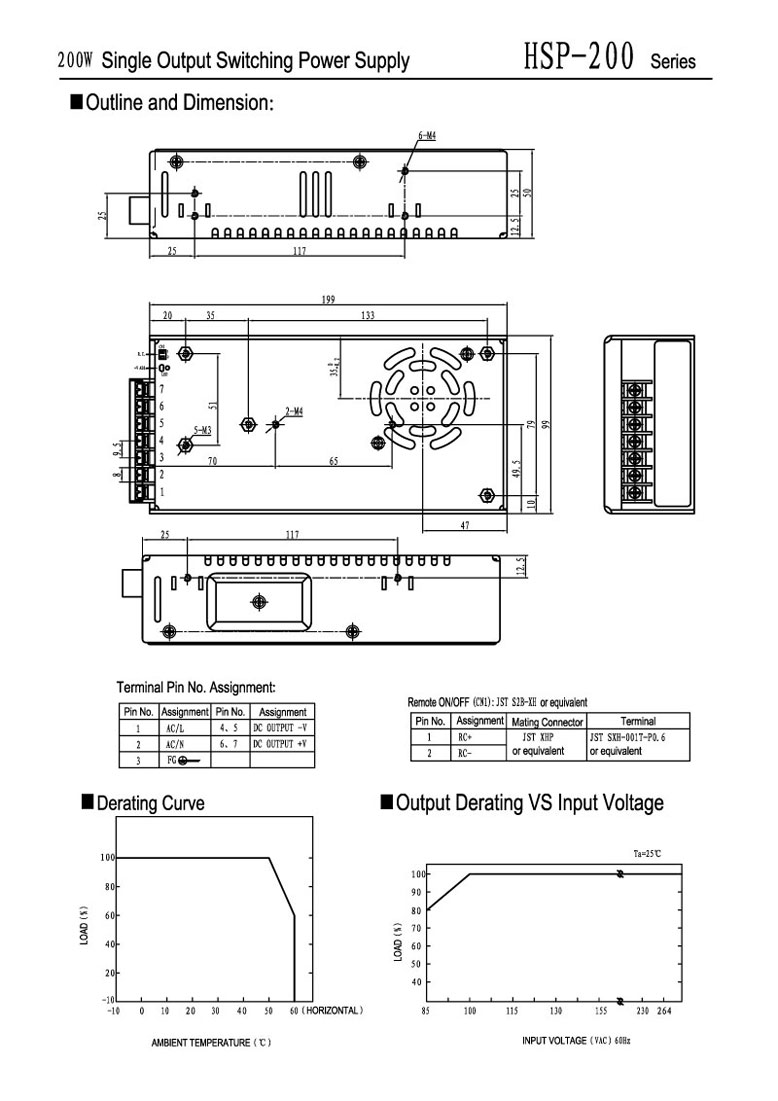

¡¤Dimensions: 199*99*50mm (L*W*H)
casing No. : H023A
MODEL
HSP-200-3.3
HSP-200-5
HSP-200-7.5
HSP-200-12
HSP-200-13.5
HSP-200-15
HSP-200-24
HSP-200-27
HSP-200-48
OUTPUT
DC Voltage
3.3V
5V
7.5V
12V
13.5V
15V
24V
27V
48V
Voltage Tolerance
¡À2%
¡À2%
¡À2%
¡À2%
¡À2%
¡À2%
¡À1%
¡À1%
¡À1.0%
Rated Current
40A
40A
26.7A
16.7A
14.9A
13.4A
8.4A
7.5A
4.2A
Current Range
0-40A
0-40A
0-26.7A
0-16.7A
0-14.9A
0-13.4A
0-8.4A
0-7.5A
0-4.2A
Rated Power
132W
200W
200.2W
200.4W
201.1W
201W
201.6W
202.5W
201.6W
Ripple & Noise
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
150mVp-p
150mVp-p
250mVp-p
DC Adjustment Range
-5%,
+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,
+10%
Setup, Rise, Hold Time
600ms,30ms,20ms at full load
INPUT
Voltage Range
85¡«264 VAC47-63Hz£»120¡«370VDC
Power Factor
PF>0.93/230VAC,PF>0.98/115VAC at full load
AC Current
3.5A/115 VAC1.7A/230VAC
Efficiency
65%
71%
76%
79%
80%
81%
83%
83%
84%
Inrush Current
Cold start 40A/230VAC
Leakage Current
<2mA/240VAC
PROTECTION
Over Load
105%~150%
Protection: Constant current limiting, recovers automatically after fault condition is recover
Over Voltage
110%~135%
Protection type: Shut down o/p voltage, re-power on to recover
Over Temp
TSW1(power transistor) When temp. in 95¡À5 ¡æ, shut down o/p voltage,temp.£¼95¡À5 ¡æ,O/I auto-recovery.
FUNCTION
Remote Control
CN1:4 ~ 10VDC Power on, <0 ~ 0.8VDC Power off
ENVIRONMENT
Working Temp., Humidity
-10¡æ¡«+60¡æ£»20%¡«90 %RH
Storage Temp., Humidity
-20¡æ¡«+85¡æ£»10%¡«95 %RH
Vibration
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC
STANDARD
Safety Standard
Design refer to UL1950,TUV EN60950
EMC Standard
Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024
OTHERS
Weight
0.8Kg
Packing
20pcs/16Kg/1.28CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
