MODEL:HSP-320 Single Output Switching Power Supply
Features:
¡¤Universal AC input/ full range
¡¤Built-in active PFC function, PF>0.95
¡¤100% full load burn-in test
¡¤Protections: Short circuit/ Over load/ Over voltage/ Over temperature
¡¤Forced air cooling by built-in DC fan
¡¤Built-in fan speed control
¡¤Fixed switching frequency at 100KHz
¡¤1 year warranty

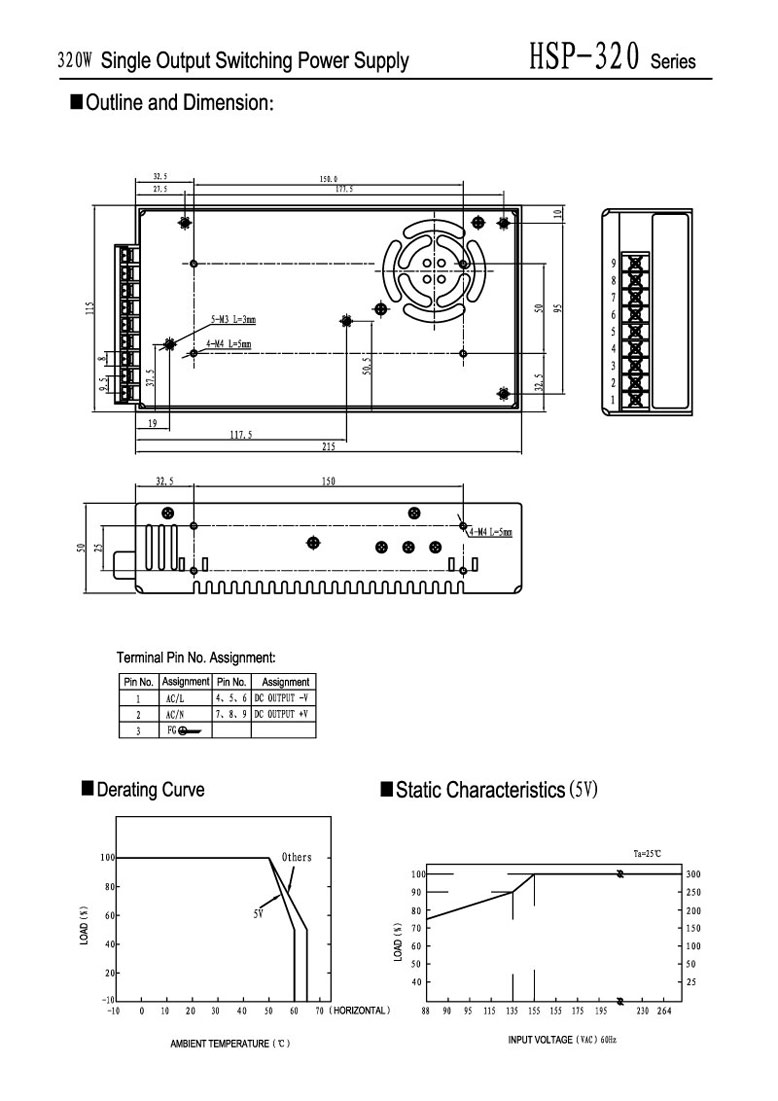

¡¤Dimensions: 215*115*50mm (L*W*H)
casing No. : H007
MODEL
HSP-320-5
HSP-320-7.5
HSP-320-12
HSP-320-13.5
HSP-320-15
HSP-320-24
HSP-320-27
HSP-320-48
OUTPUT
DC Voltage
5V
7.5V
12V
13.5V
15V
24V
27V
48V
Voltage Tolerance
¡À2%
¡À2%
¡À1%
¡À1%
¡À1%
¡À1%
¡À1%
¡À1%
Rated Current
55A
40A
25A
22A
20A
13A
11.7A
6.7A
Current Range
0-55A
0-40A
0-25A
0-22A
0-20A
0-13A
0-11.7A
0-6.7A
Rated Power
275W
300W
300W
297W
300W
312W
315.9W
321.6W
Ripple & Noise
150mVp-p
150mVp-p
150mVp-p
150mVp-p
150mVp-p
150mVp-p
200mVp-p
240mVp-p
DC Adjustment Range
¡À10%
¡À20%
-16%,+10%
¡À11%
-10%,+20%
-16%,+10%
-4%,+18%
-15%,+17%
Setup, Rise, Hold Time
800ms,50ms,16ms/230VAC2500ms,50ms,16ms/115VAC at full load
INPUT
Voltage Range
88¡«264VAC selected by 47¡«63 Hz£»120¡«370VDC
Power Factor
PF>0.95/230VAC,PF>0.98/115VAC at full load
AC Current
5A/115 VAC2.5A/230VAC
Efficiency
79%
83%
86%
86%
86%
87%
88%
89%
Inrush Current
22A/115VAC40A/230VAC
Leakage Current
£¼1 mA/240VAC
PROTECTION
Over Load
105%~135%
Protection: Shut down o/p voltage, re-power on to recover
Over Voltage
115%~135%
Protection type: Shut down o/p voltage, re-power on to recover
Over Temp
TSW1(Power transistor) When temp. in 80¡À5 ¡æ(70¡æ¡À5 ¡æ5V), shut down o/p voltage, temp. £¼80¡À5 ¡æ(70¡æ¡À5 ¡æ5V), O/I auto-recovery
ENVIRONMENT
Working Temp., Humidity
-20¡æ¡«+65¡æ; 20%¡«90 %RH
Storage Temp., Humidity
-40¡æ¡«+85¡æ; 10%¡«95 %RH
Vibration
10¡«500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC
STANDARD
Safety Standard
Design refer to UL60950,TUV EN60950
EMC Standard
Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024
OTHERS
Weight
1.1Kg
Packing
12pcs/14.0Kg/0.98CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
