MODEL:HSP-75 Single Output Switching Power Supply

Features:
¡¤Universal AC input/ full range
¡¤Built-in active PFC function
¡¤100% full load burn-in test
¡¤Protections: Short circuit/ Over load/ Over voltage
¡¤Built-in constant current limiting circuit
¡¤LED indicator for power on
¡¤Fixed switching frequency at PFC: 7KHzPWM:134KHz
¡¤1 year warranty

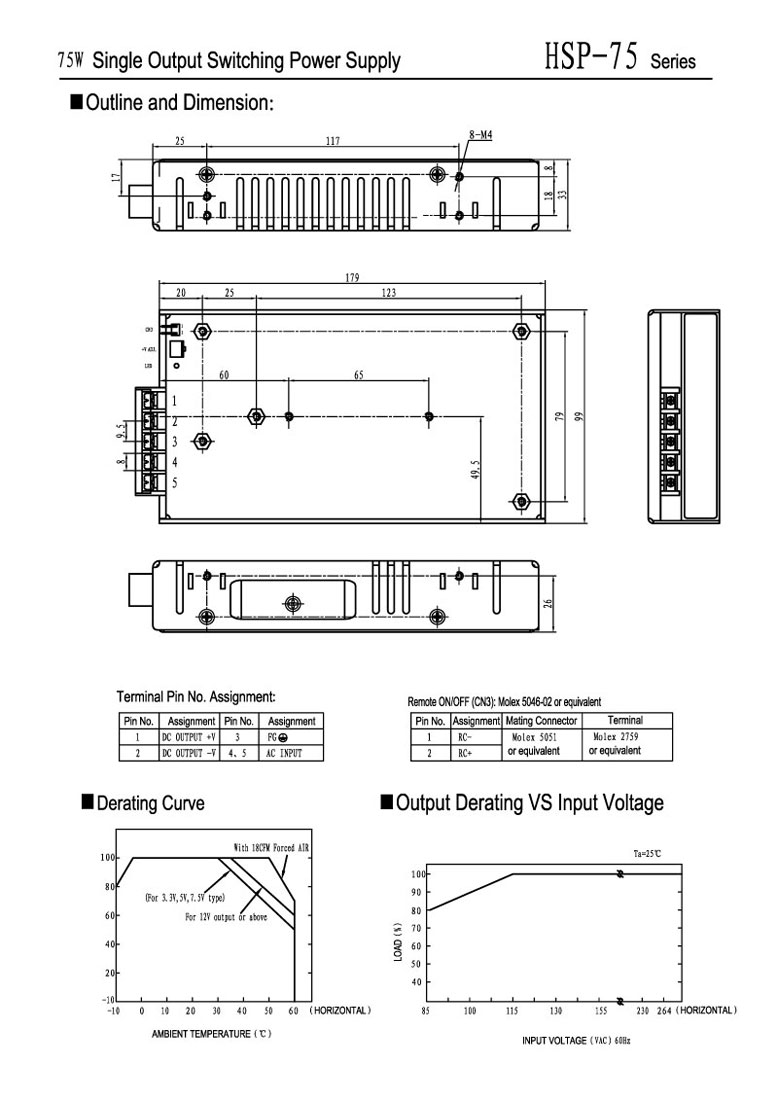

¡¤Dimensions: 179*99*33mm(L*W*H)

casing No. : H021
MODEL
HSP-75-3.3
HSP-75-5
HSP-75-7.5
HSP-75-12
HSP-75-13.5
HSP-75-15
HSP-75-24
HSP-75-27
HSP-75-48
OUTPUT
DC Voltage
3.3V
5V
7.5V
12V
13.5V
15V
24V
27V
48V
Voltage Tolerance
¡À2%
¡À2%
¡À2%
¡À2%
¡À2%
¡À2%
¡À1%
¡À1%
¡À1%
Rated Current
15A
15A
10A
6.3A
5.6A
5A
3.2A
2.8A
1.6A
Current Range
0-15A
0-15A
0-10A
0-6.3A
0-5.6A
0-5A
0-3.2A
0-2.8A
0-1.6A
Rated Power
49.5W
75W
75W
75.6W
75.6W
75W
76.8W
75.6W
76.8W
Ripple & Noise
80mVp-p
80mVp-p
80mVp-p
80mVp-p
80mVp-p
80mVp-p
100mVp-p
100mVp-p
100mVp-p
DC Adjustment Range
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
-5%,+10%
Setup, Rise, Hold Time
600ms,60ms,20ms at full load
INPUT
Voltage Range
85¡«264 VAC47-63Hz£»120¡«370VDC
Power Factor
PF>0.93/230VAC,PF>0.96/115VAC at full load
AC Current
1.3A/115 VAC0.7A/230VAC
Efficiency
68%
72%
74%
77%
78%
79%
80%
80%
80%
Inrush Current
Cold start 40A/230VAC
Leakage Current
<2mA/240VAC
PROTECTION
Over Load
105%~150%
Protection: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
115%¡«135%
Protection type: Shut down o/p voltage, re-power on to recover
FUNCTION
Remote Control(Optional)
CN3:4 ~ 10VDC POWER OFF, <0 ~ 0.8VDC POWER ON
ENVIRONMENT
Working Temp., Humidity
-10¡æ¡«+60¡æ£»20%¡«90 %RH
Storage Temp., Humidity
-20¡æ¡«+85¡æ£»10%¡«95 %RH
Vibration
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC
STANDARD
Safety Standard
Design refer to UL1950,TUV EN60950
EMC Standard
EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024
OTHERS
Weight
0.58Kg
Packing
20pcs/12.0Kg/0.64CUFT
NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.

4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
