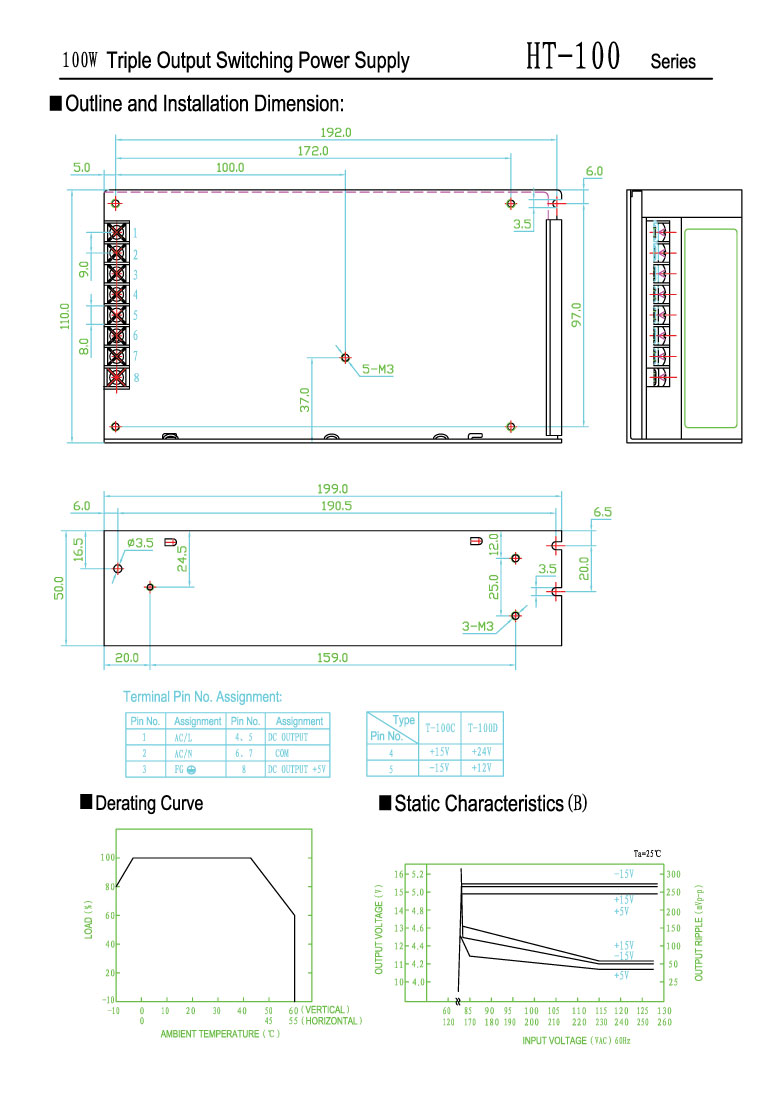

MODEL:HT-100 Triple Output Switching Power Supply |
||||||||||
| ||||||||||
|
MODEL |
HT-100C |
HT-100D | ||||||||
|
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 | |||||
|
OUTPUT |
DC Voltage |
5V |
15V |
-15V |
5V |
12V |
24V | |||
|
Voltage Tolerance |
¡À2% |
¡À6% |
¡À6% |
¡À2% |
¡À6% |
¡À6% | ||||
|
Rated Current |
10A |
2.5A |
1A |
6A |
2A |
2A | ||||
|
Current Range |
2-12A |
0.2-2.5A |
0.1-1A |
2-12A |
0.1-2A |
0.2-2A | ||||
|
Rated Power |
100W |
102W | ||||||||
|
Ripple & Noise |
80mVp-p |
150mVp-p |
150mVp-p |
80mVp-p |
150mVp-p |
150mVp-p | ||||
|
DC Adjustment Range |
CH1£º+10,-5% | |||||||||
|
Setup, Rise, Hold Time |
200ms,500ms,16ms | |||||||||
|
INPUT |
Voltage Range |
85¡«132 VAC/170¡«264VAC 47¡«63 Hz£»Selected by switch 240¡«370VDC | ||||||||
|
AC Current |
2.5A/115V 1.25A/ 230V | |||||||||
|
Efficiency |
77% |
79% | ||||||||
|
Inrush Current |
Cold start 30A/115V 60A/230V | |||||||||
|
Leakage Current |
£¼0.5mA/240VAC | |||||||||
|
PROTECTION |
Over Load |
105%¡«150% | ||||||||
|
Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||
|
Over voltage |
CH1:115%¡«135% | |||||||||
|
Protection: output shutdown re-power on to recover | ||||||||||
|
ENVIRONMENT |
Working Temp., Humidity |
-10¡æ¡«+50¡æ£»20%¡«90 %RH | ||||||||
|
Storage Temp., Humidity |
-20¡æ¡«+85¡æ£»10%¡«95 %RH | |||||||||
|
Vibration |
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||||||||
|
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC | ||||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 500VDC/100M¦¸ | |||||||||
|
STANDARD |
Safety Standard |
Design refer to UL1012 | ||||||||
|
EMC Standard |
Design refer to FCC PART15 J CONDUCTION CLASS B | |||||||||
|
OTHERS |
Weight |
0.83Kg | ||||||||
|
Packing |
22pcs/18.6Kg/1.22CUFT | |||||||||
|
NOTE |
1. All parameter measured in 230V input voltage, rated load 25¡æ, 70% humidity.
2. Tolerance: includes set up tolerance, line regulation and load regulation 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì parallel capacitor 4. The line regulation is measured at full load, input voltage from 85-264 VAC.¡£ 5. The load regulation is measured at 230VAC input voltage, and output current changed from mini load to fullload,other ouput is 60% rated load 6. Each output can within current range. But total output power can¡¯t exceed rated load | |||||||||
