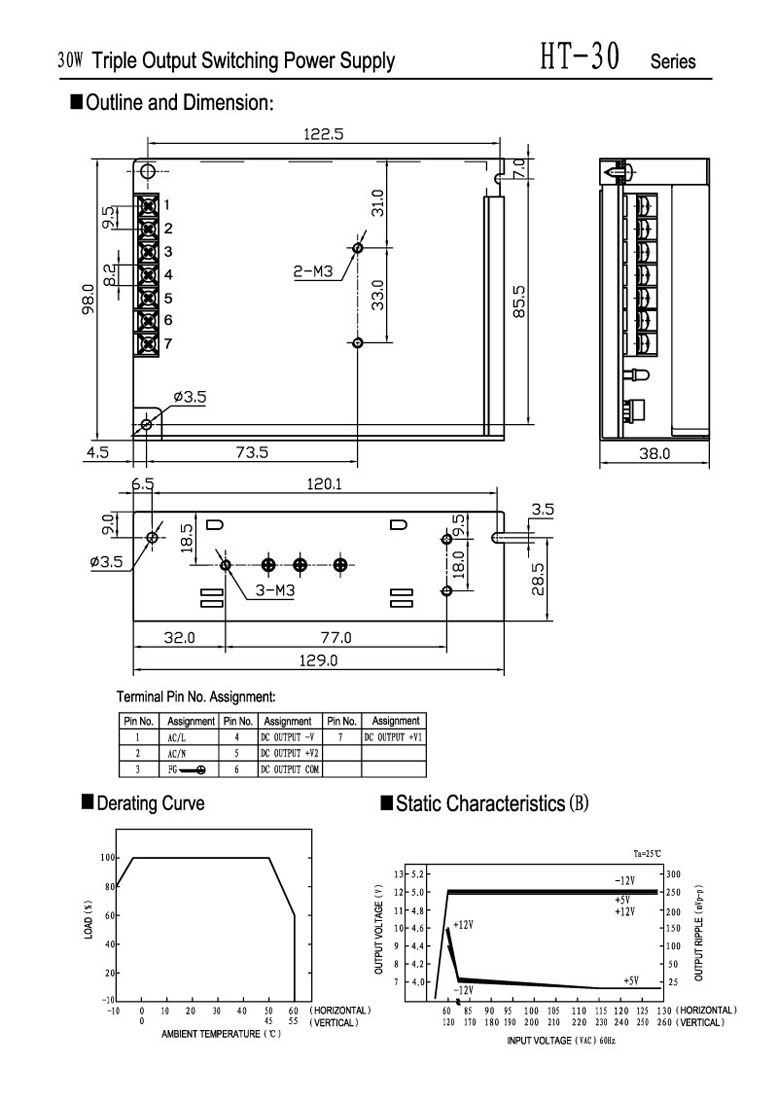

MODEL:HT-30 Triple Output Switching Power Supply

MODEL

CH1

CH3

OUTPUT

DC Voltage

5V

12V

-5V

5V

12V

-12V

Voltage Tolerance

±2%

+2，-6%

+2，-10%

±2%

+2，-6%

±6%

Rated Current

3A

1A

0.5A

3A

1A

0.5A

Current Range

0.5-3A

0.1-1A

0.1-0.5A

0.5-3A

0.1-1A

0.1-0.5A

Rated Power

30W

33W

Ripple & Noise

50mVp-p

100mVp-p

50mVp-p

50mVp-p

100mVp-p

100mVp-p

DC Adjustment Range

CH1: -5%,+10%

Setup, Rise, Hold Time

200ms,100ms,30ms at full load

INPUT

Voltage Range

85～132 VAC/170～264VAC 47～63 Hz；Selected by switch 240～370VDC

AC Current

0.8A/115 V 0.45A/ 230 V

Efficiency

70%

72%

Inrush Current

Cold start 18A/115V 36A/230V

Leakage Current

＜0.75mA/240VAC

PROTECTION

Over Load

105%～150%

Protection: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp., Humidity

-10℃～+60℃；20%～90 %RH

Storage Temp., Humidity

-20℃～+85℃；10%～95 %RH

Vibration

10～500Hz，2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012

EMC Standard

Design refer to FCC Part15 J Conduction Class A

OTHERS

Weight

0.42Kg

Packing

45pcs/19.4Kg/1.22CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
