MODEL:HT-40 Triple Output Switching Power Supply

Features:
High efficiency,high reliability
Universal AC input /full range
100% full load burn-in test
Protection: Short circuit/Over load/Over voltage
Cooling by free air convection
Fixed switching frequency at 40KHz
1 year warranty

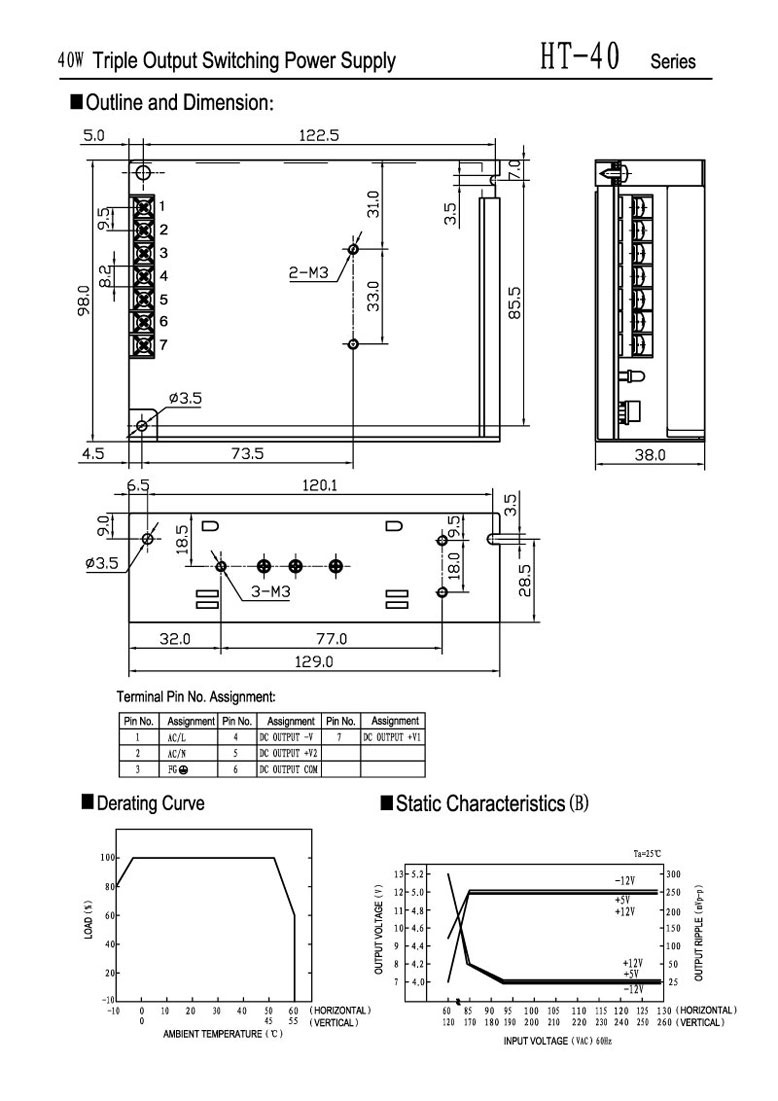

Dimensions: 129*98*38mm (L*W*H)

casing No. : H002

MODEL

HT-40A

HT-40B

HT-40C

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

OUTPUT

DC Voltage

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

Voltage Tolerance

¡À2%

¡À6%

¡À8%

¡À2%

¡À6%

¡À8%

¡À2%

¡À6%

¡À6%

Rated Current

3A

2A

0.5A

3A

2A

0.5A

3A

1.5A

0.5A

Current Range

0.6-5A

0.2-3A

0.1-1A

0.6-5A

0.2-3A

0.1-1A

0.6-5A

0.2-2A

0.1-1A

Rated Power

41.5W

45W

45W

Ripple & Noise

100mVp-p

120mVp-p

100mVp-p

100mVp-p

120mVp-p

120mVp-p

100mVp-p

120mVp-p

120mVp-p

DC Adjustment Range

CH1£º-5%£¬+10%

Setup, Rise, Hold Time

800ms,50ms,60ms/230VAC 1.6ms,50ms,16ms/115VAC at full load

INPUT

Voltage Range

85¡«264 VAC / 47¡«63 Hz£»120¡«370VDC

AC Current

1.2A/115 V 0.7A/ 230 V

Efficiency

72%/115VAC

72%/115VAC

72%/115VAC

Inrush Current

Cold start 20A/115V 40A/230V

Leakage Current

£¼3.5mA/240VAC

PROTECTION

Over Load

105%¡«150% /115VAC

Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed

Over Voltage

5V:115%~135%

Protection tyoe: hiccup mode, recovers automatically after fault ondition is removed

ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to CSA 950, (UL1950, IEC950, TUV EN60950)

EMC Standard

Design refer to EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204

OTHERS

Weight

0.44Kg

Packing

45pcs/19.8Kg/1.22CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
