MODEL:HT-50 Triple Output Switching Power Supply

Features:
High efficiency,high reliability,low cost
AC input range selected by switch
100% full load burn-in test
Protection: Short circuit/Over load
Cooling by free air convection
Fixed switching frequency at 24KHz
1 year warranty

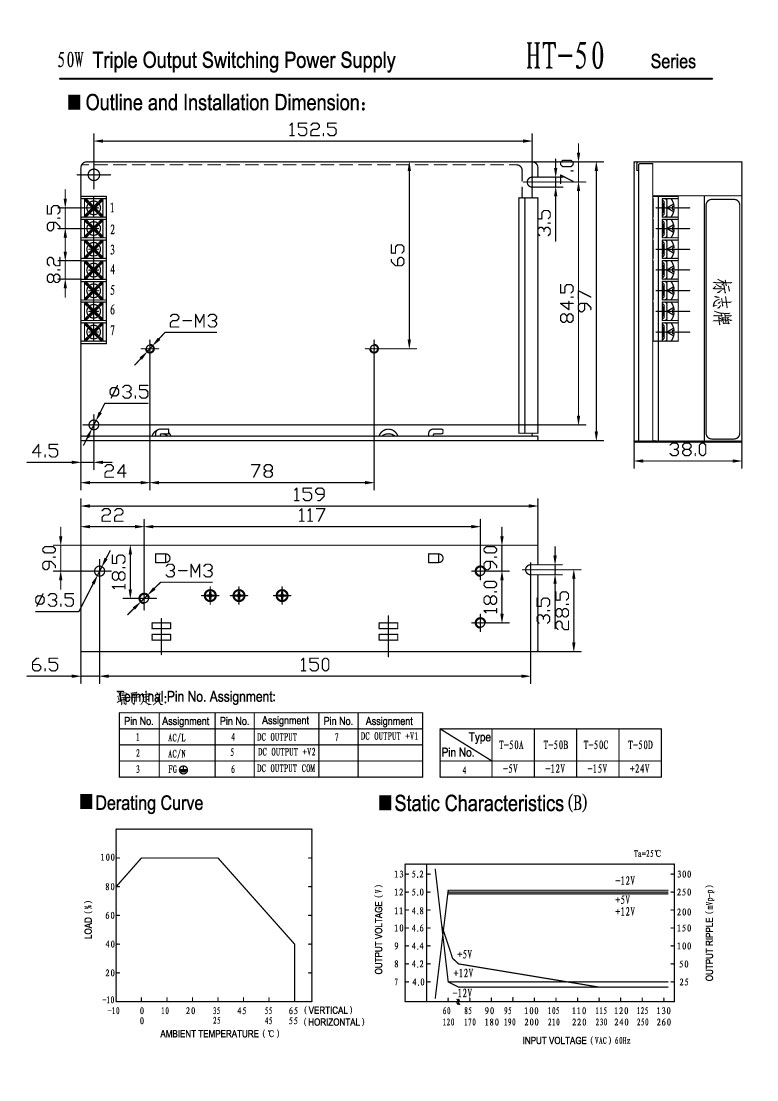

Dimensions: 159*97*38mm£¨L*W*H£©

casing No. : H003
MODEL

HT-50A

HT-50B

HT-50C

HT-50D

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

OUTPUT DC Voltage

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

5V

12V

24V

Voltage Tolerance

¡À2%

¡À5%

¡À5%

¡À2%

¡À5%

¡À5%

¡À2%

¡À5%

¡À5%

¡À2%

¡À6%

¡À6%

Rated Current

7A

1A

1A

5A

1A

1A

4A

1A

1A

3A

1A

1A

Current Range

0.6-7A

0.2-1A

0.2-1A

0.6-5A

0.2-1A

0.2-1A

0.6-4A

0.2-1A

0.2-1A

0.6-4A

0.2-1.2A

0.2-1.2A

Rated Power

52W

49W

50W

51W

Ripple & Noise

100mV

100mV

100mV

100mV

100mV

100mV

100mV

100mV

100mV

50mV

120mV

120mV

DC Adjustment Range

CH1£º -5%£¬+10%

Setup, Rise, Hold Time

200ms,100ms,16ms at full load

INPUT Voltage Range

85¡«132 VAC / 170¡«264 VAC47-63Hz£» selected by switch 240¡«370VDC

AC Current

1.6A/115 V0.8A/ 230 V

Efficiency

66%
69%
71%
72%
Inrush Current

Cold start 20A/115V40A/230V

Leakage Current

£¼0.5mA/240VAC

PROTECTION Over Load

105%¡«150%

Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed

ENVIRONMENT Working Temp., Humidity

-10¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY Withstand Voltage

I/P-O/P:1.5KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

STANDARD Safety Standard

Design refer to UL1012

OTHERS Weight

0.54Kg

Packing

24pcs/14Kg/0.75CUFT

NOTE 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì &47¦Ì parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
