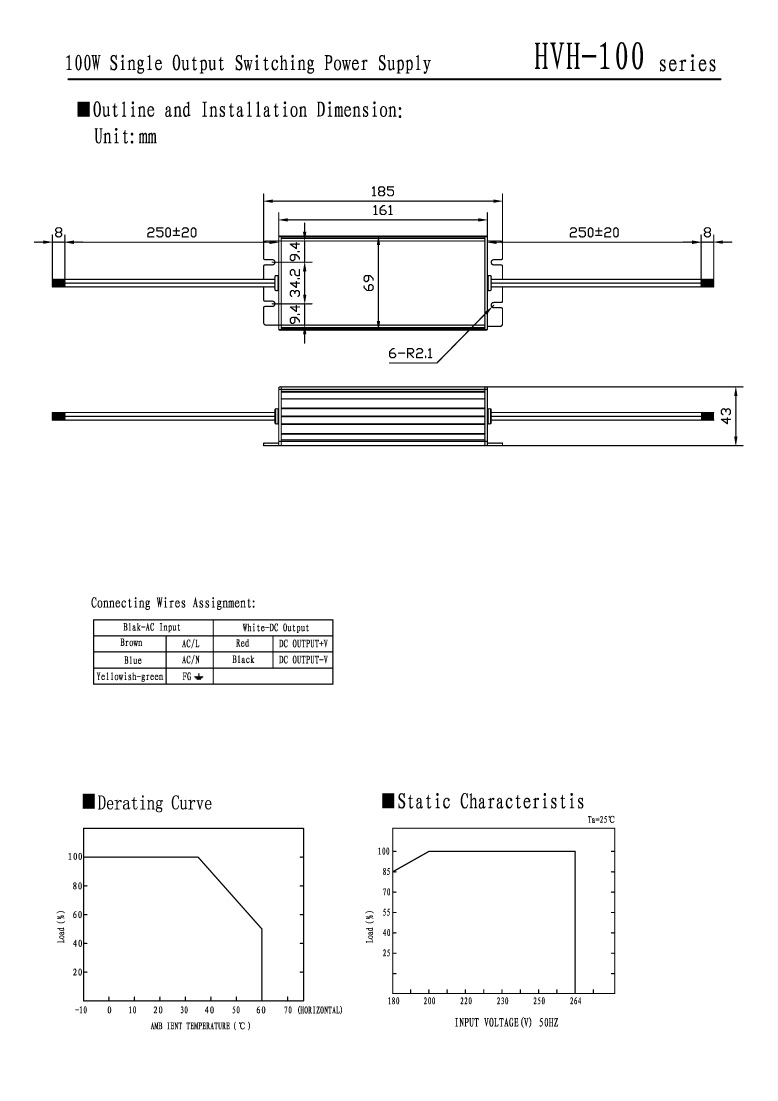

MODEL:HVH-100 Single Output Waterproof Power Supply

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65KHz
Suitable for LED lighten and moving sign applications.
1 year warranty
Dimensions: 185*69*43mm £¨L*W*H£©

Shell code£ºH057

MODEL

 HVH-100-12 HVH-100-24 HVH-100-36 HVH-100-48
OUTPUT

DC VOLTAGE

 12V 24V 36V 48V

VOLTAGE  TOLERANCE

 ¡À5% ¡À5% ¡À5% ¡À5%

RATED CURRENT

 8.5A 4.2A 2.8A 2.1A

CURRENT RANGE

 0-8.5A 0-4.2A 0-2.8A 0-2.1A

RATED POWER

 102W 101W 101W 100.8W

RIPPLE & NOISE

 100mVp-p 150mVp-p 150mVp-p 150mVp-p

SETUP,RISE, TIME

800ms,30ms,24ms/230VAC
INPUT

VOLTAGE RANGE

180¡«264 VAC 47¡«63Hz; 255¡«373VDC

AC CURRENT

1.2A/230VAC

EFFICIENCY

 82% 84% 85% 86%

INRUSH CURRENT

COLD START40A/230VAC

LEAKAGE CURRENT

<2.5mA/240VAC
PROTECTION

OVER LOAD

 105%~135%
Protection£ºHiccup mode,recovers automatically after fault condition is removed
OVER VOLTAGE 15~17V 30~32V 42~44V 55.2-64.8V
Protection£ºHiccup mode,recovers automatically after fault condition is removed
HIGH TEMPERATURE

¡Ý90¡æ¡À10%(JK1)
Protection: cut off the output,recovers automatically after fault condition is removed
ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min./1cycle£¬period for 60 min£¬each along X.Y.Z axes
SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD

Safety Standard

EN61347-1 EN61347-2-13 EN62384 IP67

EMC Standard

EN55015 EN61547 EN 61000-3-2/3 EN61000-4-2/3/4/5/6/8/11
OTHERS

Weight

185*69*43£¨L*W*H£©

Packing

0.9kg/20pcs/19kg/0.97CUFT
NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
