MODEL:HVH-150 Single Output Waterproof Power Supply

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65KHz
Suitable for LED lighten and moving sign applications.
1 year warranty

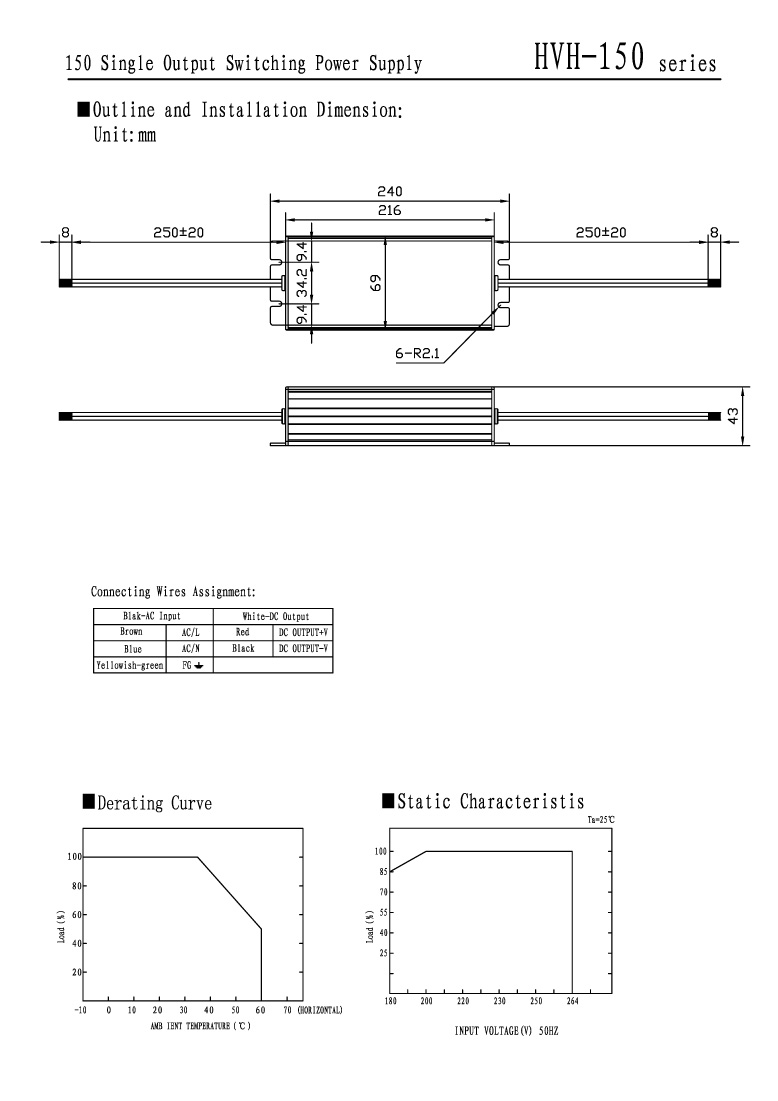

Dimensions: 240*69*43mm £¨L*W*H£©

Shell code£ºH059

MODEL

 HVH-150-12 HVH-150-24 HVH-150-36 HVH-150-48
OUTPUT

DC Voltage

 12V 24V 36V 48V

Voltage Tolerance(note 3)

 ¡À5% ¡À5% ¡À5% ¡À5%

Rated Current(note 5)

 12.5A 6.3A 4.2A 3.2A

Current Range

 0-12.5A 0-6.3A 0-4.2A 0-3.2A

Rated Power

 150W 151.2W 151.2W 153.6W

Ripple & Noise(note 2)

 200mVp-p 200mVp-p 200mVp-p 200mVp-p

Setup, Rise, Hold Time

200ms,20ms,30ms/230VAC
INPUT

Voltage Range

180¡«264 VAC 47¡«63Hz; 255¡«373VDC

AC Current

1.6A/230VAC

Efficiency

 84% 86% 88% 88%

Inrush Current

COLD START40A/230VAC

Leakage Current

<3.5mA/240VAC
PROTECTION

Over Load

 115%~135%
Protection£º Hiccup mode ,recovers automatically after fault condition is removed
OVER VOLTAGE 15~17V 30~32V 42~44V 55.2-64.8
Protection£ºHiccup mode,recovers automatically after fault condition is removed
HIGH TEMPERATURE ¡Ý90¡æ¡À10%(JK1)

Protection£ºcut off the output,recovers automatically after fault condition is removed
ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min../1cycle£¬period for 60 min£¬each along X.Y.Z axes
SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD

Safety Standard

EN61347-1 EN61347-2-13 EN62384 IP67

EMC Standard

EN55015 EN61547 EN 61000-3-2/3 EN61000-4-2/3/4/5/6/8/11
OTHERS

Weight

240*69*43£¨L*W*H£©

Packing

1.25kg/20pcs/26kg/1.21CUFT
NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
