MODEL:HVH-250 Single Output Waterproof Power Supply

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65KHz
Suitable for LED lighten and moving sign applications.
1 year warranty

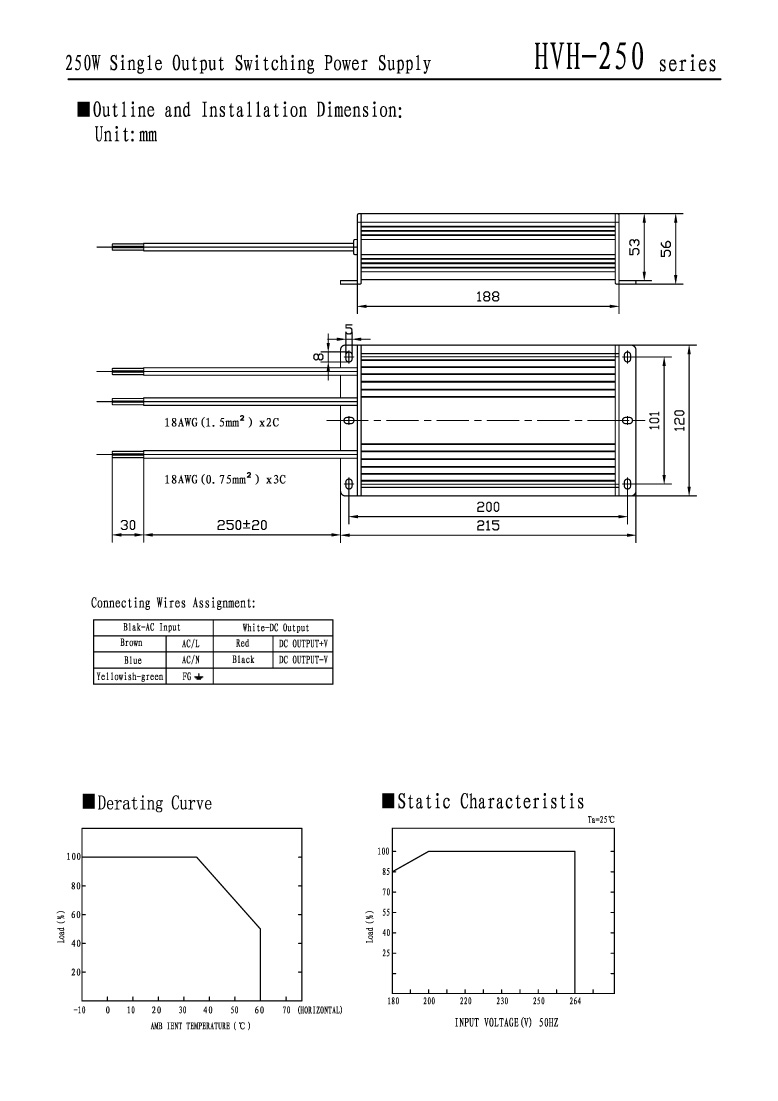

Dimensions: 215*120*56mm £¨L*W*H£©

Shell code£ºH060

MODEL

 HVH-250-12 HVH-250-24 HVH-250-36 HVH-250-48
OUTPUT

DC VOLTAGE

 12V 24V 36V 48V

VOLTAGE TOLERANCE

 ¡À5% ¡À5% ¡À5% ¡À5%

RATED CURRENT

 20A 10A 7A 5.2A

CURRENT RANGE

 0-20A 0-10A 0-7A 0-5.2A

RATED POWER

 240W 240W 252W 249.6W

Ripple & Noise

 150mVp-p 200mVp-p 200mVp-p 200mVp-p

Setup, Rise, Hold time

800ms,30ms,24ms/230VAC
INPUT

VOLTAGE RANGE

180¡«264 VAC 47¡«63Hz£»255¡«373VDC

AC CURRENT

2.5A/230VAC

Efficiency

 86% 88% 88% 89%

INRUSH CURRENT

Cold start current50A/230VAC

LEAKAGE CURRENT

<3.5mA/240VAC
PROTECTION

OVER LOAD

 105%~135%
Protection: Constant current limiting,recovers automatically after fault condition is removed
OVER VOLTAGE 15~17V 30~32V 42~44V 55.2-64.8V
Protection: Constant current limiting,recovers automatically after fault condition is removed
HIGH TEMPERATURE ¡Ý90¡æ¡À10%(JK1)

Protection£ºcut off the output,recovers automatically after fault condition is removed
ENVIRONMENT

WORKING TEMP.HUMIDITY

-10¡æ¡«+60¡æ£»20%¡«90%RH

STORAGE TEMP.HUMIDITY

-20¡æ¡«+85¡æ£»10%¡«95%RH non-condensing

VIBRATION

10¡«500Hz, 2G 10min./1 cycle,period for 60min, each along X, Y, Z axes
SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC
STANDARD

SAFETY STANDARDS

EN61347-1 EN61347-2-13 EN62384 IP67

EMC Standards

EN55015 EN61547 EN 61000-3-2/3 EN61000-4-2/3/4/5/6/8/11
OTHERS

Dimension

215*120*56(L*W*H)

PACKING

2.1kg/9pcs/20kg/1.08CUFT
NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
