MODEL:HVH-30N Single Output Waterproof Power Supply

Features:
High effectiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequncy: 65KHz
Suitable for LED lighten and moving sign applications.
1 year warranty

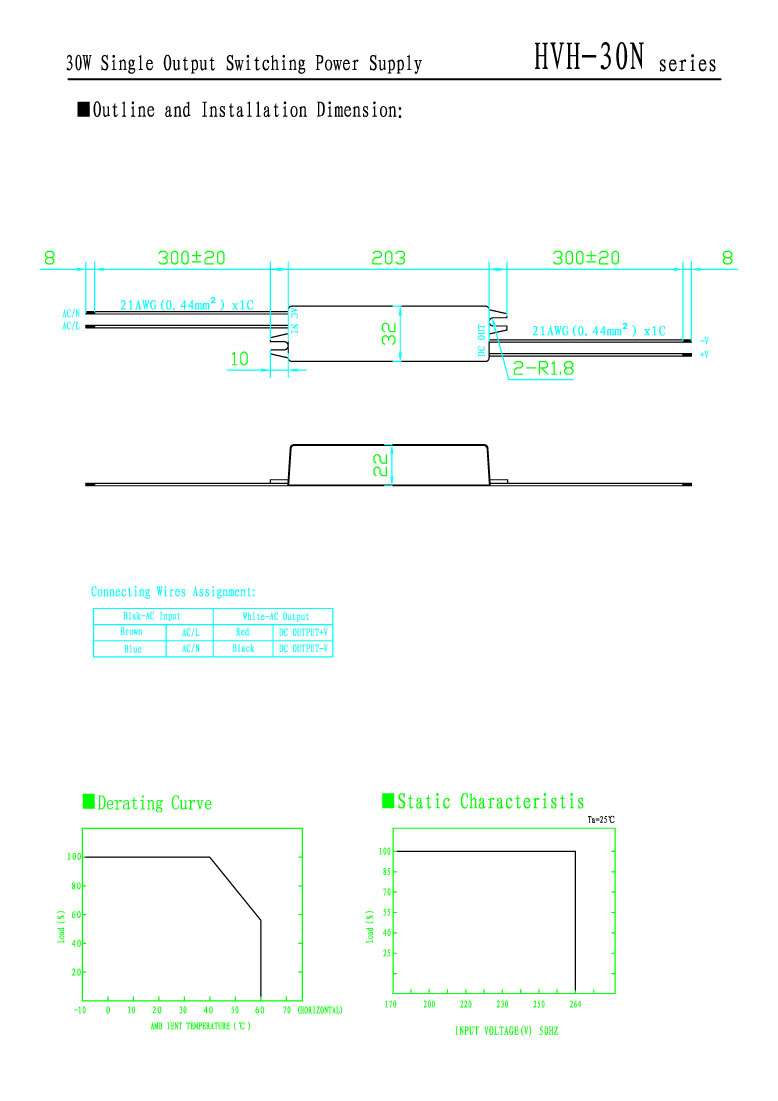

Dimensions: 203*32*22mm £¨L*W*H£©

Shell code£ºH063

MODEL

 HVH-30N-12 HVH-30N-24 HVH-30N-36
OUTPUT

DC Voltage

 12V 24V 36V

Voltage Tolerance(note 3)

 ¡À1% ¡À1% ¡À1%

Rated Current(note 5)

 2.5A 1.3A 0.8A

Current Range

 0-2.5A 0-1.3A 0-0.8A

Rated Power

 30W 31W 29W

Ripple & Noise(note 2)

 100mVp-p 100mVp-p 150mVp-p

Setup, Rise, Hold Time

800ms,20ms,24ms/230VAC

INPUT

Voltage Range

170¡«264 VAC 47¡«63Hz£»235¡«373VDC

AC Current

0.42A/230VAC

Efficiency

 78% 80% 82%

Inrush Current

COLD START 30A/230VAC

Leakage Current

<0.5mA/240VAC

PROTECTION

Over Load

 105%~135%
Protection£ºHiccup mode,recovers automatically after fault condition is removed
OVER VOLTAGE 135%¡«150%
Protection£ºHiccup mode,recovers automatically after fault condition is removed
HIGH TEMPERATURE >150¡æ

Protection£ºcut off the output,recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min../1cycle£¬period for 60 min£¬each along X.Y.Z axes
SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD

Safety Standard

EN61347-1 EN61347-2-13 IP67

EMC Standard

EN55015 EN61547 EN61000-3.4 CLASSB

OTHERS

Weight

203*32*22£¨L*W*H£©

Packing

0.24kg/80pcs/20kg/0.029m3

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
